1200C Max Four-Zone Split Tube Furnace: 47"L Heating zones & Optional 8", 10", or 14" ID Tube - 1200C Max - OTF-1200X-IV-X

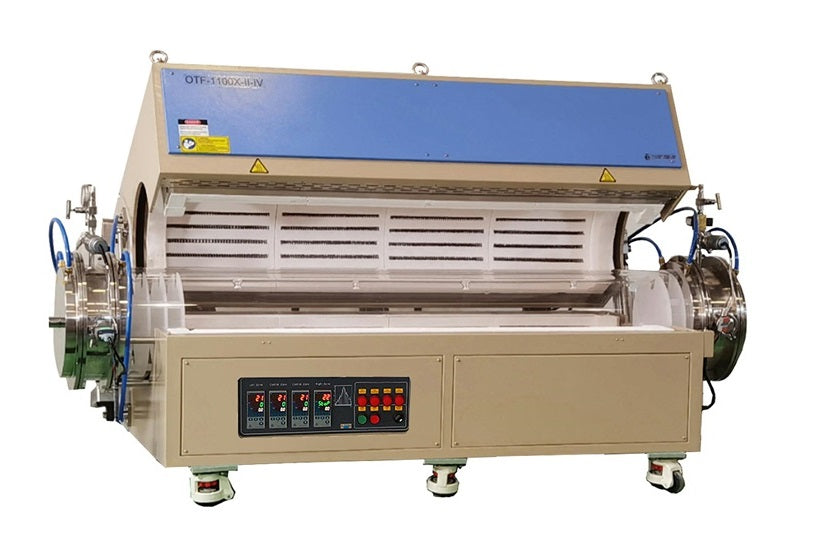

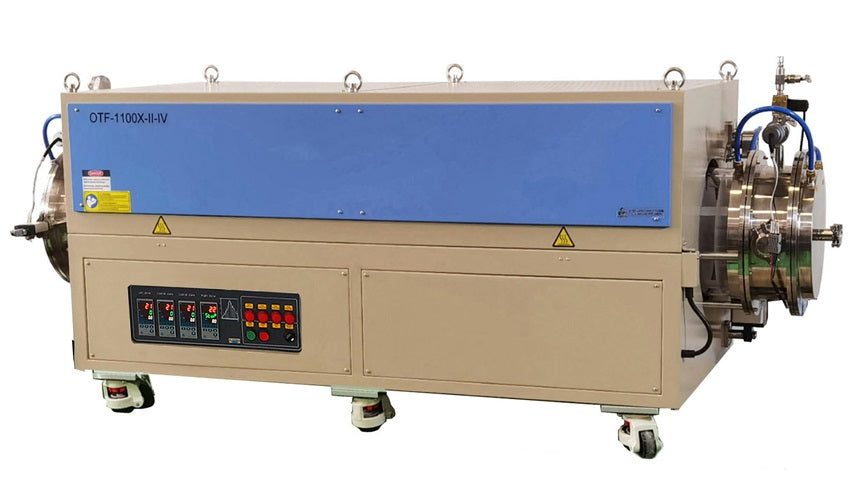

OTF-1200X-IV-X is a large split-able four-zone tube furnace with a 47" L heating zone and optional 8", 10" and 145 ID quartz tubes up to 1200°C. The multiple zones tube furnace is enabled to create a 36 "L uniform temperature zone within +/- 2ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.

SPECIFICATIONS:

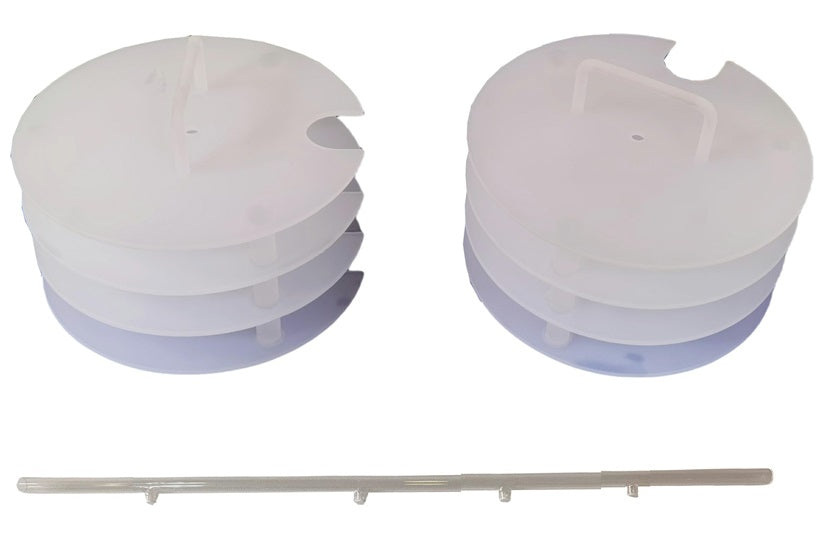

Furnace Structure			Double-layer steel case with two cooling fans, which ensure low surface temperature; Energy-saving high-purity fibrous alumina insulation; Buffer types of thermal blocks made of quartz discs are included for better cleanness.  Two pneumatic cylinders drive the top split cover to make operation easy.  You may click the pictures below to choose a crucible or wafer boat                Click here to choose a crucible
Power			AC 208-240V Three Phase, 50/60 Hz (50A breaker required) Power consumption: 24 KW Max. The power cord is included without a plug

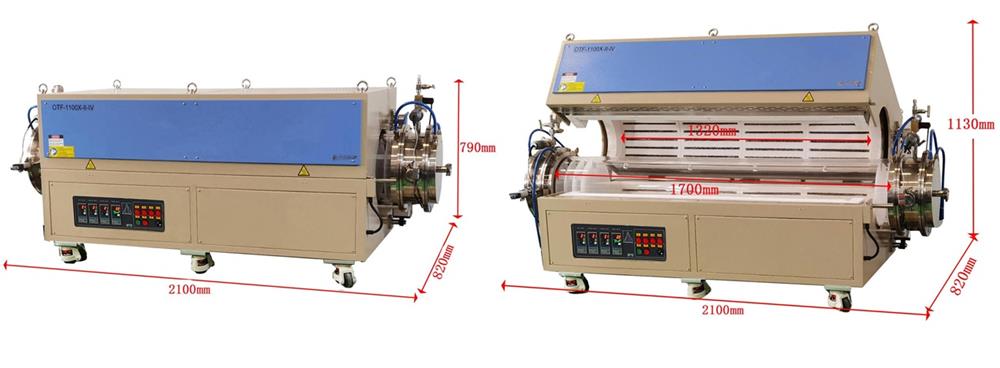

Heating Zone Length			4 heating zones: 1200mm (47") in total 300mm (11.8") for each zone
Quartz Tube & Sealed flange			Quartz Tube is optional from 8" ID to 14,5" IN as below 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 1524L mm) 11"OD x 10.6"ID x 51"L （279 OD x 269 IDx 1295Lmm) 15"OD x 14.6" x 73"L (381 OD x 371 IDx 1860L mm) One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included 2 needle valves are installed with a flange One Vacuum/ pressure gauge is installed on one side flange The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump. Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5) Pic. 1  Pic.2 Pic.3 Pic.4 Pic.5
Heating Temperature	Max. Heating Temperature: 1200°C Continuous Heating Temperature: 1100°C < 1000°C under vacuum Max. Heating Rate: 10°C/min

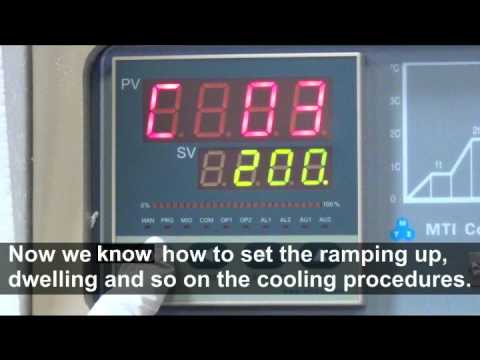

Temperature Controller	3 digital temperature controllers certified by MET and CE Certified PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time. Built-in overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. RS485 Communications Port. Optional: A PC may operate the furnace by installing a control module. Please order an MTS-02 control module at an extra cost.  If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.
Eurotherm Temperature Controllers (optional upgrade)	Eurotherm 3000 controller is available upon request  Temperature Accuracy: ± 0.1ºC Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Laptop, software & WIFI Control(Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) Labview Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available at extra cost.
