Furnace Heating Module for OTF-1200X-S - O1200SMD110
  • Furnace Heating Module for OTF-1200X-S - O1200SMD110
  • Furnace Heating Module for OTF-1200X-S - O1200SMD110
Furnace Heating Module for OTF-1200X-S - O1200SMD110

Furnace Heating Module for OTF-1200X-S - O1200SMD110

SKU: otf-1200x-s-module

Price: RFQ

Specifications

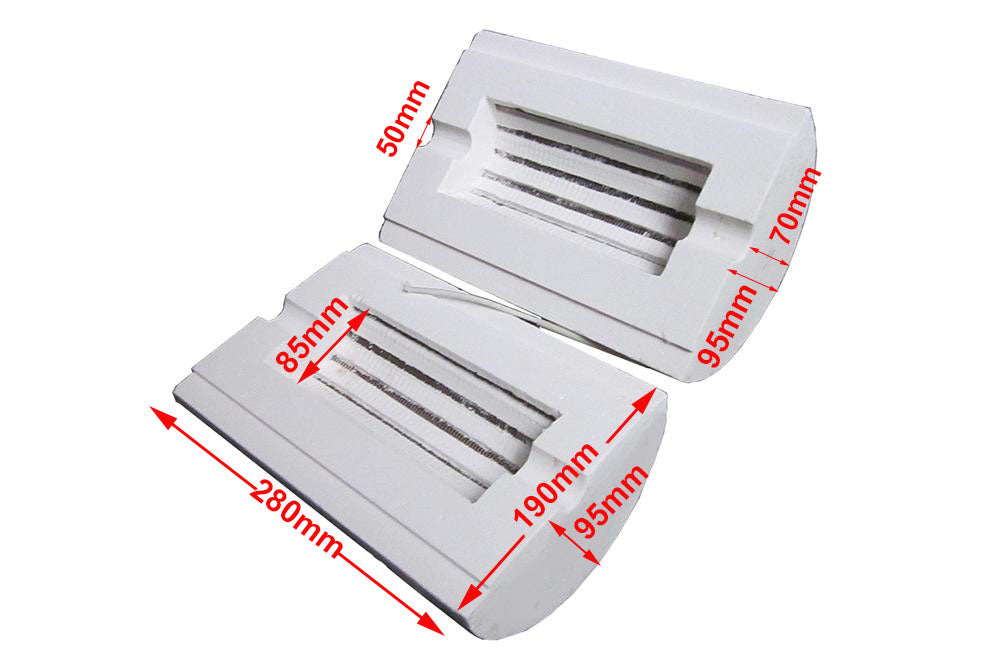

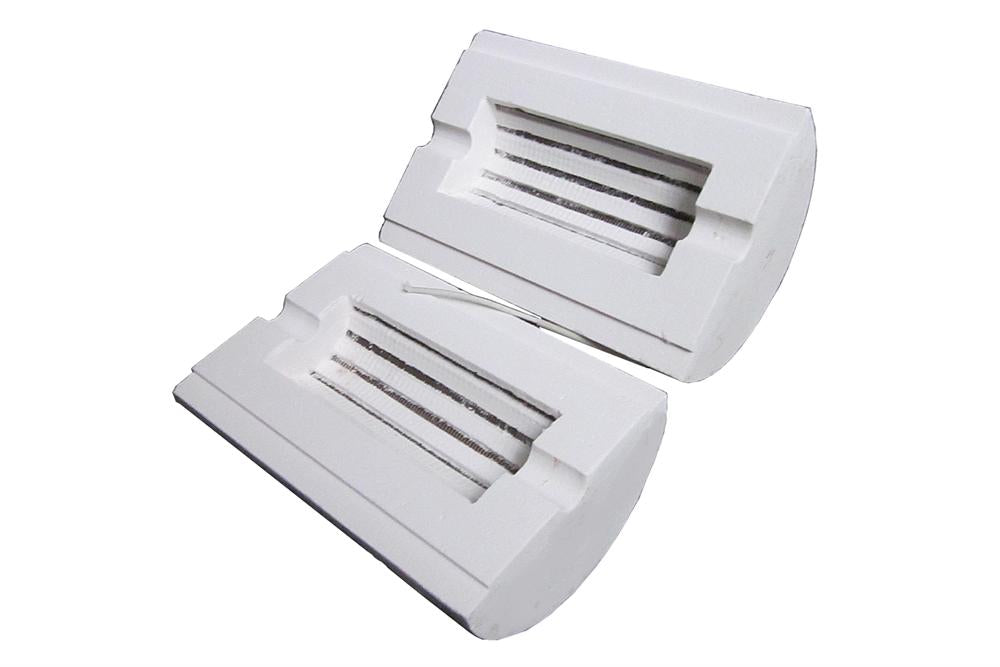

 This furnace module (liner&heating elements inside) is designed for easy replacement of the OTF-1200X-S liner and heating elements. Material:                              Fiberous Alumina chamber with heating coils embedded Heating Element:                  Ni-Cr-Al resistance wire Max. working remperature:   1200oC Standard tube szie : 2" ( 50 mm ) Customize Tube size : 1" ( 25 mm ) Please select the Voltage of your furnace from the options bar. (click the picture to enlarge) Here is a guide for Replacement of Heating Module.
