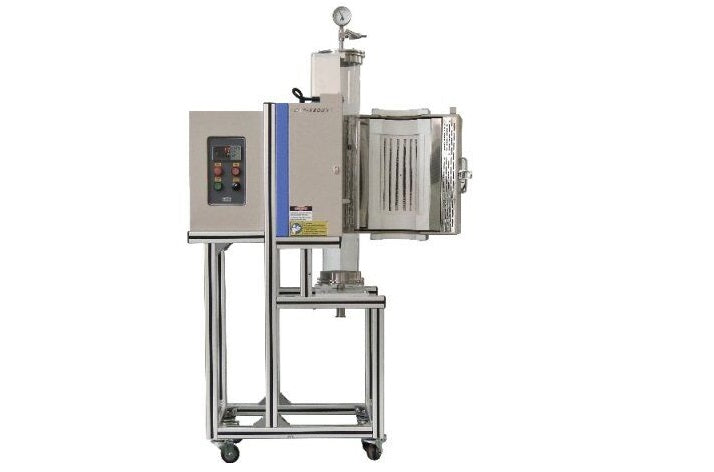

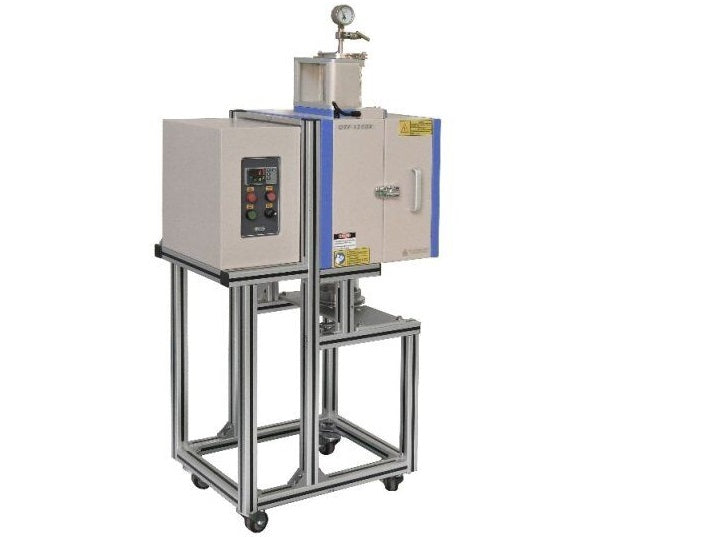

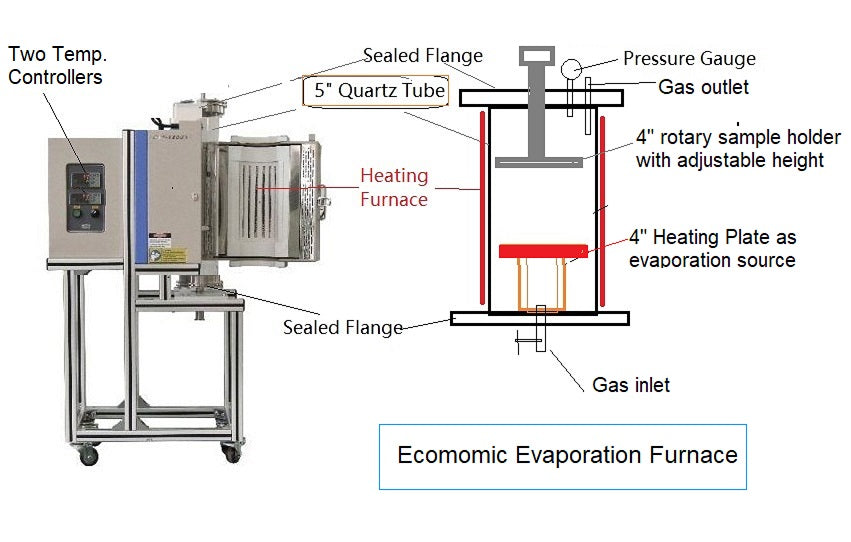

OTF-1200X-S-VT-5 is a compact 5" Vertical Tube Furnace with vacuum-sealed flanges. It provides fast heating under vacuum or flowing gas atmospheres. A precision temperature controller can provide up to 30 segments of the heating, cooling, and dwelling steps with +/- 1 o C accuracy. It is an ideal furnace for carrying out quenching tests or modifying it into a CVD and PVD coating furnace.

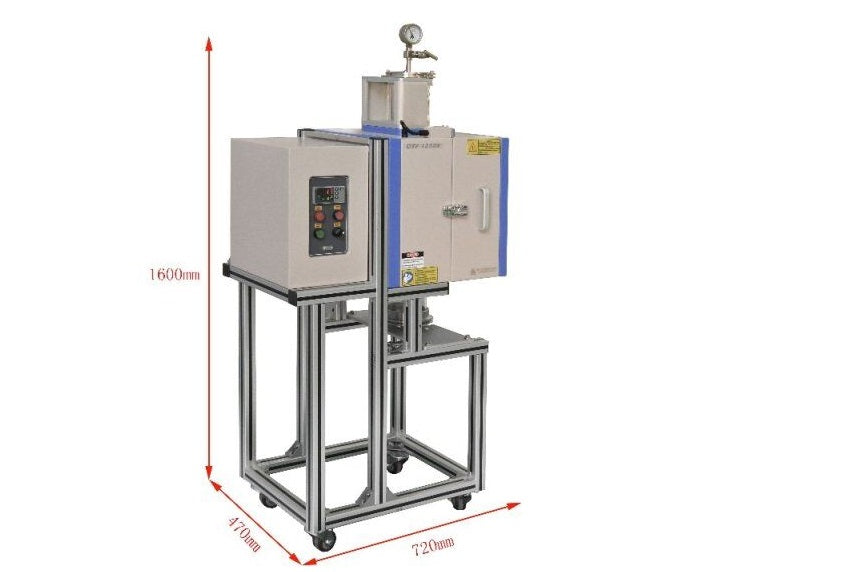

Furnace Casing
  • Double-layer steel structure with air cooling
  • Split door design for easy installation of tube
  • High purity Al2O3 fibrous insulation designed for maximum energy saving
  • Aluminum frame for easy operation

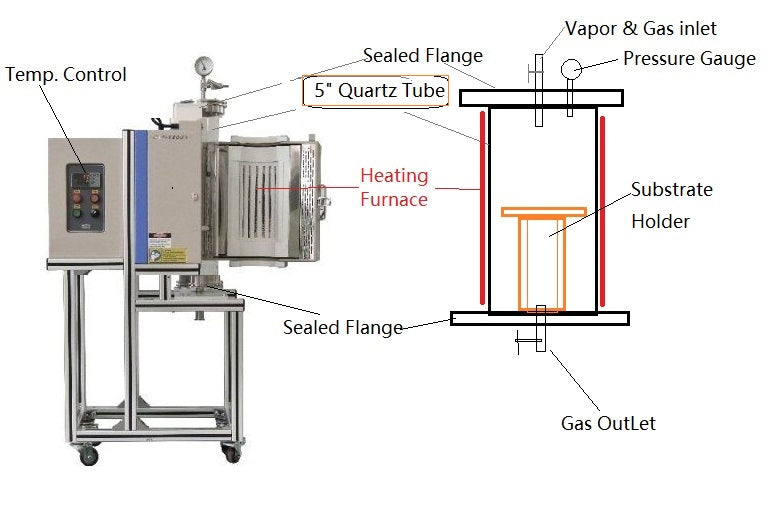

  • May be modified into a CVD or vapor phase polymerization furnace upon request at the extra cost.


Power

3 KW

Voltage

208 - 240VAC, Single Phase, 50/60 Hz

Max. Temperature

1100oC ( < 1 hour )

Continuous Temperature

1100oC

Max. Heating Rate

<= 15 oC /min

Tube Size and Materials

Fused quartz tube Φ130 (OD× Φ120ID× 750L, mm

Heating Zone Length

300mm (single zone)
Constant Heating Zone 100mm (+/-2oC)

Temperature Controller
  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • Eurotherm 3000 controller is available with +/- 0.1oC accuracy
Heating Elements
Fe-Cr-Al Alloy doped by Mo
VacuumSealing
  • Two stainless steel flanges with vacuum gauge and valves included
  • A hook ring is welded inside of the top flange for hanging samples or crucibles by wire
  • You may order an optional 2" flange (for 50mm O.D. tubes only) with 1/4" feedthrough port for inserting a thermocouple or rod

Fitting Ports


Vacuum Level


Vacuum pump and high vacuum station
  • 10-2 Torr by the mechanical pump
  • 10-5 Torr by turbopump
  • Please click the picture left column to order the vacuum pump separately.

Laptop & software (Optional)


  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) \
  • Labview-Based Temperature Control System (MTS01)enables a user to edit temperature profiles, manage heat-treatment recipes, record, and plot data via Laptop
Warning

Click here to learn the installation of a gas regulator
  • Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
  • The quartz tube furnaces only can be used up to 1000°C under vacuum pressures
