SKU: otf-1200x-vgq-60

Price: RFQ

Description

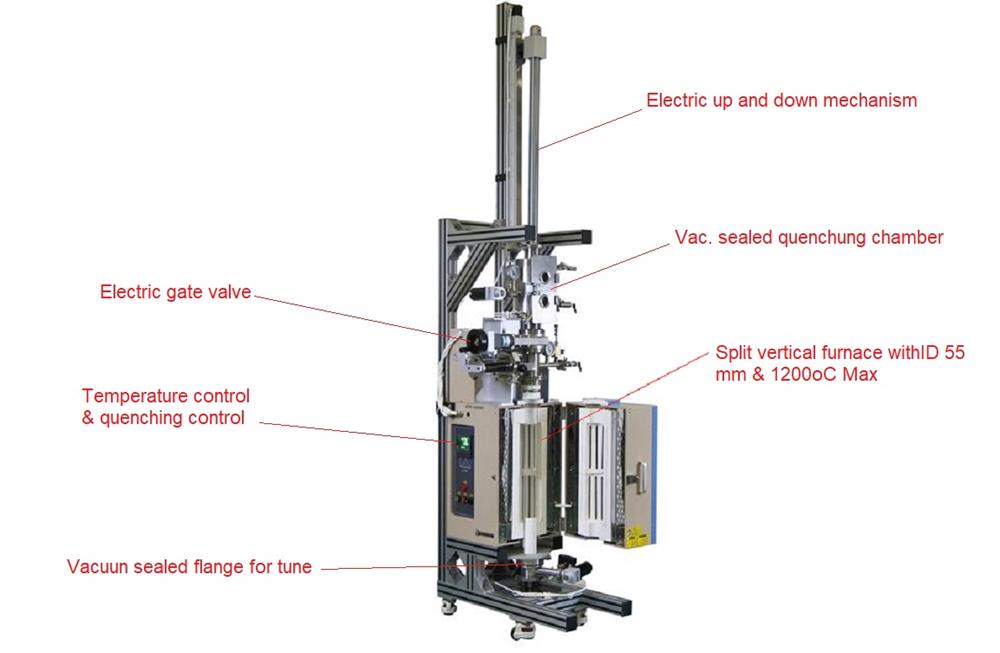

OTF-1200X-VGQ-60 is an automatic gas quenching furnace with an ID 55mm quartz tube and 1200oC max working temperature. It consists of a heating furnace, gas quenching chamber, inert gas injection mechanism. . Automatic procedure included placing a sample into the gas quenching chamber, automatically heating as a program, gas replacement, returning to the gas quenching chamber, and injecting inert gas to quickly cooling.

SPECIFICATIONS

Furnace Structure
  • Double-layer steel structure with air cooling
  • High purity polycrystalline alumina fiber chamber

Power
  • AC 208 - 240V Single Phase, 50/60 Hz
  • 3.5 KW
  • Cable is included without plug

Rated temperature

1100oC

Max. Temperature

1200oC < 30 min

Continuous Temperature

100oC < continuous

Heating Rate

Recommended: <= 10oC /min

Tube Size and Materials

Quartz tube: OD 60 x OD 55 x 800 mm

Heating Zone

Heating Zone length: 400mm
Temperature Controllers
  • Eurotherm 3000 Programmable Temperature Controller
  • PID automatic temperature control system
  • 24 programmable process segments
  • DB9 PC communication port
  • +/- 0.1 ºC temperature accuracy
  • All electrical components are approved by UL or MET
  • The pre-configured customized software can automatically record the entire process flow

 Vacuum Level
  • Mechanical Pump (Separate Purchase): < 1e-2 torr
  • Molecular Pump (Separate Purchase): <1e-5 torr
NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD    33 L/s Compact Turbo Vacuum Pump System with Gauge, Valve & SS Bellows - Made in Germany - PV-HVS-LD

Application Notes
  • Maximum pressure: <0.02Mpa, otherwise, an explosion may happen.
  • The gas cylinder Must be equipped with a relief valve
  • Use extreme caution to monitor and adjust the pressure (<0.02Mpa) while heating, otherwise, an explosion may happen.
