1500°C SiC Electric Heating Element (413 mm L) -O1500HE413
  • 1500°C SiC Electric Heating Element (413 mm L) -O1500HE413
1500°C SiC Electric Heating Element (413 mm L) -O1500HE413

1500°C SiC Electric Heating Element (413 mm L) -O1500HE413

SKU: otf1500-hel-413

Price: RFQ

Specifications

 1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600 o C up to 1500 o C in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperature

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continous working temperature 1400oC
  • Replace heating element for MTI OTF-1500X series tube furnace. (16 heating elements are needed for OTF-1500X-UL or OTF-1500X-II-UL, 24 heating elements for OTF-1500X-III-UL)

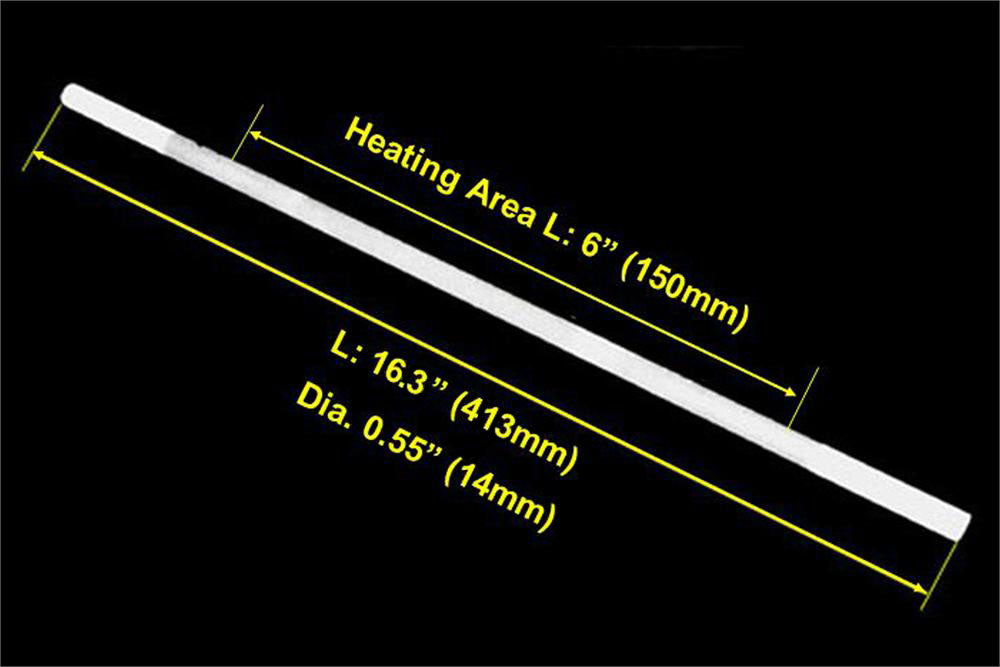

  • Dimension:
    0.55"(14mm) Dia.
    6" (150mm)  heating zone
    16.3” (413 mm)  overall length

  •    Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.
