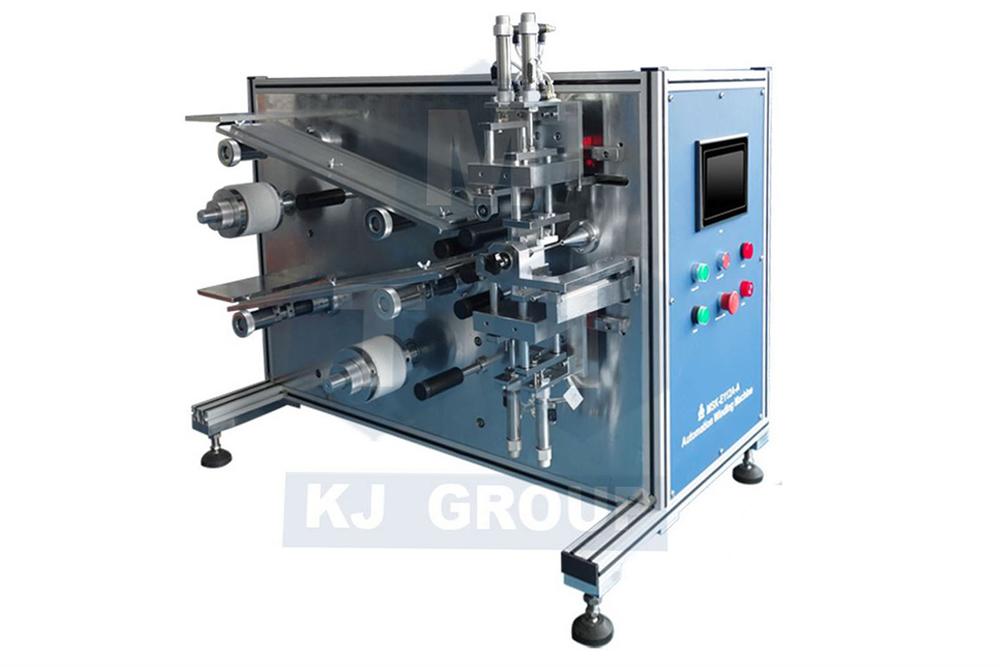

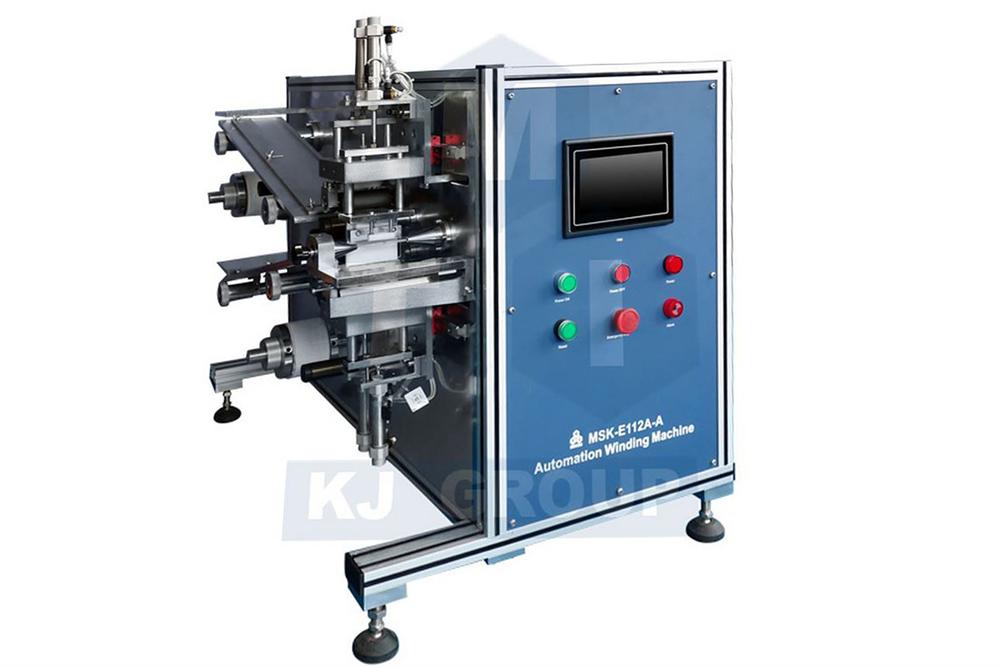

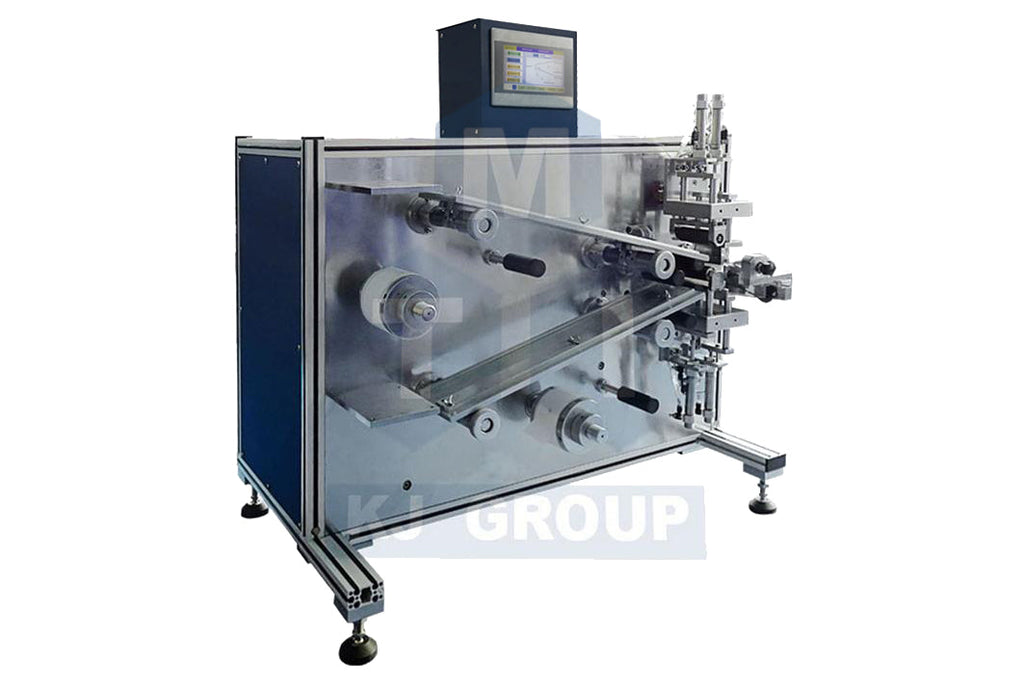

Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES
  • Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES
  • Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES
  • Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES
Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES

Precision Automatic Winder for Electrode Assembly of Pouch/Prismatic Cell - MSK-112A-ES

SKU: precision-automatic-winder-for-electrode-assembly-of-winding-type-pouch-cell-msk-112a-es

Price: RFQ

Specifications

 MSK-112A-ES a new semi-automatic winding machine for accurate assembly of flat pouch/prismatic cell electrode core. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic pouch cell core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality windings of electrode cores. Outstanding Features: PLC Touch Screen Control Unreeling rotors for separator film feeding Vacuum assist 1200mm long feeder bed for accurate cathode/anode sheet positioning & feeding Passive tension control; tension is adjustable Automatic finish cut after the completion of jelly roll winding The device can be placed into a glovebox and operated in inert gas MTI has granted the patent 201920397543.X for the Pouch Cell Winding Machine MSK-112A-ES since October 2019. SPECIFICATIONS: Working Voltage S ingle-phase 220VAC, 50/60Hz (to operate at 110V, we may add a 1500W transformer) Max. Power Consumption 1KW Cathode / Anode Winding Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on... Anode: Copper foil coated with graphite Thickness Range: 100~300um Suggested Overall Length: <1200mm Maximum width: 70mm Separator Winding PP or PE Thickness Range: <100um Max. adaptable size: Thickness: < 10 mm Width: 30 - 80 mm Length: 30 - 100 mm Winding Rod 3.5mm O.D Electrode Winding Size 14 - 32mm O.D 25 - 70mm L Winding Accuracy Edge Evenness: <0.5mm Tension Control <150g adjustable Winding Width Manually adjustable 25 - 70mm Winding Speed 0 - 400 RPM adjustable Feeder Bed 1200mm Long Compressed Air Requirement 0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included . please click here to order or order from your local hardware store) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator . pic1 pic2 Product Dimensions L1000mm * W700mm * H900mm Weight 150Kg Warranty One year limited warranty with lifetime support Rusting or damage due to improper storage conditions or maintenance is not covered by warranty Compliance CE certified NRTL certificate is available upon request at extra cost Optional The device can be placed into a glovebox and operated on inert gas Operation Instruction & Video Manual coming soon

Working Voltage Single-phase 220VAC, 50/60Hz
(to operate at 110V, we may add a 1500W transformer)
Max. Power Consumption 1KW
Cathode / Anode Winding
  • Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...
  • Anode: Copper foil coated with graphite
  • Thickness Range: 100~300um
  • Suggested Overall Length: <1200mm
  • Maximum width: 70mm
Separator Winding
  • PP or PE
  • Thickness Range: <100um
  • Max. adaptable size:
  • Thickness: < 10 mm
  • Width: 30 - 80 mm
  • Length: 30 - 100 mm
Winding Rod 3.5mm O.D
Electrode Winding Size
  • 14 - 32mm O.D
  • 25 - 70mm L
Winding Accuracy Edge Evenness: <0.5mm
Tension Control <150g adjustable
Winding Width  Manually adjustable 25 - 70mm
Winding Speed 0 - 400 RPM adjustable
Feeder Bed 1200mm Long
Compressed Air Requirement 0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included. please click here to order or order from your local hardware store)
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.

 pic1           pic2

Product Dimensions L1000mm * W700mm * H900mm
Weight 150Kg
Warranty
  • One year limited warranty with lifetime support
  • Rusting or damage due to improper storage conditions or maintenance is not covered by warranty
Compliance
  • CE certified
  • NRTL certificate is available upon request at extra cost
Optional
    • The device can be placed into a glovebox and operated on inert gas
Operation Instruction & Video
    Manual coming soon
