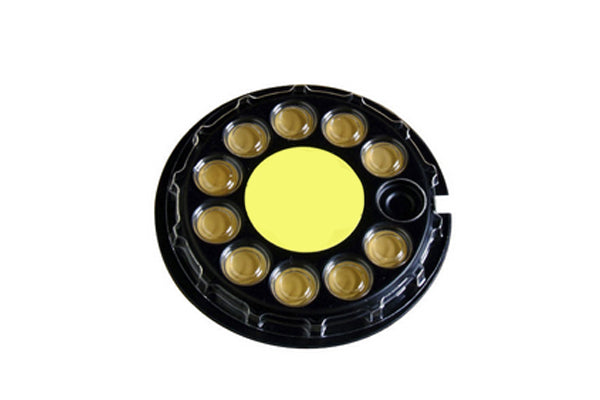

Gold Quartz Crystal For General Application - QC-GOLD-LD
  • Gold Quartz Crystal For General Application - QC-GOLD-LD
Gold Quartz Crystal For General Application - QC-GOLD-LD

Gold Quartz Crystal For General Application - QC-GOLD-LD

SKU: qc-gold-ld

Price: RFQ

Specifications

 Dimension 14 mm Dia. Electrode Material Gold Sensor and Monitor MTI thin film thickness monitor - EQ-TM106-LD Life Time Quartz crystals are consumable parts, no warranty of any kind Please note the crystal life form the t hickness monitor Typical Applications Good for most applications (no high heat loads or high stress) DC Sputtering RF Sputtering Thermal Evaporation Ion Plating Anticorrosive Coating Application Notes Choose the quartz crystal with the right electrode material for your application - gold, silver, alloy : Recommend gold electrode crystals for most applications Silver electrode crystals work well for processes with high heat loads, such as sputtering Alloy electrode crystals are recommended for high-stress deposition, such as optical coating with dielectric materials and semiconductor processes with high-stress materials

Dimension
  • 14 mm Dia.
Electrode Material
  • Gold
Sensor and Monitor
Life Time
  • Quartz crystals are consumable parts, no warranty of any kind
  • Please note the crystal life form the thickness monitor
Typical Applications
  • Good for most applications (no high heat loads or high stress)
  • DC Sputtering
  • RF Sputtering
  • Thermal Evaporation
  • Ion Plating
  • Anticorrosive Coating
Application Notes
  • Choose the quartz crystal with the right electrode material for your application - gold, silver, alloy:
    • Recommend gold electrode crystals for most applications
    • Silver electrode crystals work well for processes with high heat loads, such as sputtering
    • Alloy electrode crystals are recommended for high-stress deposition, such as optical coating with dielectric materials and semiconductor processes with high-stress materials
