Quartz Tube Nozzle (6 mm Dia.) for Atomizing Spray up to 1100°C - TQ6D-SP

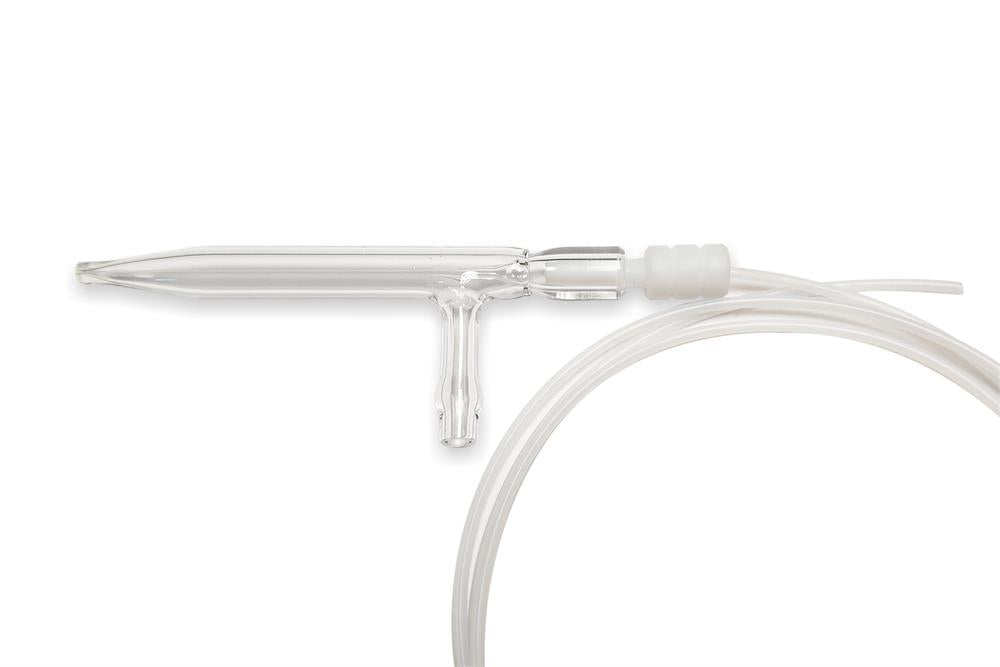

TQ6D-SP Series are atomizing spray nozzles made of a quartz tube with max. working temperature 1100ºC. The tube diameter is 6 mm, which can feed through 1/4" fitting into a furnace. It is an ideal tool for DIY of pyrolysis spraying or particle granulation devices for high temperatures.

Features	Made of the high purity of quartz tube with compressive gas inlet and liquid inlet 4 mm OD liquid inlet port  with plastic fitting and  PTEF tube ( 1.3mm OD x 0.3 mm ID x 880 mm L)  4 mm OD gas inlet  which can pass 0.2 MPa Max pressure to deliver liquid atomizing without pump  (~ 4mm ID rubber tube and clamp are required) Well packed in a box for safe delivery and storage
Atomizing Nozzle	Spray nozzle diameter:       0.3 mm Max. working temperature: 1100ºC Max. working pressure:       0.2 MPa Atomizing injection rate:      Dependedn on gas pressure or control by syringe pump as the below

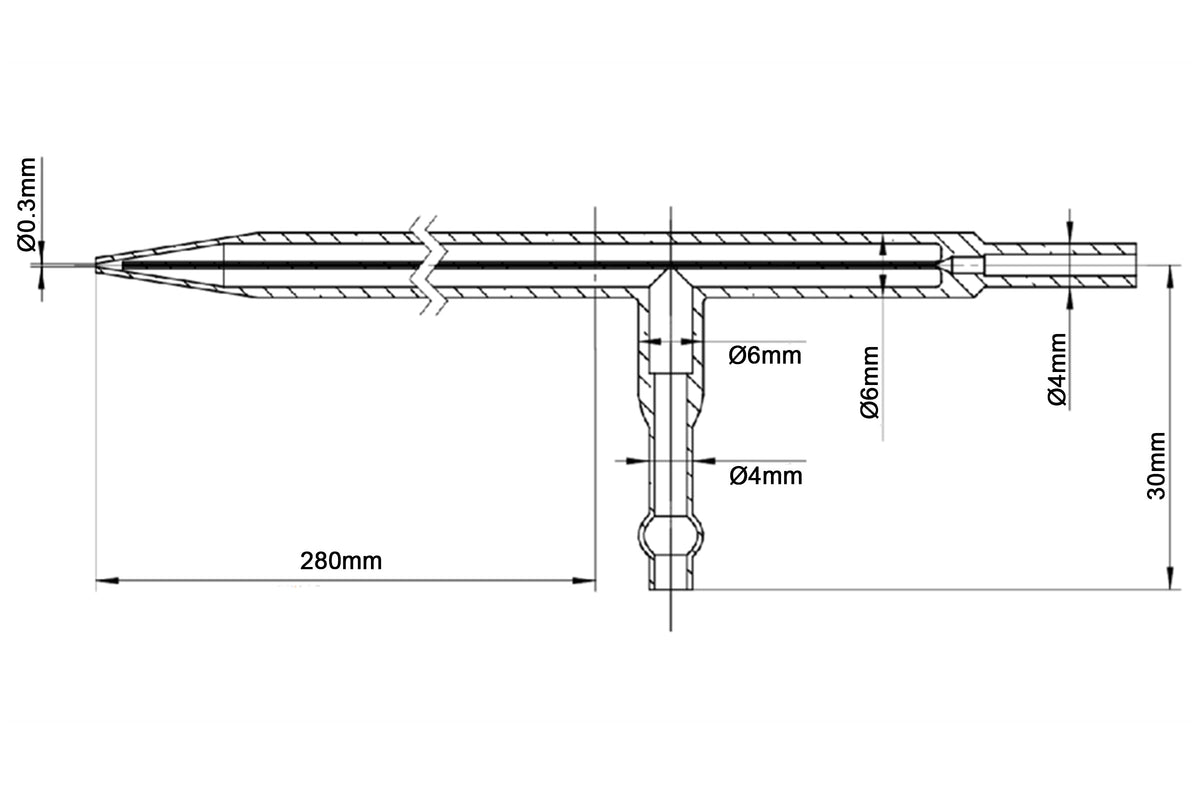

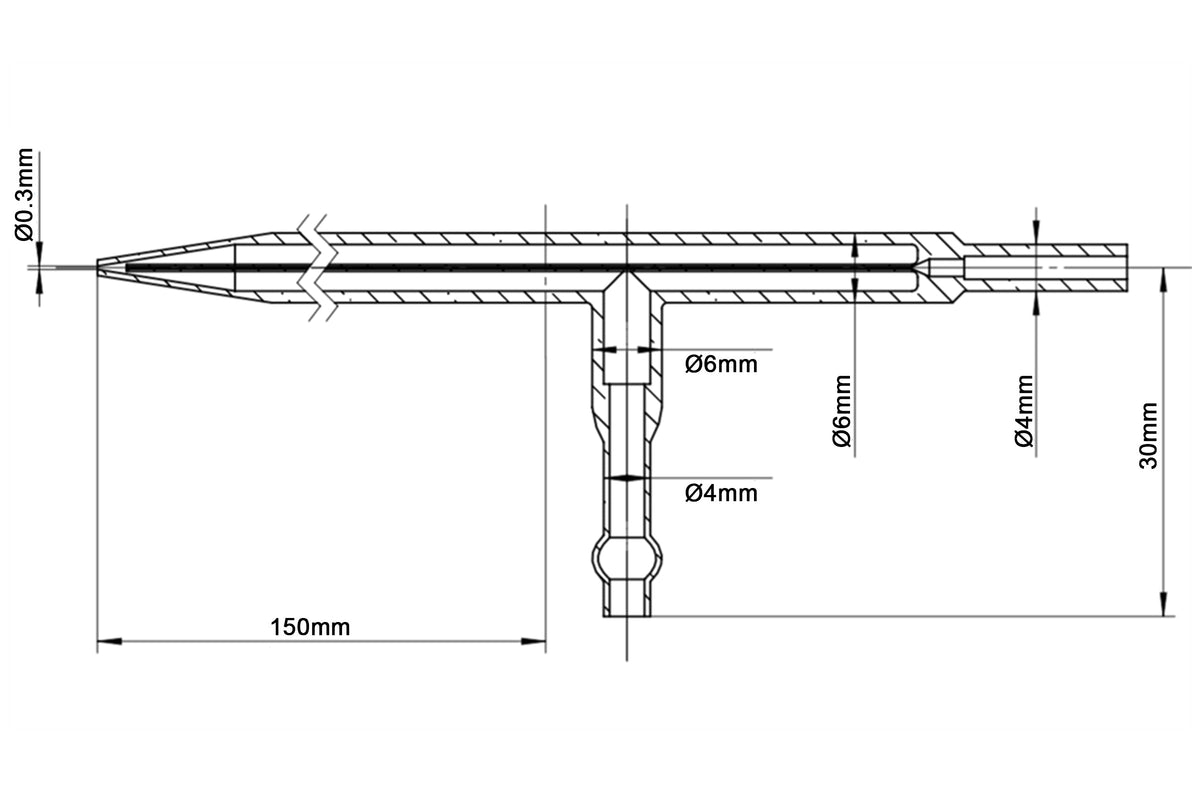

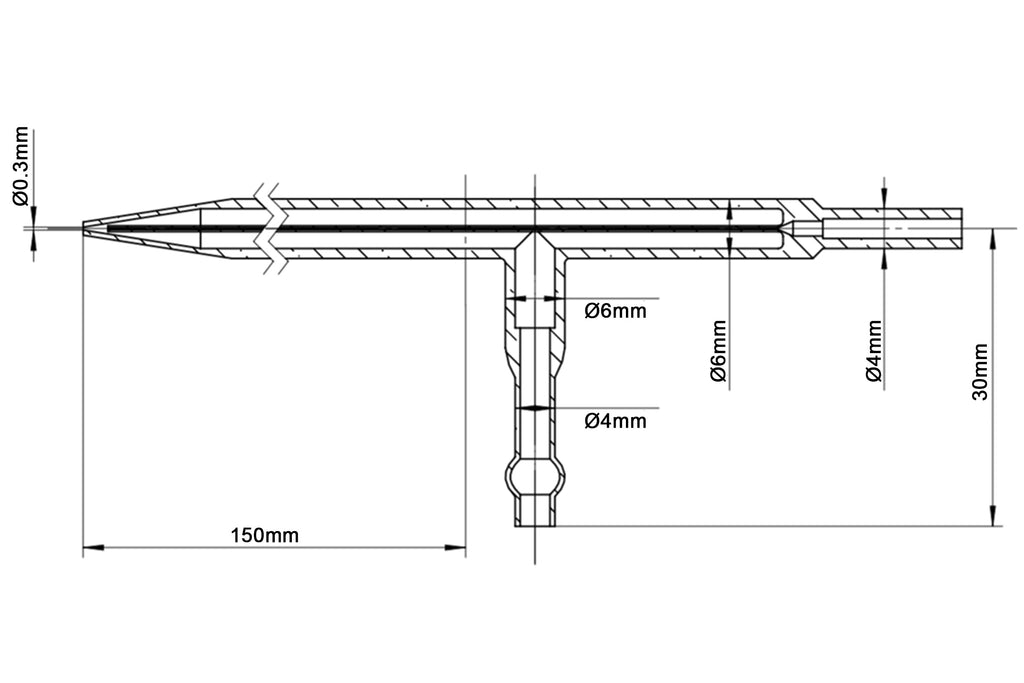

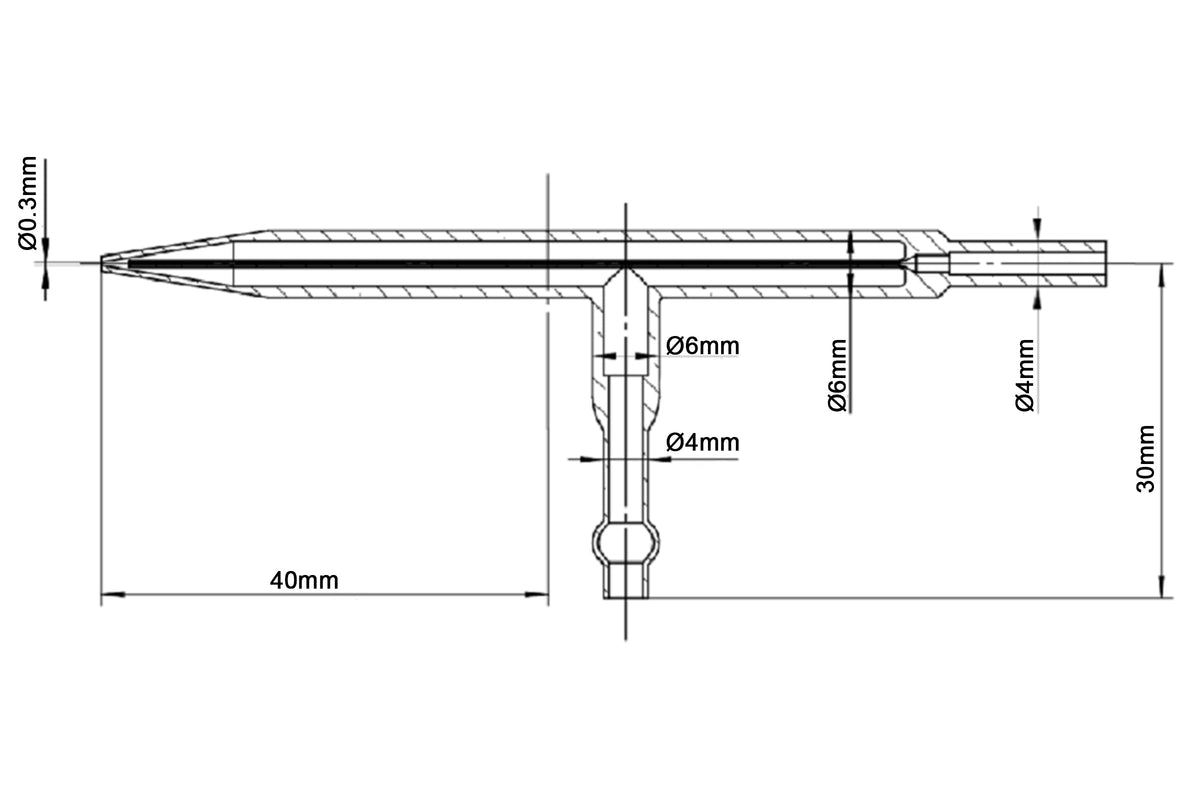

Dimension	Standard size: 40 mm length  Optional:   150mm L and 280 mm L Please choose from the product option
Optional	1/4" fitting Water cold flange Bubbler for liquid
Operation Video	40 mm L nozzle        280 mm L nozzle
