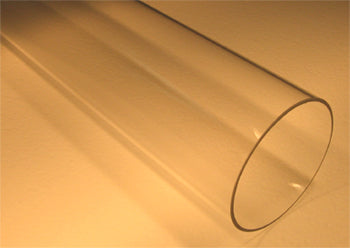

Quartz Tube: 152 OD x 143 IDx 1300L mm (6"x 51") for DIY Tube Furnace - TQ6D1300
  • Quartz Tube: 152 OD x 143 IDx 1300L mm (6"x 51") for DIY Tube Furnace - TQ6D1300
  • Quartz Tube: 152 OD x 143 IDx 1300L mm (6"x 51") for DIY Tube Furnace - TQ6D1300
Quartz Tube: 152 OD x 143 IDx 1300L mm (6"x 51") for DIY Tube Furnace - TQ6D1300

Quartz Tube: 152 OD x 143 IDx 1300L mm (6"x 51") for DIY Tube Furnace - TQ6D1300

SKU: qztube-6-1300

Price: RFQ

Specifications

 MTI Corporation provides the high purity quartz tube as the replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperature up to 1200ºC . Purchase Notes: Please make sure the specification of the tube meets your need before making a purchase. Since Nov 10, 2016, we no longer accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, nor covered under the warranty (Consumables) . We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us . SPECIFICATIONS O.D. 152mm ± 0.5mm (5.98") I.D. 143mm ± 0.5mm (5.63") Tube Length 1300mm (51.18") Max. Operating Temperature 1200 ºC Application Notes In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead of loading sample directly inside the tube, please click the picture below to choose one crucible boat: For MTI 6 inch and Up tube Furnace, overtighten the tube may cause the crack on the tube, please always use the Manual torque wrench for the flange. Inspect your delivery: Please check package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D. 152mm ± 0.5mm (5.98")
I.D. 143mm ± 0.5mm (5.63")
Tube Length 1300mm (51.18")
Max. Operating Temperature 1200ºC
Application Notes
  • In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead of loading sample directly inside the tube, please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )

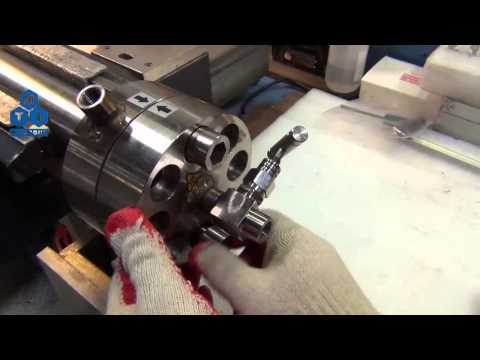

  • For MTI 6 inch and Up tube Furnace, overtighten the tube may cause the crack on the tube, please always use the Manual torque wrench for the flange.
