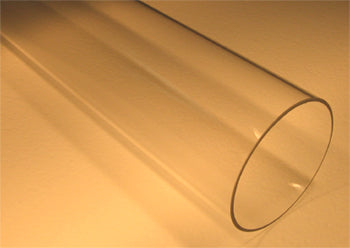

Quartz Tube: 4.33" O.D x 4.05" I.D x 29.13" Length for DIY CVD Tube Furnace - QZTube-SF
  • Quartz Tube: 4.33" O.D x 4.05" I.D x 29.13" Length for DIY CVD Tube Furnace - QZTube-SF
Quartz Tube: 4.33" O.D x 4.05" I.D x 29.13" Length for DIY CVD Tube Furnace - QZTube-SF

Quartz Tube: 4.33" O.D x 4.05" I.D x 29.13" Length for DIY CVD Tube Furnace - QZTube-SF

SKU: qztube-sf

Price: RFQ

Specifications

 MTI Corporation provides the high-purity quartz tube as the replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperature up to 1200ºC . Notes: Please make sure the specification of the tube meets your need before making a purchase. Since Nov 10, 2016, we don't accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, nor covered under the warranty. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us . SPECIFICATIONS O.D 110mm ±0.5mm (4.33") I.D 103mm ±0.5mm (4.05") Tube Length 740mm ±1.0mm (29.13") Max. Operating Temperature 1200 ºC Application Notes This quartz tube is specially designed for our OTF-1200X-4-SF-UL tube furnace In order to get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat: Inspect your delivery: Please check package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.

O.D 110mm ±0.5mm (4.33")
I.D 103mm ±0.5mm (4.05")
Tube Length 740mm ±1.0mm (29.13")
Max. Operating Temperature 1200ºC
Application Notes
  • This quartz tube is specially designed for our OTF-1200X-4-SF-UL tube furnace
  • In order to get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
