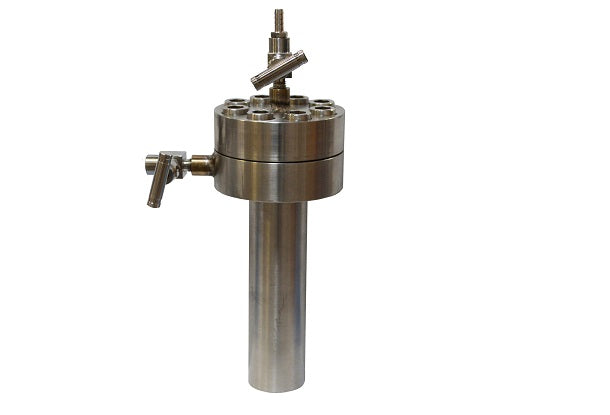

Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional 300ml & 500ml - RC-Ni500-V
  • Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional 300ml & 500ml - RC-Ni500-V
Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional 300ml & 500ml - RC-Ni500-V

Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional 300ml & 500ml - RC-Ni500-V

SKU: rc-ni500-v

Price: RFQ

Specifications

 RC-Ni-V is a compact reactor made of Ni-base Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100°C with a pressure up to 4Mpa under oxygen or inert gasses. It is an ideal tool for preparing advanced material by the hydrothermal method, especially sample heat treatment under high oxygen pressure. SPECIFICATIONS Structure Made of Ni-Based Superalloy (Waspaloy or equivalent) Reactor Capacity & Dimensions 70mm OD x 35mm ID x 300 mm height, 300 mL capacity, for RC-Ni300 70mm OD x 35mm ID x 500 mm height, 500 mL capacity, for OTF-1200X-II-HPV 112 mm OD x 100 mm ID x 280 mm H for GSL-1100X-NI-1500 (Please select the volume in the options bar) working Temperature RT - 1100°C Max. Working Pressure 16.5 MPa (2900 PSI) Max. at 800°C 10 MPa (1740 PSI) Max. at 900°C 5 MPa (870 PSI) Max. at 1000°C 3 MPa (588 PSI) Max. at 1100°C Accessories SS306 needle valve with 1/4 pipe connector included Optional Upgrades ( click picture to review details ) 304SS 1/4" O.D tube fitting - for connecting the reactor to the gas tank via 1/4" SS pipe You may click the picture to order a digit-pressure gauge pressure relief valve for safety operation 300ml 500ml Optional: You may insert the reactor into the vertical furnace with the Temperature controller Warning For your safety, the high-pressure vessel and furnace must be placed inside an explosive-proof box, while under the high-pressure Never face on the top flange to avoid an accident during operation Attention : Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid overpressurizing the furnace chamber and ensure safe operation. Click here to learn the installation of a gas regulator

Structure  Made of Ni-Based Superalloy (Waspaloy or equivalent)
Reactor Capacity & Dimensions
working Temperature RT - 1100°C Max.
Working Pressure
  • 16.5 MPa (2900 PSI) Max. at 800°C
  • 10 MPa (1740 PSI) Max. at 900°C
  • 5 MPa (870 PSI) Max. at 1000°C
  • 3 MPa (588 PSI) Max. at 1100°C
Accessories SS306 needle valve with 1/4 pipe connector included


Optional Upgrades ( click picture to review details )
304SS 1/4" O.D tube fitting -for connecting the reactor to the gas tank via 1/4" SS pipe

You may click the picture to order a digit-pressure gauge
pressure relief valve for safety operation
300ml 500ml
Optional: You may insert the reactor into the vertical furnace with the Temperature controller
Warning
  • For your safety, the high-pressure vessel and furnace must be placed inside an explosive-proof box, while under the high-pressure
  • Never face on the top flange to avoid an accident during operation
  • Attention: Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid overpressurizing the furnace chamber and ensure safe operation. Click here to learn the installation of a gas regulator
,
304SS 1/4" O.D tube fitting -for connecting the reactor to the gas tank via 1/4" SS pipe

You may click the picture to order a digit-pressure gauge
pressure relief valve for safety operation
300ml 500ml
Optional: You may insert the reactor into the vertical furnace with the Temperature controller
