Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150
  • Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150
  • Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150
  • Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150
Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150

Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) - SeKTQ150

SKU: se-ktq-150

Price: RFQ

Description

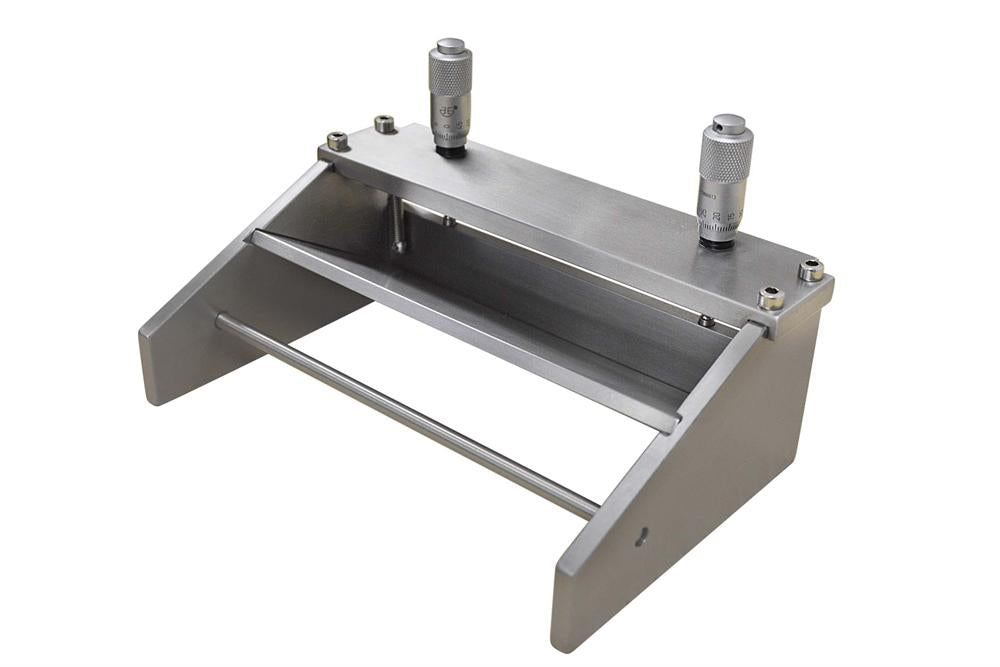

 Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment. The operator sets the blade clearance by adjusting the micrometers. This is an excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at a lower cost. Stainless steel knife blade with a precision ground edge. SPECIFICATIONS: Features 150 mm standard width. Built in the slurry guiding plate to make coating material evenly distributed ahead blade. Make wet film thickness between 10 - 5000 microns. The micrometer head's controllable accuracy is 10 microns. Slurry Capacity: 60 ml. Structure & Dimension Replacement Purchase spare springs or micrometer heads for the replacement here. Optional Upgrade to the digital micrometers for better accuracy, with a customized doctor blade NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit. Digital Micrometer


Features
  • 150 mm standard width.
  • Built in the slurry guiding plate to make coating material evenly distributed ahead blade.
  • Make wet film thickness between 10 - 5000 microns.
  • The micrometer head's controllable accuracy is 10 microns.
  • Slurry Capacity: 60 ml.

Structure & Dimension
Replacement

Optional
  • Upgrade to the digital micrometers for better accuracy, with a customized doctor blade
  • NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit.

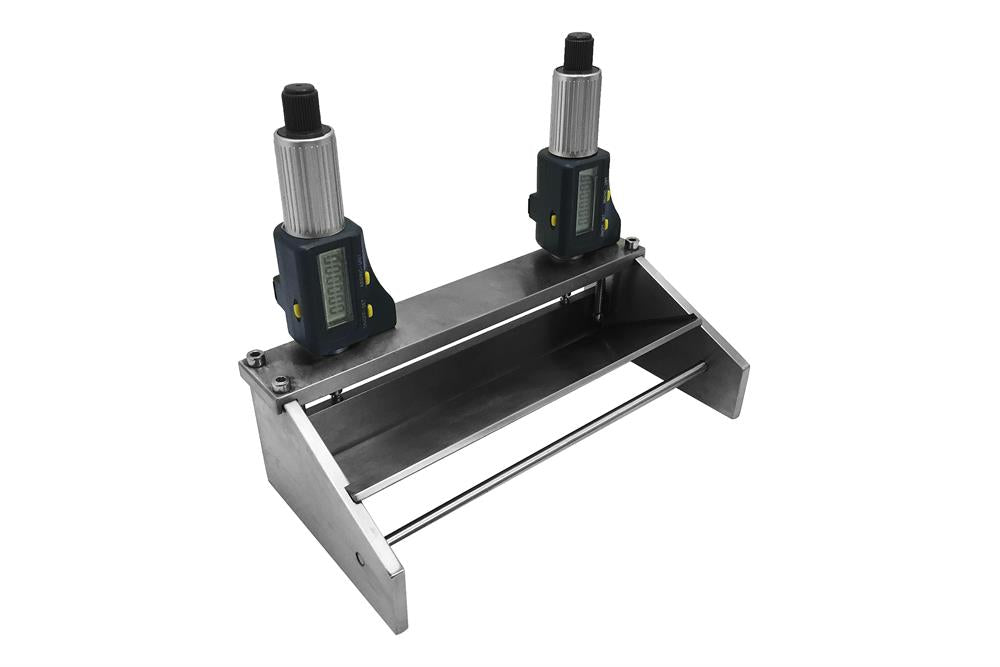

Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
,
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
