SKU: spg30ab

Price: RFQ

Description

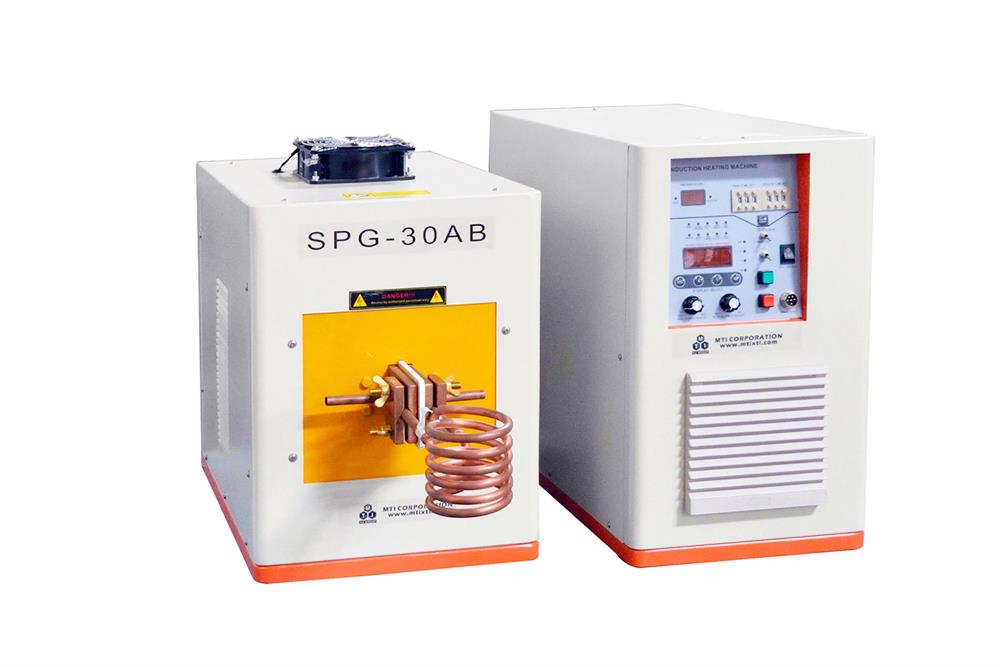

 SPG-30AB is a compact 30KW High-Frequency Induction Heater is designed for quickly heating or melting metallic material. This system can also be modified to a crucible melting furnace with 2" tube and flange. SPECIFICATIONS: Working Voltage 220 +/- 10% VAC, 50/60 Hz, Three Phase (380VAC 50/60 Hz, three-phase is available upon request) Max. Output Power 30 KW (100A power outlet is required) Inductive Current 7 - 70 Amp Adjustable with digital display Output Frequency 80 - 200 kHz, non-adjustable. Duty Cycle 100% Timer Control Automatic timer control or Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Colling Time: 1-99 Seconds Electric Cable The cable length between the transformer station and the working station is 2 meters. Air Cooling Rear Fan Water Cooling Flowrate: > 6 L/Min Pressure: ≥0.2 MPa (29 Psi) Tap water is acceptable, the use of a Recirculating Water Chiller is highly recommended. please review KJ6200 water chiller specs by clicking the picture on the left. Note: Water chiller is not included. Water protection Overpressure and over-temperature protection Induction Coil (Standard Package) Made by 8mm Dia. Copper tube (One Coil 55mmDia. x 80mmH is included) The customized copper coil is available at extra cost ($300/ea) upon request Compliance NRTL or CSA Certification (UL61010-1 & UL499) is available upon request at extra cost. Quartz Tube and Induction Coil (optional) This induction heater also can be used as vacuum crucible induction melting furnace if use 2" quartz tube and vacuum flanges (Please click the picture below to see details): Half Open Quartz Tube is included with dimensions of 50mm(OD) x 44mm(ID) x 300mm(L) KF25 connector and 1000mm long SS pipe for connecting to the vacuum pump Stainless Steel Flange with high-temperature silicone o-ring and self-tighten structure Vacuum pump for evacuating the chamber Application Notes Applications: please click here to learn the Fundamentals of Induction Heating Melting Sintering Annealing Heat treatment Quenching The heater will shut down if over output occurs. Please reduce sample size to keep the heater operating under Max power Please click here to learn how to setup crucible for melting Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared For customization inquiries, please complete the " Customize Induction Heating System Form " and return it to info@mtixtl.com

Working Voltage 220 +/- 10% VAC, 50/60 Hz, Three Phase (380VAC 50/60 Hz, three-phase is available upon request)
Max. Output Power 30 KW (100A power outlet is required)
Inductive Current 7 - 70 Amp Adjustable with digital display
Output Frequency 80 - 200 kHz, non-adjustable.
Duty Cycle 100%
Timer Control
  • Automatic timer control or Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Colling Time: 1-99 Seconds
Electric Cable The cable length between the transformer station and the working station is 2 meters.
Air Cooling Rear Fan
Water Cooling
  • Flowrate: > 6 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, the use of a Recirculating Water Chiller is highly recommended. please review KJ6200 water chiller specs by clicking the picture on the left. Note: Water chiller is not included.
Water protection Overpressure and over-temperature protection
Induction Coil
(Standard Package)
  • Made by 8mm Dia. Copper tube (One Coil 55mmDia. x 80mmH is included)
  • The customized copper coil is available at extra cost ($300/ea) upon request
Compliance
 NRTL or CSA Certification (UL61010-1 & UL499) is available upon request at extra cost.
Quartz Tube and Induction Coil
(optional)

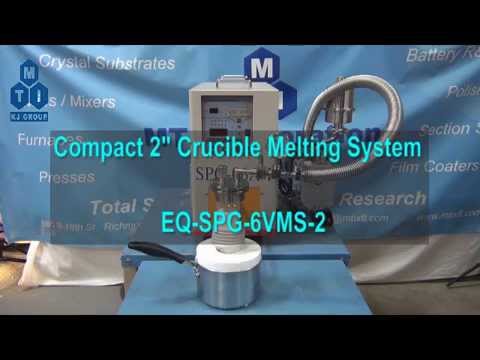

This induction heater also can be used as vacuum crucible induction melting furnace if use 2" quartz tube and vacuum flanges (Please click the picture below to see details):
Application Notes
Melting
Sintering
Annealing
Heat treatment
Quenching
  • The heater will shut down if over output occurs. Please reduce sample size to keep the heater operating under Max power
  • Please click here to learn how to setup crucible for melting
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared
  • For customization inquiries, please complete the "Customize Induction Heating System Form" and return it to info@mtixtl.com
,
