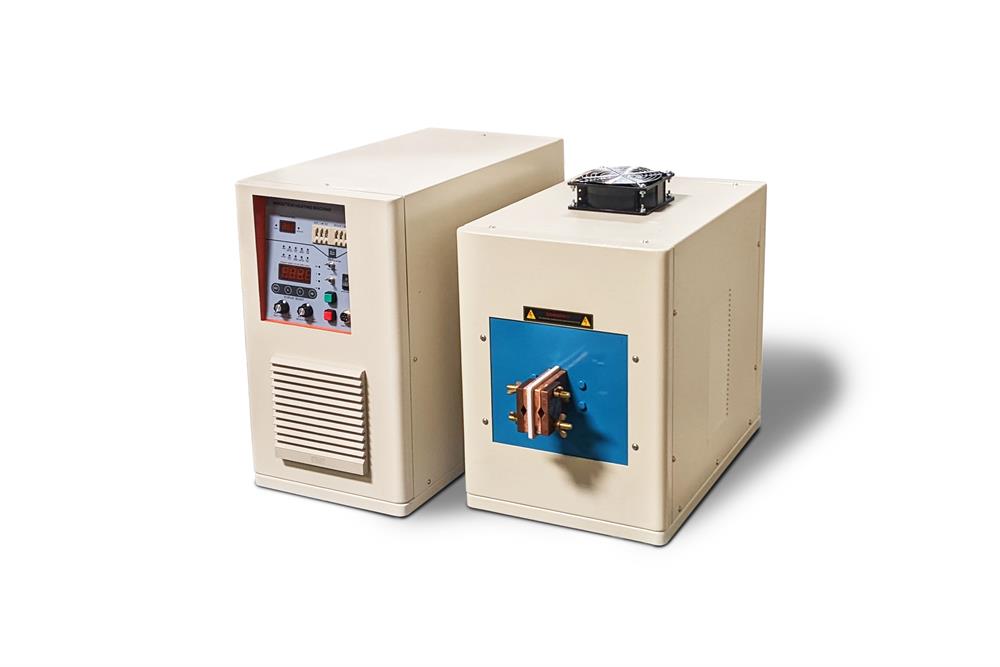

35 KW (30-80 KHz) Desktop Induction Heater w/ Timer Control - SPG50K-35AB

SPG-50K-35AB is a kind of high-frequency heating equipment, which features the latest inverting technology so as to make itself light and convenient. Its 35kW Induction Heater is designed for the material research lab to quickly melt and perform heat treating to metallic materials.

SPECIFICATIONS:

Power	480, 415, or 380 VAC, 3 phase, 50/60Hz, 35 kW
Output Frequency	30-80 kHz
Max. Input Power	35 KW
Duty Cycle	100%
Timer Control	Automatic timer control or Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Cooling Time: 1-99 Seconds
Temperature Control (Optional)	MTC-808 programmable temperature controller 30 temperature segments Choice of different types of thermocouple
Water Cooling (Optional)	Water cooling is required but not included Flowrate: >10 L/Min Pressure: ≥0.2 MPa (29 Psi) Water cooling inlet and outlet Water temperature 5-40°C Recommended cooling capacity 10 kW Recommended water chiller        KJ6500 Overpressure and over-temperature interlock
Induction Coil (Optional)	Induction Coil is available upon request
Display	The digital display shows output power and current
Compliance	NRTL or CSA certification is available upon request at extra cost, please contact our sales representatives for a quote
Application Notes	Applications: Fundamentals of Induction Heating Melting Sintering Annealing Heat treatment Quenching

Packing List
