Description

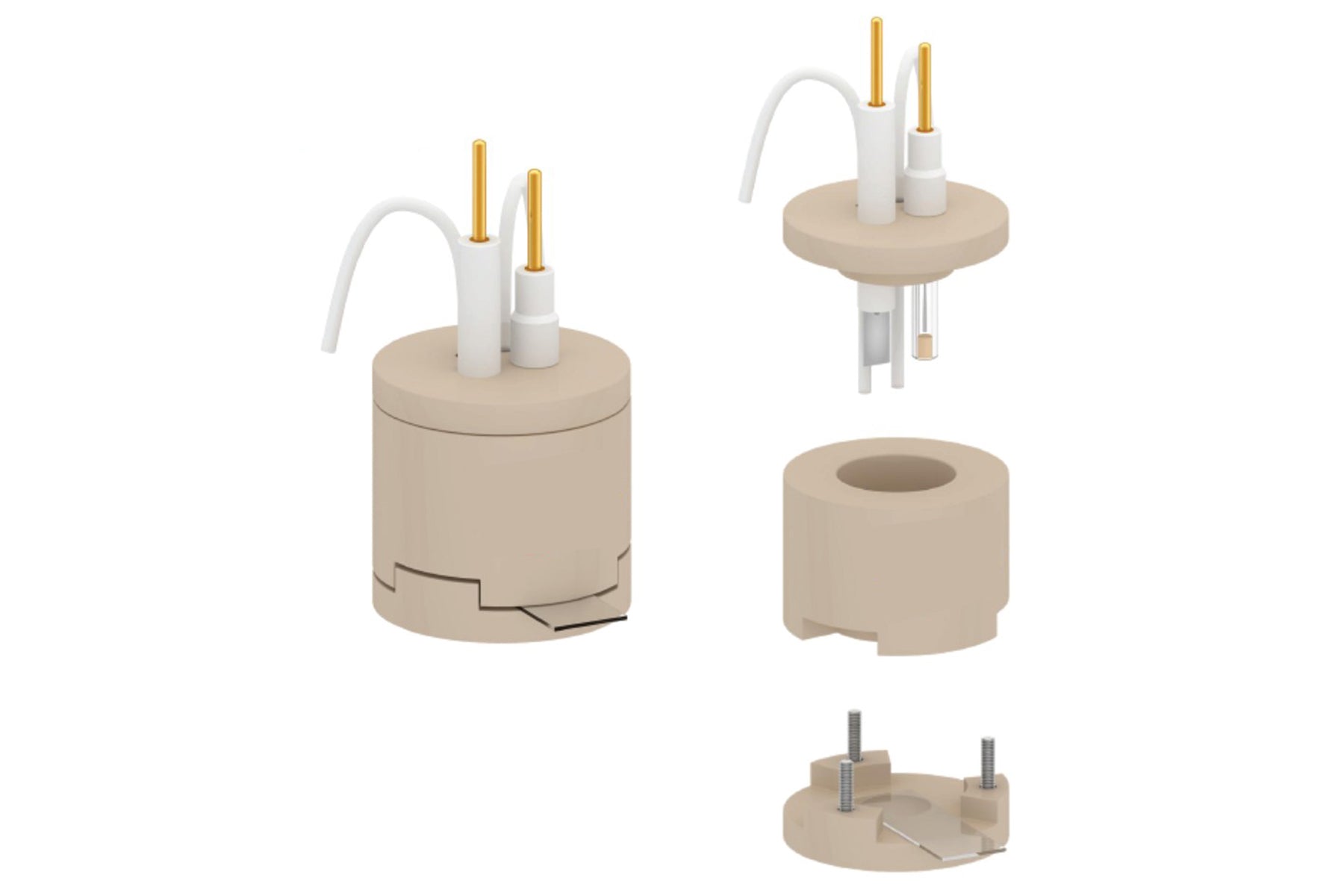

 The SC-ECL is an split cell for electrochemiluminescence (ECL) research. SPECIFICATIONS: Cell Features Cell body is made of PEEK material with good corrosion resistance. Light is coming from the bottom and ITO/FTO can be used as substrate Working electrode area is 1 cm2 Cell diameter is 40 mm and bottom staircase diameter is 29 mm Cell height < 55 mm Gas inlet and outlet ports are available Pt counter electrode and Ag/AgCl reference electrode are included

Cell Features
  • Cell body is made of PEEK material with good corrosion resistance.
  • Light is coming from the bottom and ITO/FTO can be used as substrate
  • Working electrode area is 1 cm2
  • Cell diameter is 40 mm and bottom staircase diameter is 29 mm
  • Cell height < 55 mm
  • Gas inlet and outlet ports are available
  • Pt counter electrode and Ag/AgCl reference electrode are included
