Split Electrochemical Cell with Three-Electrode Configuration for In-situ Raman Research - SEC-TEC-Raman
  • Split Electrochemical Cell with Three-Electrode Configuration for In-situ Raman Research - SEC-TEC-Raman
Split Electrochemical Cell with Three-Electrode Configuration for In-situ Raman Research - SEC-TEC-Raman

Split Electrochemical Cell with Three-Electrode Configuration for In-situ Raman Research - SEC-TEC-Raman

SKU: split-electrochemical-cell-with-three-electrode-configuration-for-in-situ-raman-research-sec-tec-raman

Price: RFQ

Description

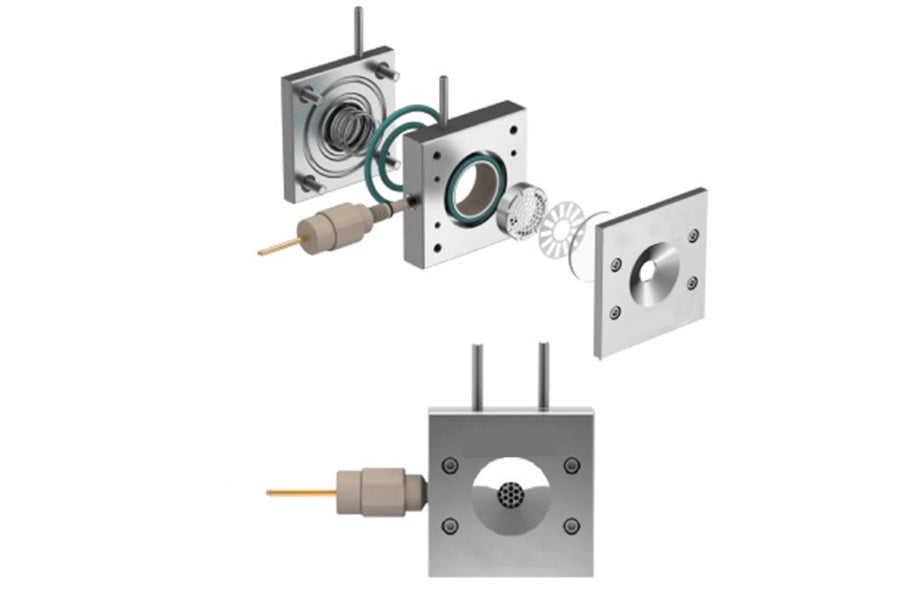

 SEC-TEC-Raman is a split cell with three-electrode configuration for in-situ Raman electrochemical research, such as battery, electrocatalysis, and others. SPECIFICATIONS Cell Features Cell body is made of high purity Ti metal Reference electrode of Ag/AgCl is used O-rings with excellent corrosion resistance are used for sealing Split cell is easily assembled and disassembled for changing electrodes Distance between working electrode and window is <2 mm Optical window diameter: 8 mm Cell dimension: 50*50*24mm Application Option If customer need high pressure for the in-situ Raman electrochemical test, please consider the following option:


Cell Features
  •  Cell body is made of high purity Ti metal
  • Reference electrode of Ag/AgCl is used
  • O-rings with excellent corrosion resistance are used for sealing
  • Split cell is easily assembled and disassembled for changing electrodes
  • Distance between working electrode and window is <2 mm
  • Optical window diameter: 8 mm
  • Cell dimension: 50*50*24mm

Application Option
  •  If customer need high pressure for the in-situ Raman electrochemical test, please consider the following option:
