500°C Max Vacuum Hot Plate (180x180 mm) w/ Digital Temperature Control - SVC-HP1515

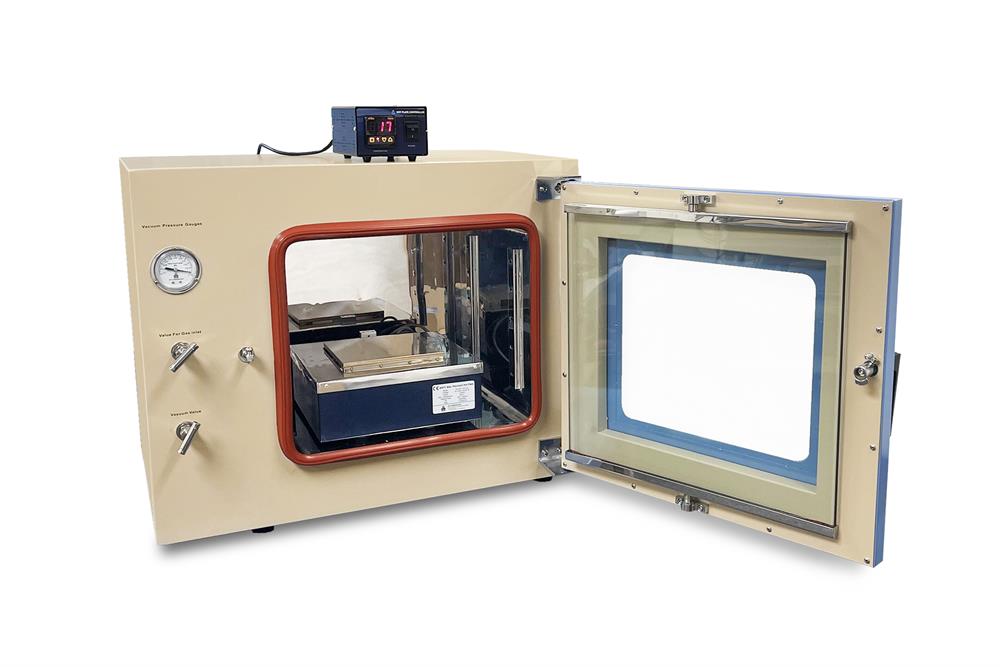

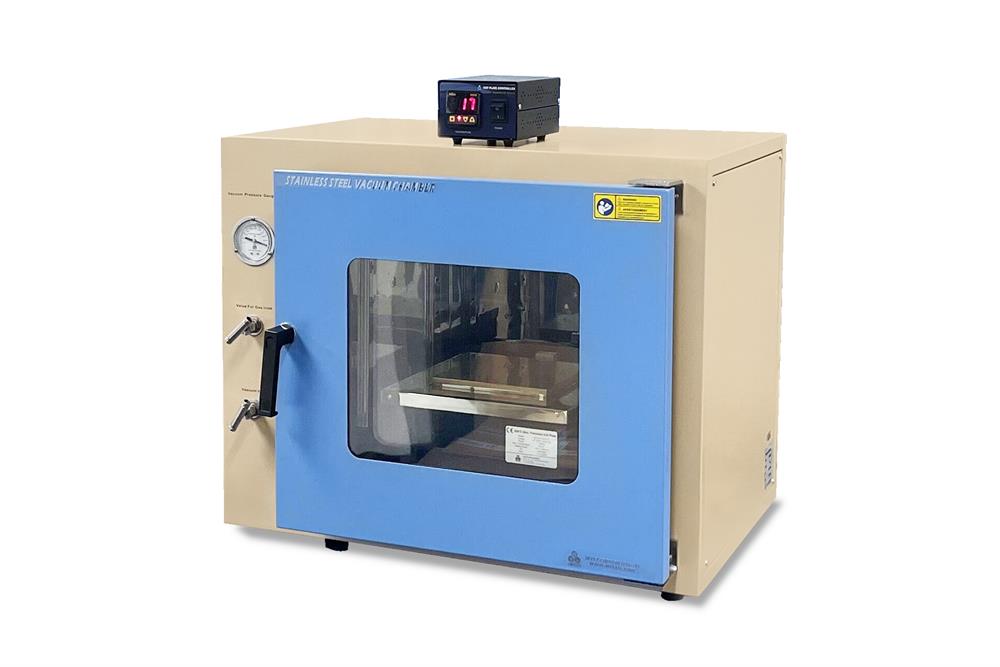

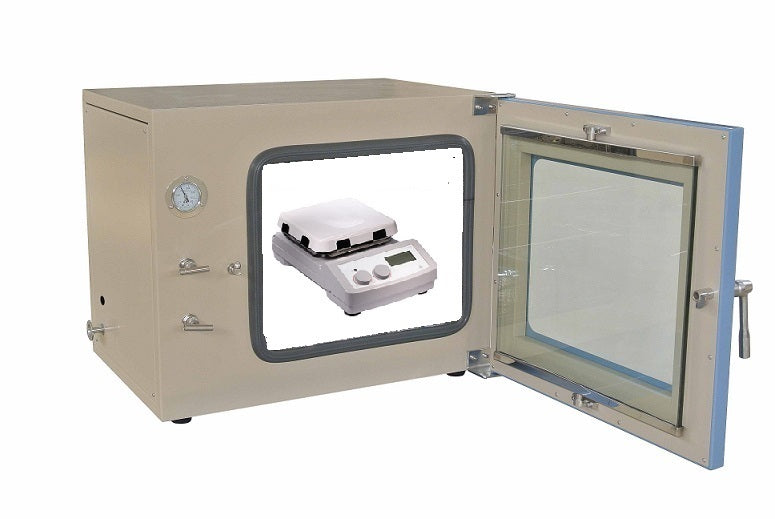

SVC-HP1515 is a vacuumable hot plate ( 180x180mm area) up to 500oC with precision temperature control to treat air-sensitive samples under a vacuum or inert gas environment.

SPECIFICATIONS

Heating Plate	Copper heating plate with 180 x 180 mm area ( ~7x7") from Rt - 500oC. The digital temperature control unit is located in the outside vacuum chamber. The copper surface provides uniform heat distribution and resists spills and corrosion  Power 1500W 208-240VAC, 50/60Hz, single phase 110V version is available via a transformer at the extra cost ( click here to order)
Chamber Structure	Made of polished 304 Stainless steel sheet Inside: 16x13x14" (420×370×350, mm ) High-strength glass as the front door for easy observation One KFD25 Adaptor is built in the chamber ( click picture left to see ) to connect a vacuum pump   Two stainless steel valve is built-in front panel for controlling the gas inlet and outlet Mechanical vacuum gauge built-in front panel with an indication
Vacuum Level	The vacuum level is dependent on the vacuum pump Max. vacuum pressure - 10E-4 -torr by turbopump Max. vacuum pressure -0.1 Mpa <50 m-torrby a mechanical pump Max. positive pressure 0.15 Mp Please click the picture left to order a vacuum pump with KF25 SS bellow and valve.
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost.
