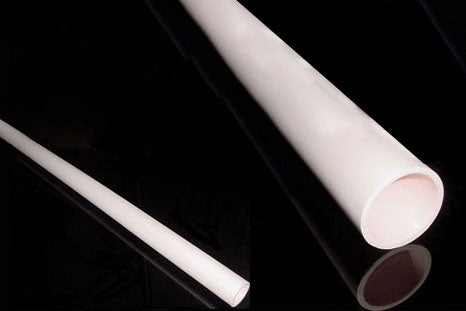

2 3/8"x48" (60 ODx54 IDx1200mm L) Alumina Ceramic Tube with Central Block Zone - TA60D1200-R
  • 2 3/8"x48" (60 ODx54 IDx1200mm L) Alumina Ceramic Tube with Central Block Zone - TA60D1200-R
2 3/8"x48" (60 ODx54 IDx1200mm L) Alumina Ceramic Tube with Central Block Zone - TA60D1200-R

2 3/8"x48" (60 ODx54 IDx1200mm L) Alumina Ceramic Tube with Central Block Zone - TA60D1200-R

SKU: ta-60d-m1200-r

Price: RFQ

Specifications

 3/8" OD larger diameter Alumina tube with 390 mm Length central block zone is designed for MTI Rotary Tube Furnace OTF-1500X-II-R60, which can maintain chemical powder during tube rotating. SPECIFICATIONS Purity Al2O3 > 95%, SiO2 < 0.25%, CaO+MgO < 0.3% Density > 3.91 g /cm 3 I.D 2-1/8" +/- 0.04 ( 53.5 +/- 1 mm ) O.D 2-3/8" +/- 0.04 ( 60.6 +/- 1 mm ) Length 1200 mm (48"") Dimensional Drawing central block zone length 390 mm Max. working temperature 1700 °C (3092°F) Warning Do NOT use an alumina tube under a vacuum at a temperature > 1500°C. Max heating or cooling rate < 5°C/ minute. Please keep the thermal gradient less than 100°C/ inch to avoid cracking. Please separate parts from the inside surface of the tube to avoid thermal shock. Please handle the tube carefully. No warranty for the tube. Application Notes Replace tube for MTI multi-zone tube furnaces of SWGL-1700Z2 Dual Zone, SWGL-1600Z2 Dual Zone, and SWGL-1600Y Three Zone Please click here to learn how to use and maintain an Alumina tube in an MT temperature tube furnace. In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

Purity Al2O3 > 95%, SiO2 < 0.25%, CaO+MgO < 0.3%
Density > 3.91 g /cm3
I.D 2-1/8"+/- 0.04 (53.5 +/- 1 mm)
O.D 2-3/8"+/- 0.04 (60.6 +/- 1 mm)
Length 1200 mm (48"")
Dimensional Drawing
 central block zone length 390 mm
Max. working temperature 1700 °C (3092°F)
Warning
  • Do NOT use an alumina tube under a vacuum at a temperature > 1500°C.
  • Max heating or cooling rate < 5°C/ minute.
  • Please keep the thermal gradient less than 100°C/ inch to avoid cracking.
  • Please separate parts from the inside surface of the tube to avoid thermal shock.
  • Please handle the tube carefully. No warranty for the tube.

Application Notes
  • Replace tube for MTI multi-zone tube furnaces of SWGL-1700Z2 Dual Zone, SWGL-1600Z2 Dual Zone, and SWGL-1600Y Three Zone
  • Please click here to learn how to use and maintain an Alumina tube in an MT temperature tube furnace.
  • In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
