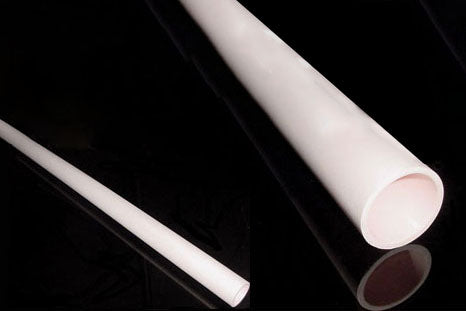

2.36" x 2 1/8" (60 OD x 54 ID x 790mm L) Alumina Ceramic Tube - TA-60D-M790-LD

2-2/5" OD larger diameter Alumina tube is made in USA with high purity 99.8% ( 998) Al 2 O 3 material. 998 alumina tube can be used at operating temperatures to 1750 o C in both oxidizing and reducing atmospheres. Tubes have been evacuated to 10 -7 Torr at room temperature . 998 alumina tube proves inert to carbon and refractory metals in many severe situations:

SPECIFICATIONS

Purity	Al2O3 > 99.8%
Density	> 3.91 g /cm3
I.D	2-1/8"+/- 0.02 (53.5 +/- 0.5 mm)
O.D	2.36"+/- 0.02 (60 +/- 0.5 mm)
Length	790 mm (31.1")
Detailed demension drawing
Max. working temperature	1750 oC
Warning	Please don't use alumina tube under vacuum at temperature > 1500 oC Mcdanel strongly recommends keep ramp rate less than 100oC/ hour Please keep theral gradient less than 100oC/ inch to avoids cracking Parts should not be placed directly onto the inside surface of a hot furance tube incase of thermal shock Please handle the tube carefully. Warranty does not include tube (but only for machine MTI provided)
Application Notes	Please click here to learn  how to use and maitain Alumina tube in MTI high temperature tube furnace. In order get longer tube service life, Please use quartz or alumia crucible to carry sample, instead loading sample directly inside tube, please click picture below to choose one crucible boat:
