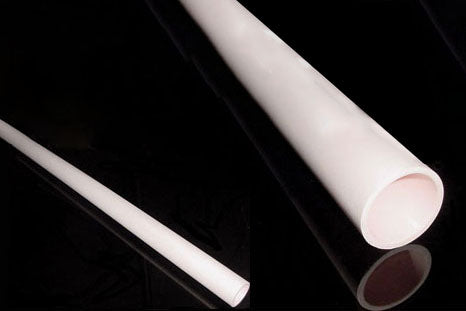

4.7" x 47 1/4" (120 OD x 110 ID x 1200mm L) Alumina Ceramic Tube - TA120D1200

4.7" OD larger diameter Alumina tube with high purity 99% Al₂O₃ material. It can be used at operating temperatures of 1700 ^oC in both oxidizing and reducing atmospheres. Tubes have been evacuated to 10^-7 Torr at room temperature.

Purchase Notes: Please make sure the specification of the tube meets your needs before making a purchase. Since Nov 10, 2016, we no longer accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, or covered under the warranty (Consumables). We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us.

SPECIFICATIONS

Purity	Al2O3 > 95%, SiO2 < 0.25%, CaO+MgO < 0.3%
Density	> 3.8 g /cm3
I.D	4.3 +/-0.08"(110+/-2mm)
O.D	4.7+/-0.04" (120+/-2mm) Note: The outer diameter of the center of the tube is slightly longer.
Length	47 1/4" (1200 mm)
Detailed dimension drawing
Max. working temperature	1700 °C (3092°F)
Warning	Do NOT use an alumina tube under a vacuum at a temperature > 1500 °C. Max heating or cooling rate < 5°C/ minute. Please keep the thermal gradient less than 100°C/ inch to avoid cracking. Please separate parts from the inside surface of the tube to avoid thermal shock. Please handle the tube carefully. No warranty for the tube.
Application Notes	Please click here to learn how to use and maintain the Alumina tube in an MTI high-temperature tube furnace. In order to get a longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
