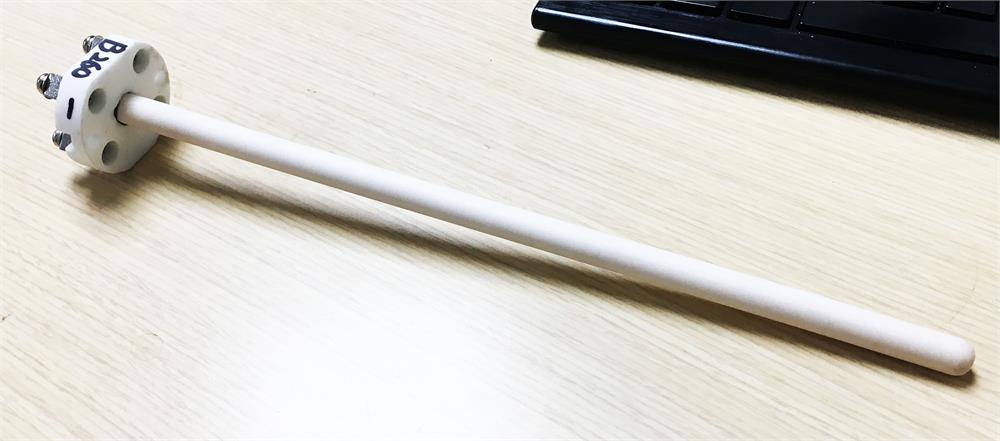

Thermocouple: 2 X B type (Pt-Rh to Pt-Rh) w/ Ceramic Sheath (Up to 1700C) - TCB-KA4
  • Thermocouple: 2 X B type (Pt-Rh to Pt-Rh) w/ Ceramic Sheath (Up to 1700C) - TCB-KA4
  • Thermocouple: 2 X B type (Pt-Rh to Pt-Rh) w/ Ceramic Sheath (Up to 1700C) - TCB-KA4
Thermocouple: 2 X B type (Pt-Rh to Pt-Rh) w/ Ceramic Sheath (Up to 1700C) - TCB-KA4

Thermocouple: 2 X B type (Pt-Rh to Pt-Rh) w/ Ceramic Sheath (Up to 1700C) - TCB-KA4

SKU: tcb-ka4

Price: RFQ

Description

Features:

  • B type thermocouple for high heat applications at temperature up to 1700 oC.
  • Two sets of B type thermocouple.
  • Suitable for KSL-1700X-A4 muffle furnaces,

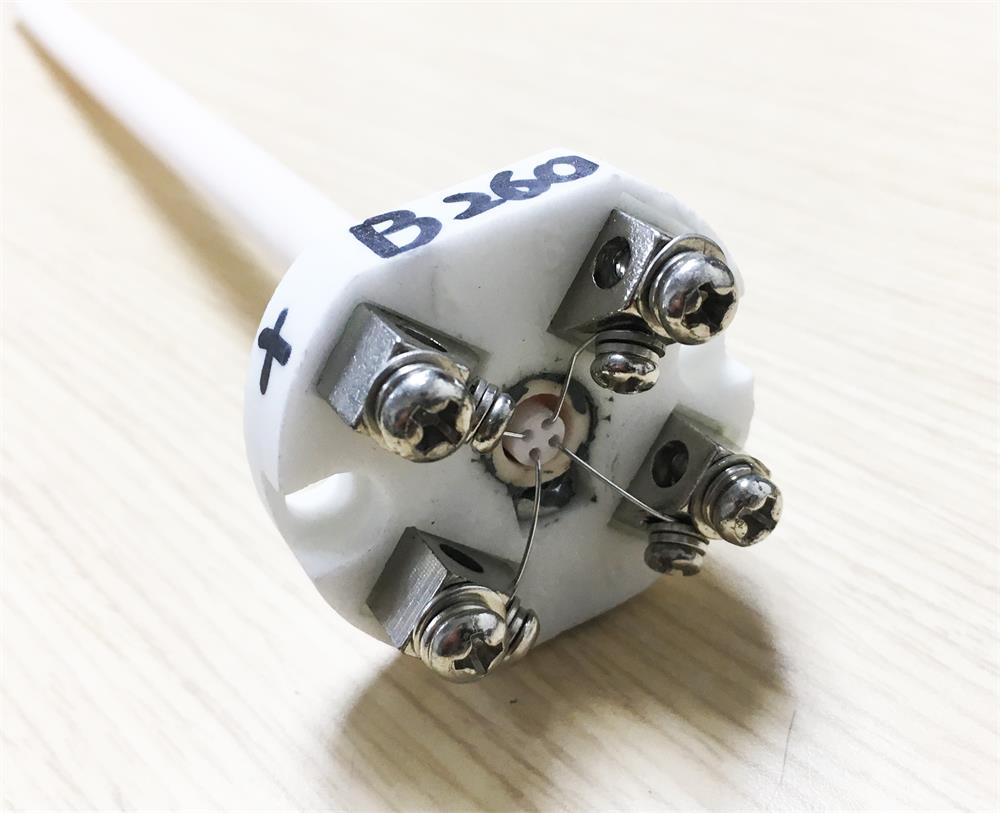

  • Ceramic end holder with screws to connect the thermocouple to a temperature controller
Specifications:
  • Length:
  • The diameter of Sheath: 8 mm, high purity Alumina
  • Positive Material: Pt/Rh (30 %)
  • Negative Material: Pt/Rh (6 %)
  • Number of thermocouples: 2 pcs
  • Lowest Temperature: 50 oC
  • Highest Temperature: 1700 oC
  • Minimum Std. Error: +/-1.4 oC
