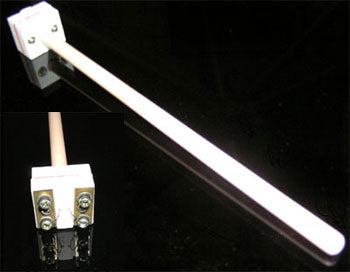

Thermocouple: B type 230 mm (9") with Ceramic Sheath (Up to 1800C) - TCB18-US
  • Thermocouple: B type 230 mm (9") with Ceramic Sheath (Up to 1800C) - TCB18-US
Thermocouple: B type 230 mm (9") with Ceramic Sheath (Up to 1800C) - TCB18-US

Thermocouple: B type 230 mm (9") with Ceramic Sheath (Up to 1800C) - TCB18-US

SKU: tcb18-us

Price: RFQ
Option9"

Description

 Features: B-type thermocouple for high heat applications at temperature up to 1700 o C. Suitable for KSL-1700X-A2, GSL-1700X, GSL-1700X-II, and GSL-1700X-III. Ceramic end holder with screws to connect the thermocouple to a temperature controller Specification: Length:                          230mm (9") Diameter of Sheath:       8 mm,  high purity Alumina Positive Material:           Pt/Rh (30 %) Negative Material:          Pt/Rh (6 %) Lowest Temperature:      50 o C Highest Temperature:     1700 o C Minimum Std. Error:       +/-1.4 o C
