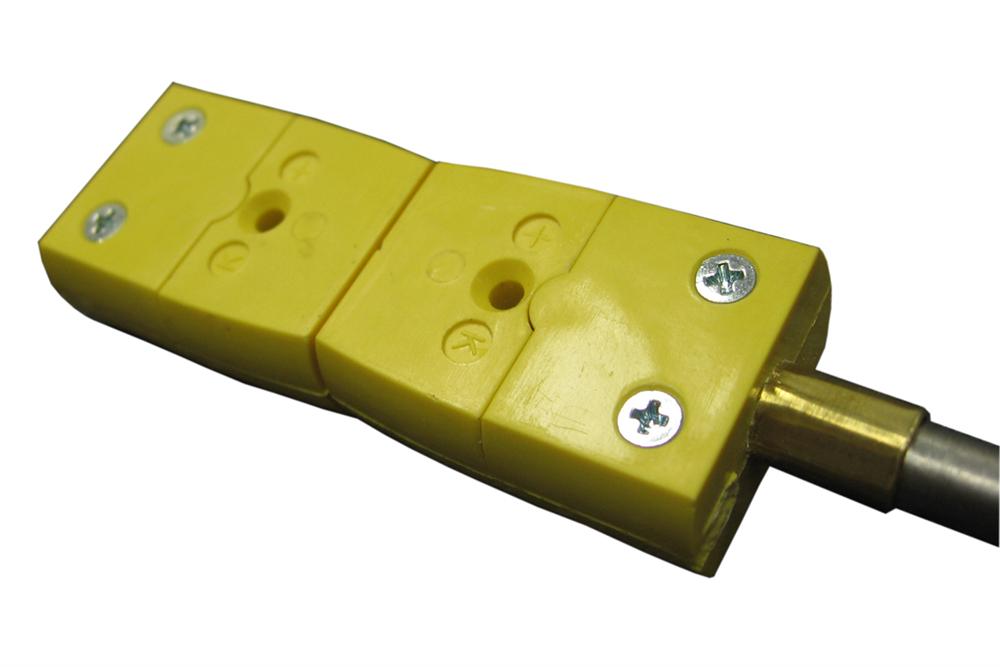

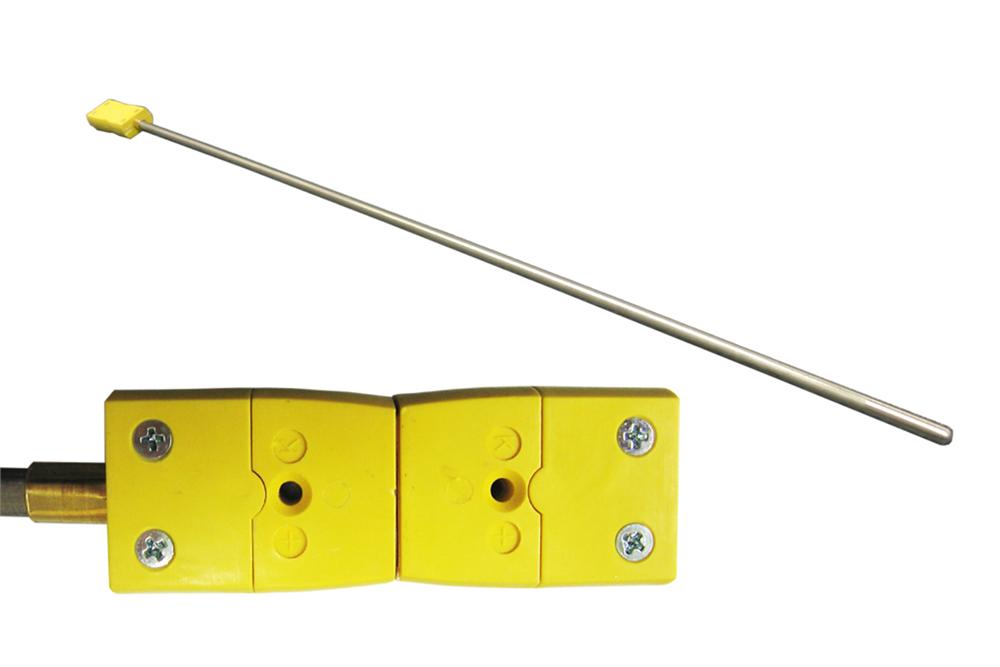

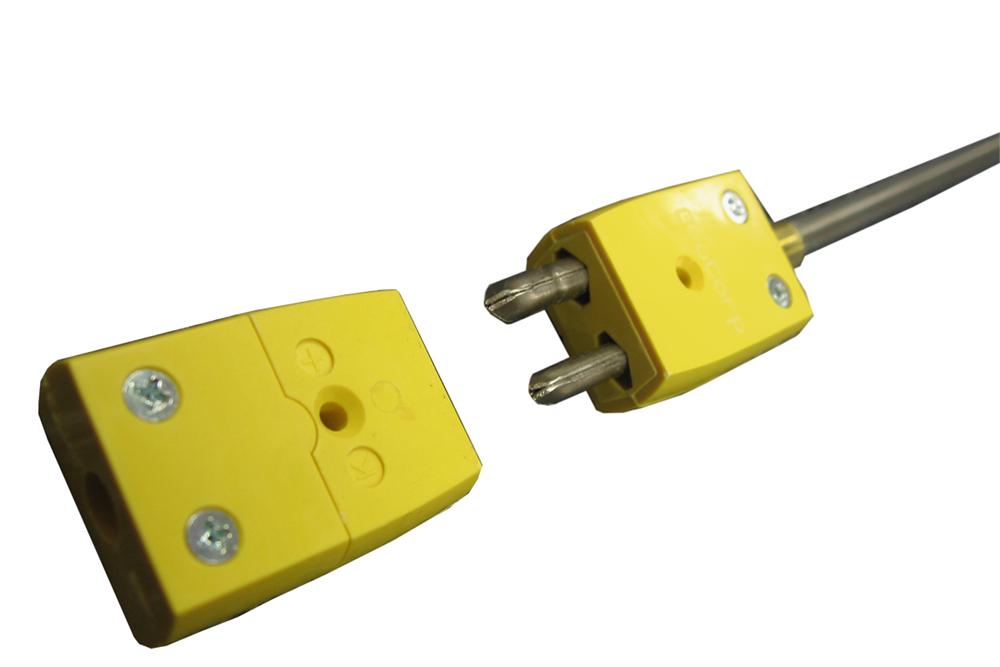

Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S
  • Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S
  • Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S
  • Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S
Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S

Thermocouple: K type 1/4"OD x 48" L with Alloy sheath and Male Plug for Calibration - TCK48S

SKU: tck48s

Price: RFQ

Specifications

 Features: Super Accurate, Super Stable, Super Value For Use with Temperatures Up to 1100 o C Excellent Long Term Stability at High Temperature Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance Excellent Oxidation, Carburization and Chlorination Resistance Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with male plug; related product below )

Specifications:
  • Length: 48" (1219 mm)
  • Diameter of sheath: 1/4" ( 6 mm ) diameter
  • Positive Material: Ni-Cr
  • Negative Material: Ni-Al
  • Highest Temperature: 1100 oC
  • Lowest Temperature: -200 oC
1/4" thermocouple can be inserted into processing tube via flange
and calibrating tube furnace temperature under vacuum * click picture to order the flange)
