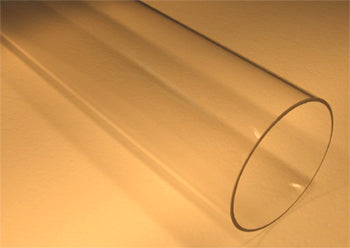

Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192

Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192

RM0.00 MYR
RM0.00 MYR
Skip to product information
Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192
  • Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192
Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192

Quartz Tube: 20OD x 16ID x 192L mm for DIY Tube Furnace -TQ20D192

SKU: tq20d192

Price: RFQ

Description

 MTI Corporation provides the high-purity quartz tube as the replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperatures up to 1200ºC . Purchase Notes: Please make sure the specification of the tube meets your need before making a purchase. Since Nov 10, 2016, we have no longer accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, nor covered under warranty (Consumables) . We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us. SPECIFICATIONS O.D 20mm ±0.5mm I.D 16mm ±0.75mm Tube Length 192mm Item Weight 0.35 lbs Max. Operating Temperature 1200 ºC Click here for SDS Application Notes For vacuum sealing, please choose vacuum flanges at the related products below This quartz tube is excellent for our GSL-1000X-20-LD t ube furnace and DIY tube furnace below 1200° C Vacuum pressures may only be safely used up to 1000°C The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa In order to get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube,  please click the picture below to order the crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D 20mm ±0.5mm
I.D 16mm ±0.75mm
Tube Length 192mm
Item Weight 0.35 lbs
Max. Operating Temperature 1200ºC
Click here for SDS
Application Notes
  • For vacuum sealing, please choose vacuum flanges at the related products below
  • This quartz tube is excellent for our GSL-1000X-20-LD tube furnace and DIY tube furnace below 1200°C
  • Vacuum pressures may only be safely used up to 1000°C
  • The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • In order to get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube,  please click the picture below to order the crucible boat:
