Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S

Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S

RM0.00 MYR
RM0.00 MYR
Skip to product information
Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
  • Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S
Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S

Automatic Pressure Controlled Lapping / Polishing System - UNIPOL-1210S

SKU: unipol-1210s

Price: RFQ

Description

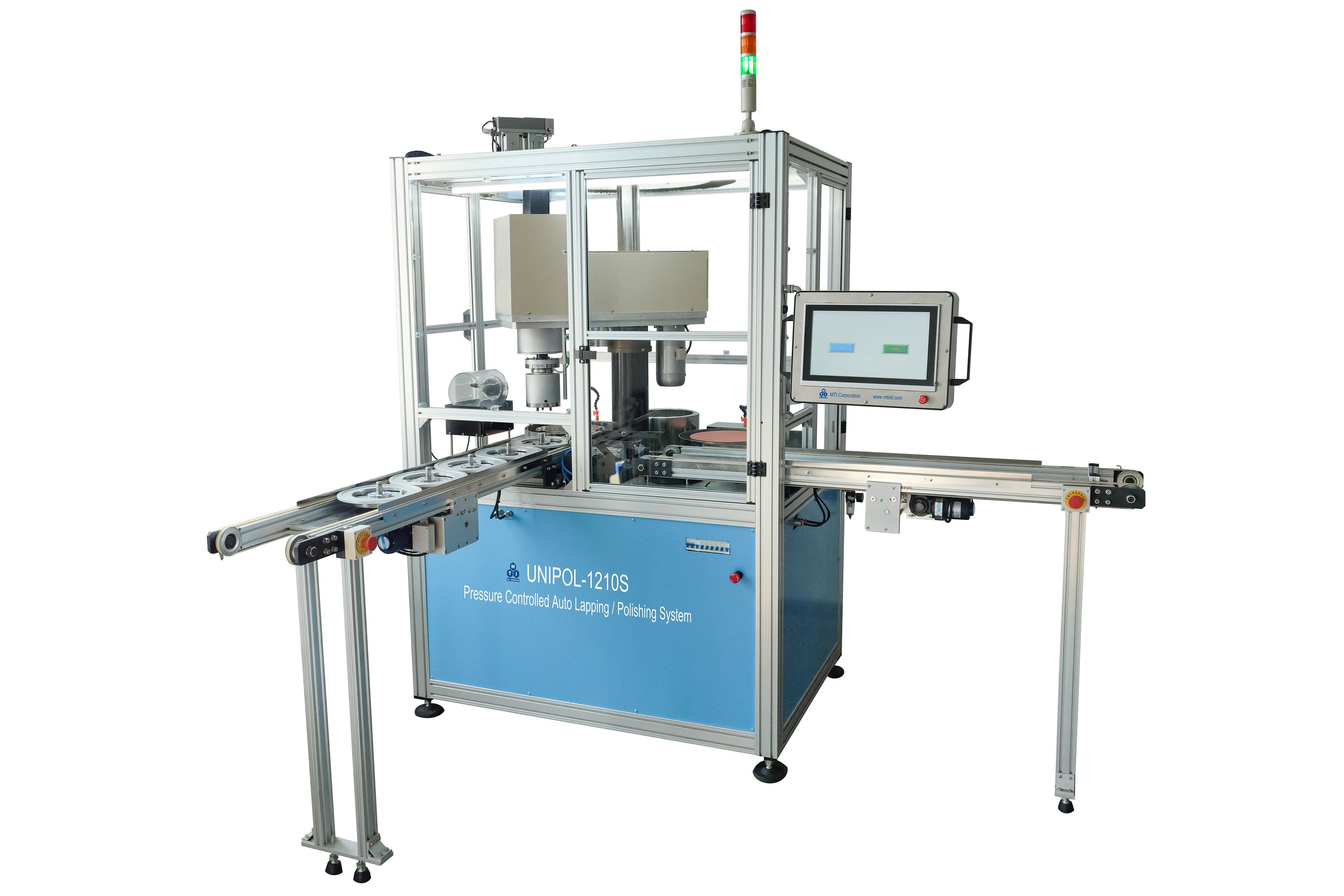

 The Automatic Pressure Controlled Lapping / Polishing System UNIPOL-1210S is suitable for the automatic lapping and polishing of materials such as metals, ceramics, glass, rock samples, and mineral samples. Additionally, it can be used for small-scale production in factories. This machine features high processing precision, stable and reliable performance, simple operation, and a wide range of applications .

 Power Supply 220V, 50Hz
Lapping Speed 10-300 rpm
Polishing Speed 10-300 rpm

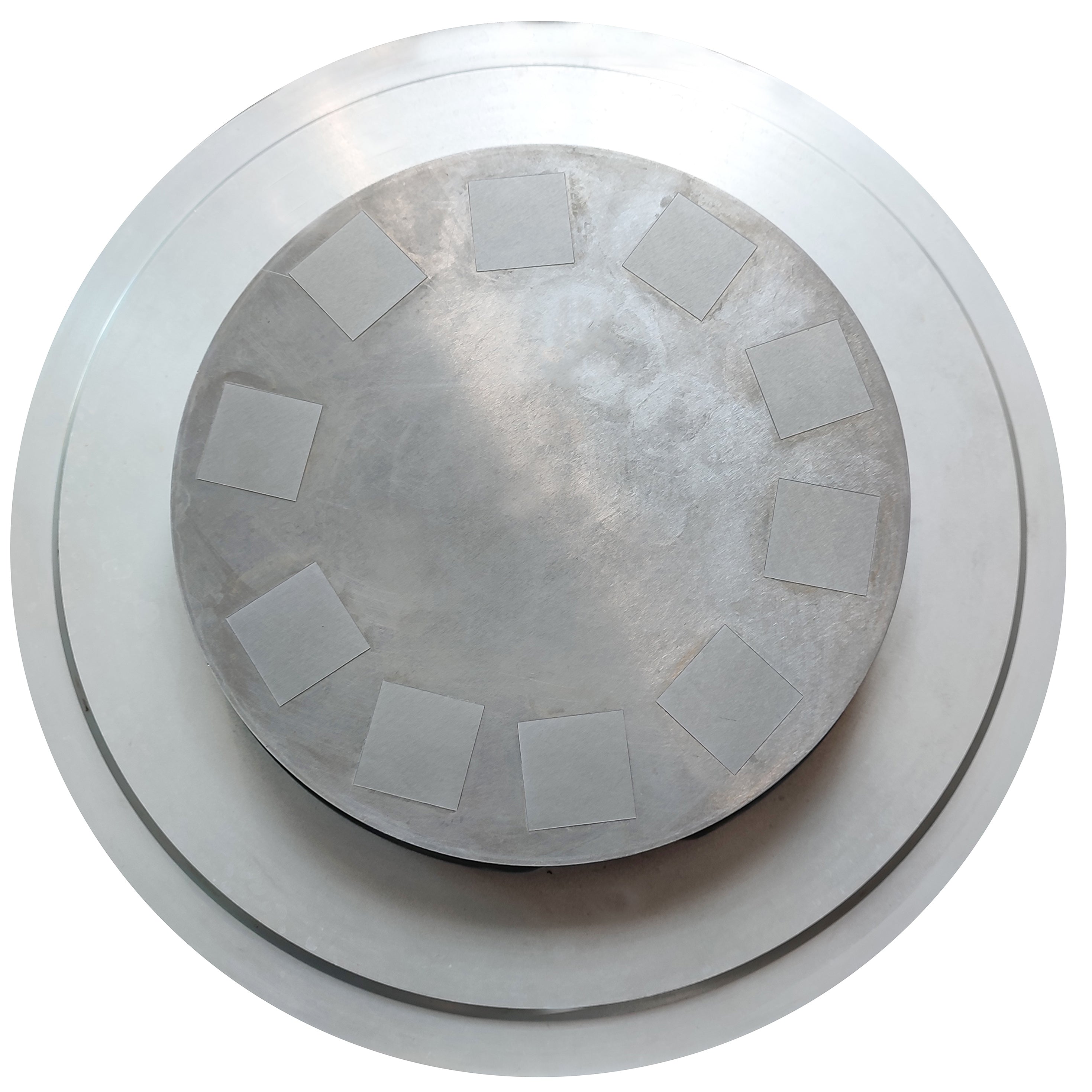

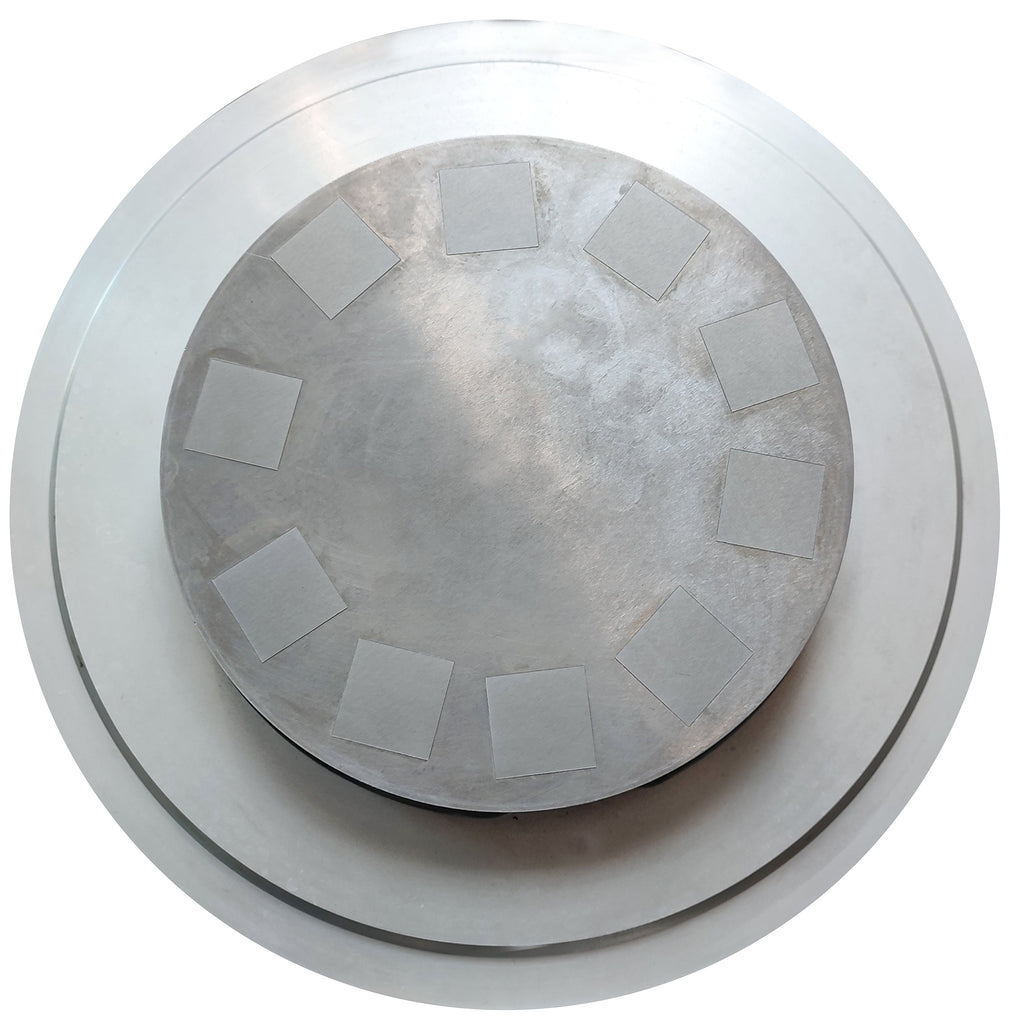

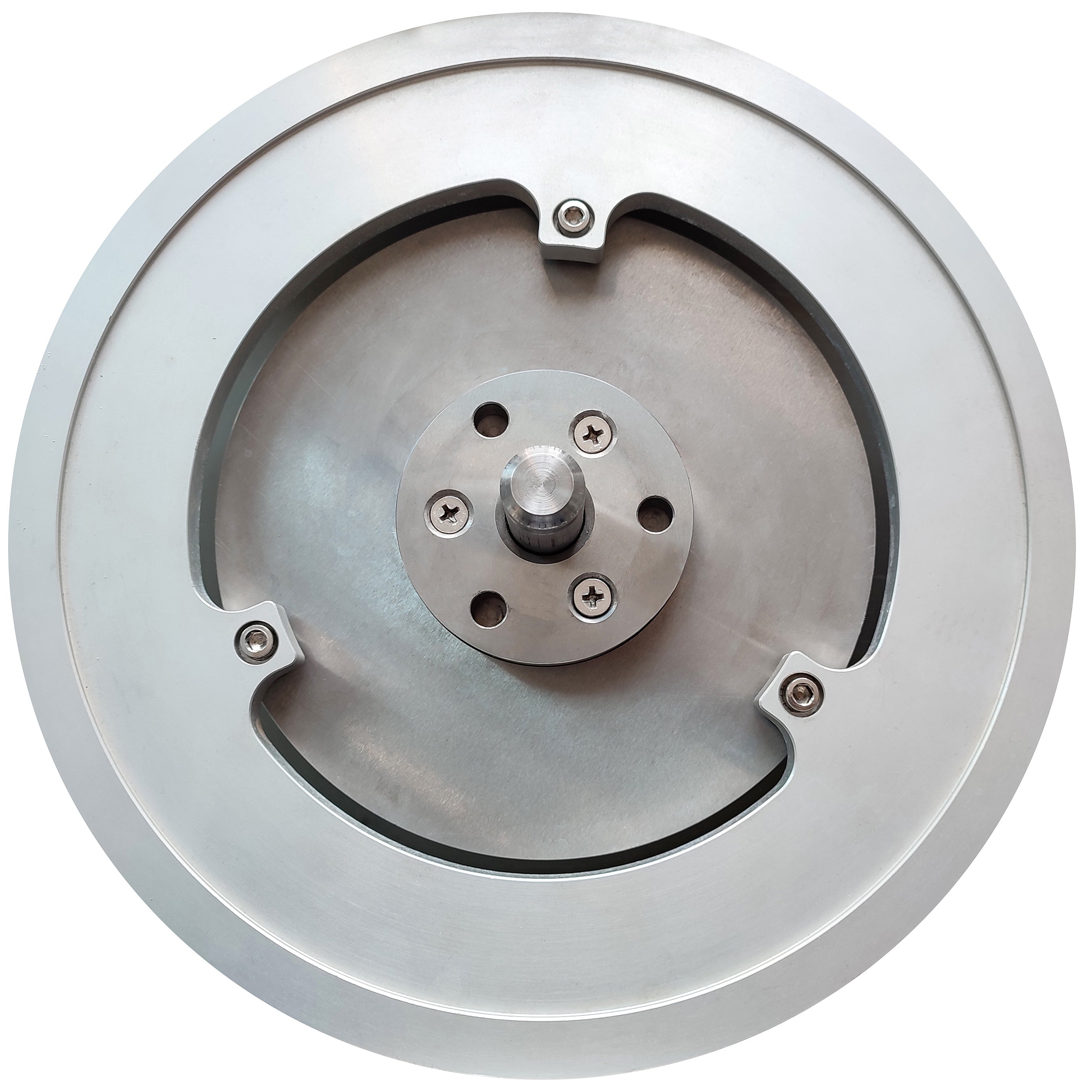

Sample Holder Φ160mm, up to 5 samples
Conveyor System 1650×300mm in/out sample tray conveyor
Air Supply Pressure  0.1-0.7 MPa
Pressure Spindle Speed 10-100 rpm
Pressure Spindle Pressure Range 0.1-30 kg
Water Supply Water storage container (provided by the customer)

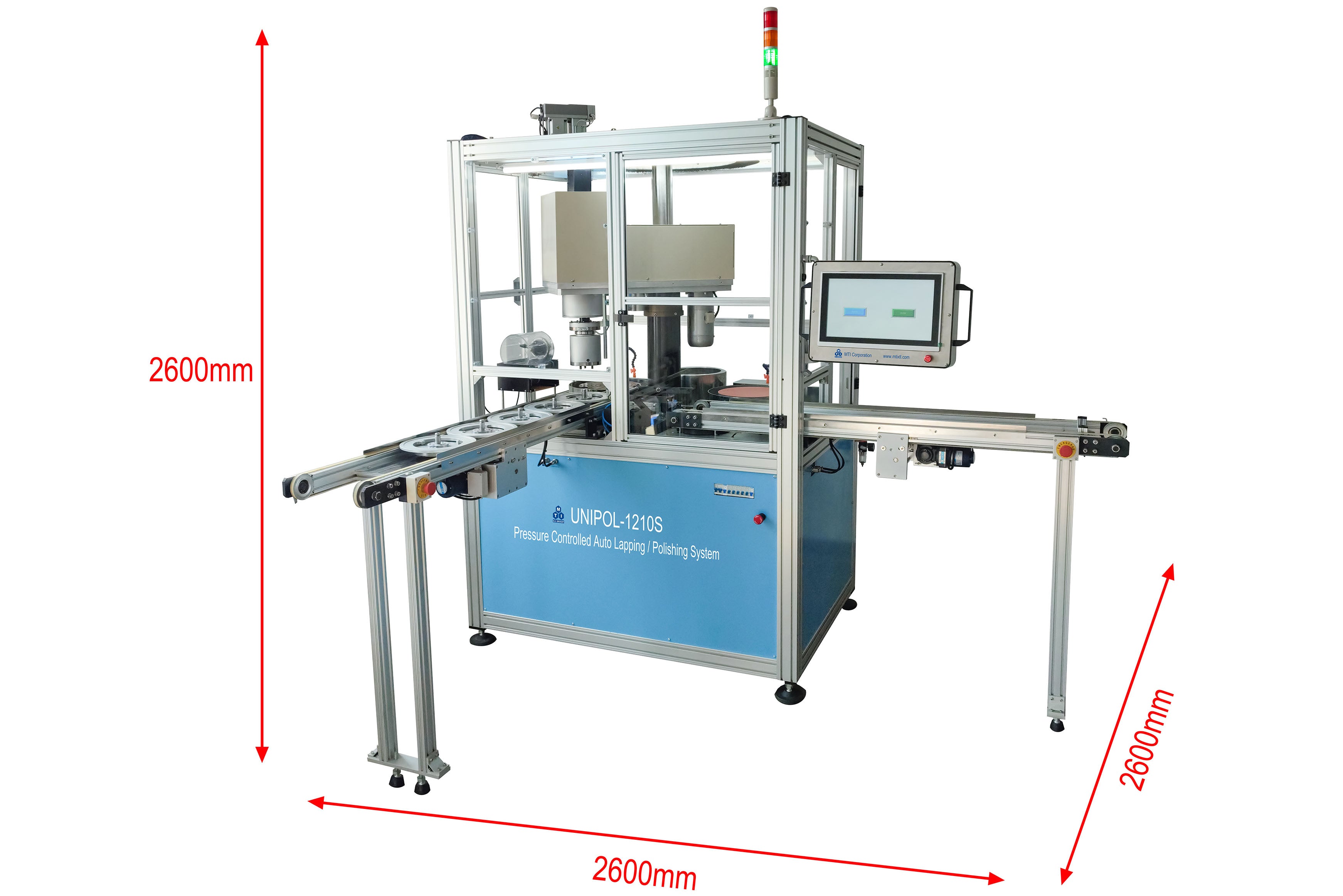

Dimensions 2600mm × 2600mm × 2600mm
