16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16
  • 16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16
  • 16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16
16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16

16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16

SKU: unipol-1500-s16

Price: RFQ

Specifications

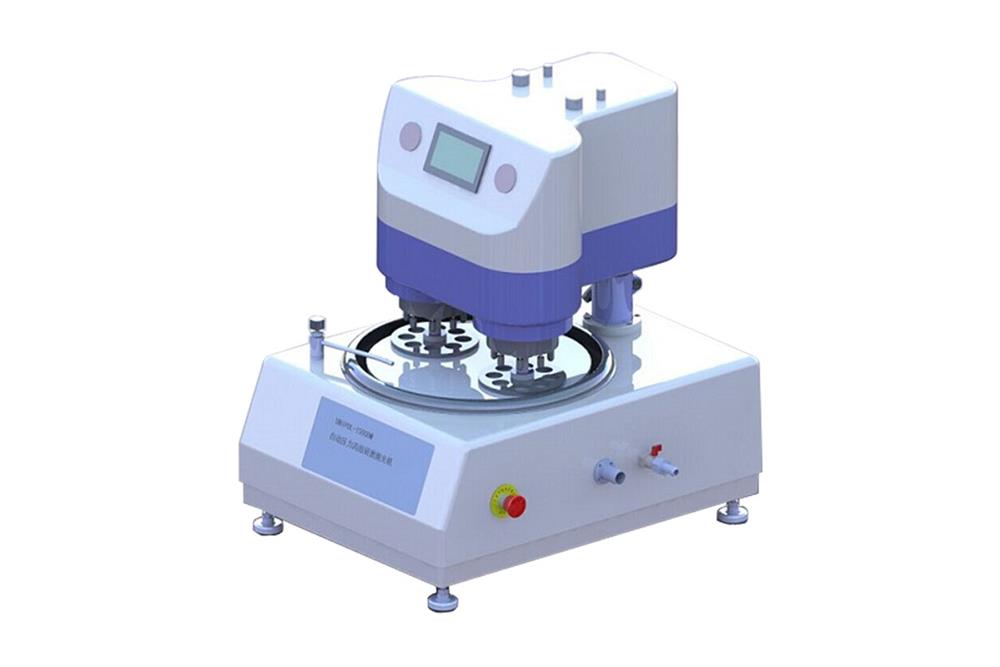

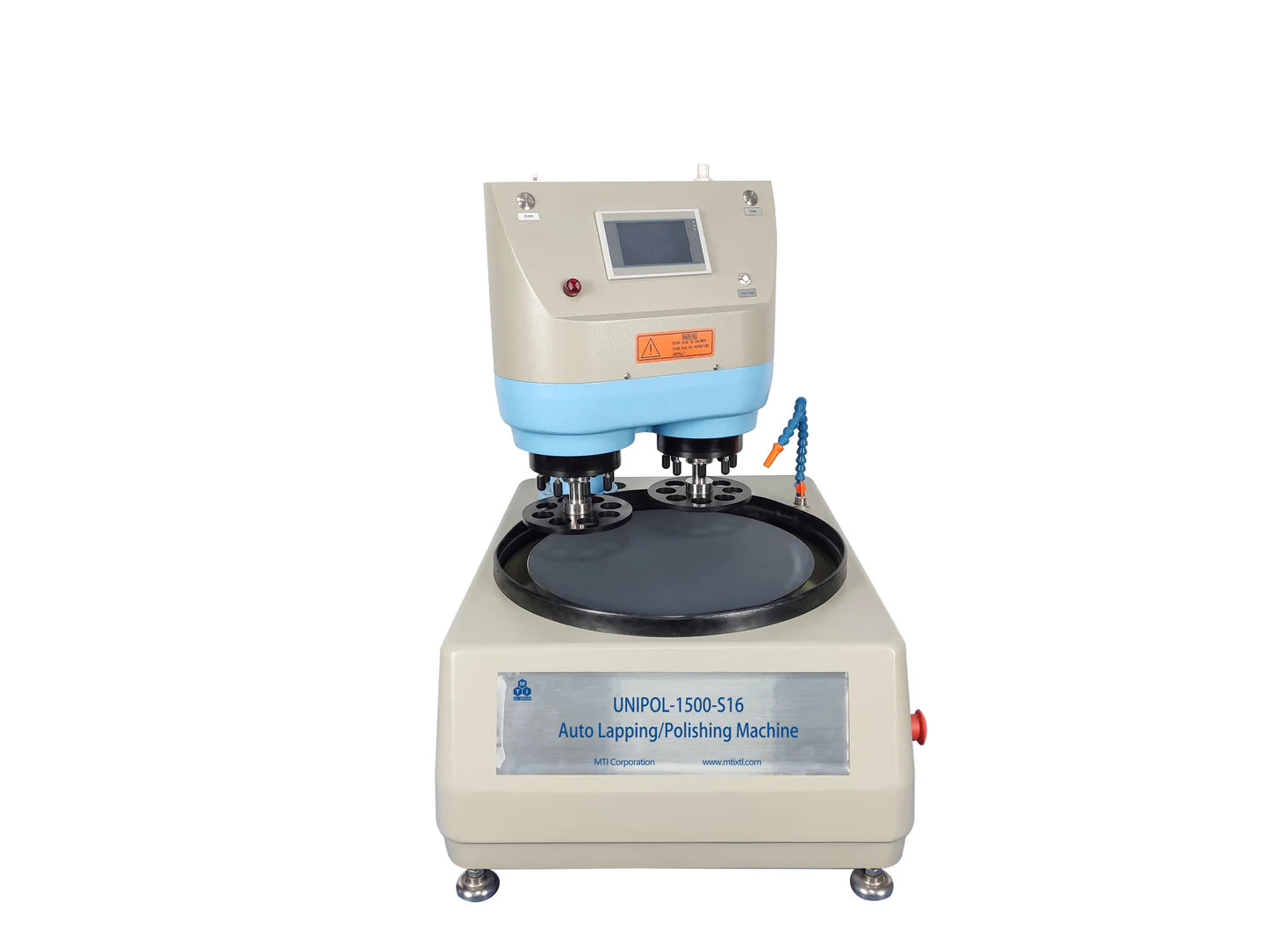

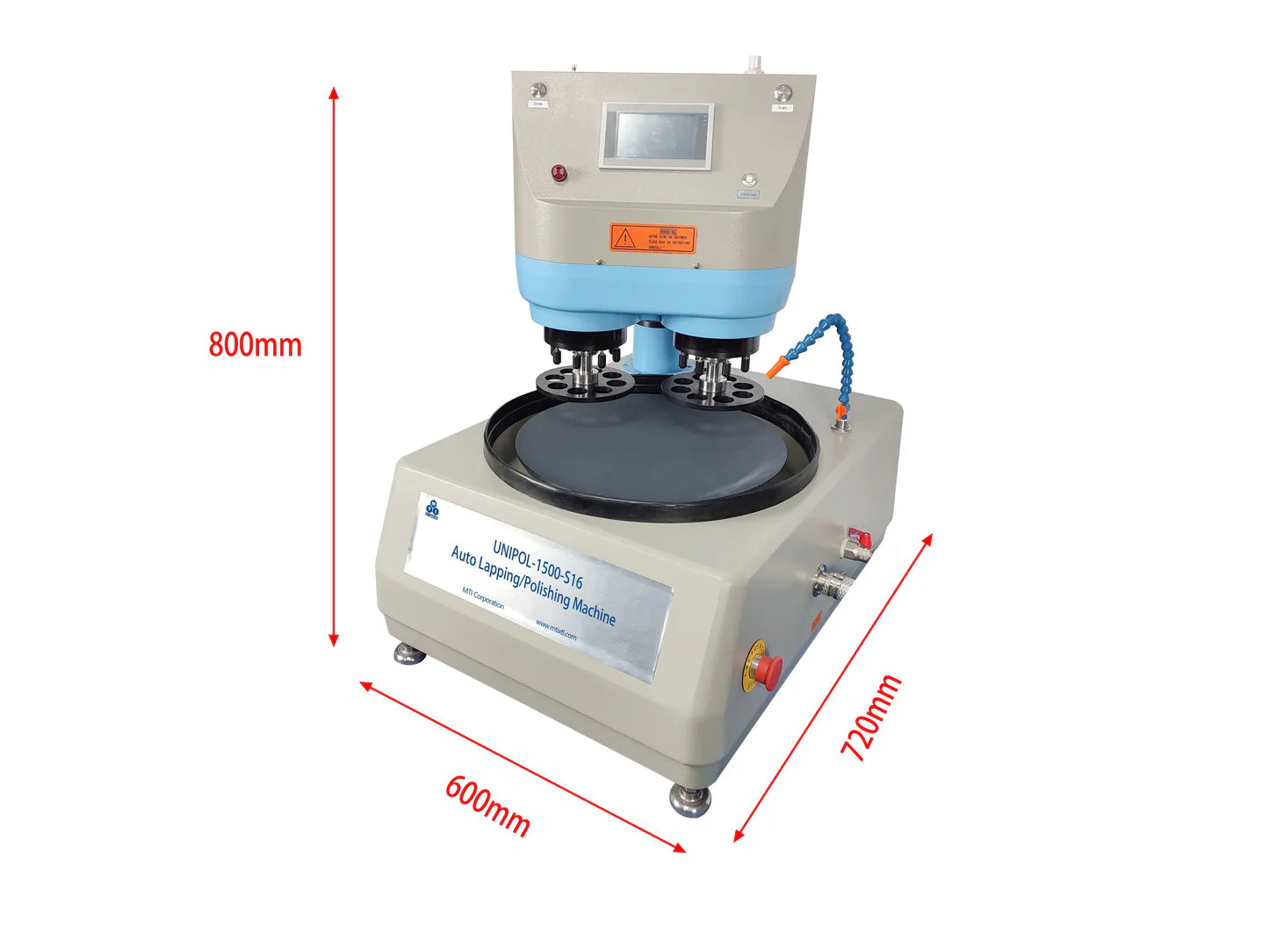

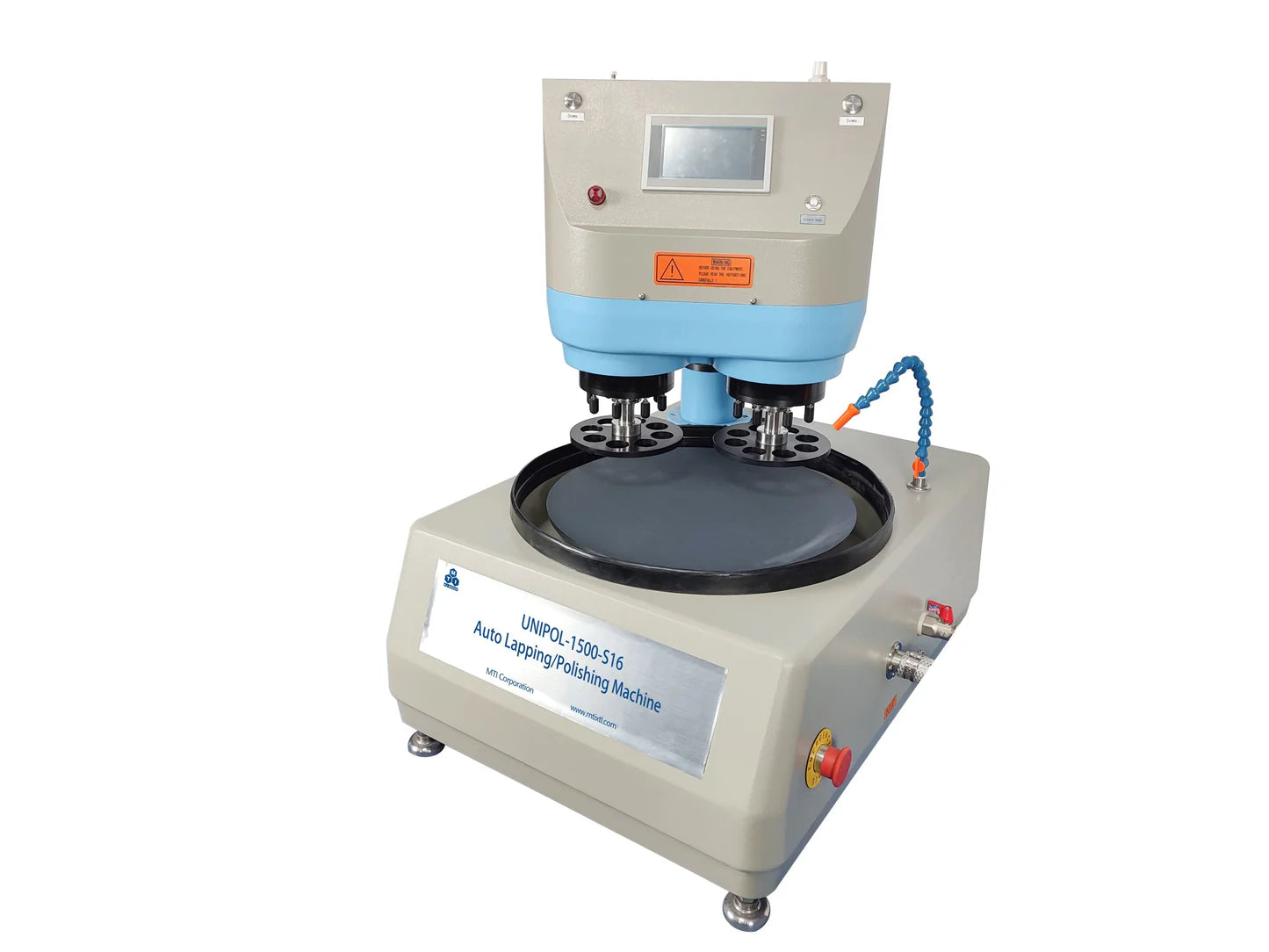

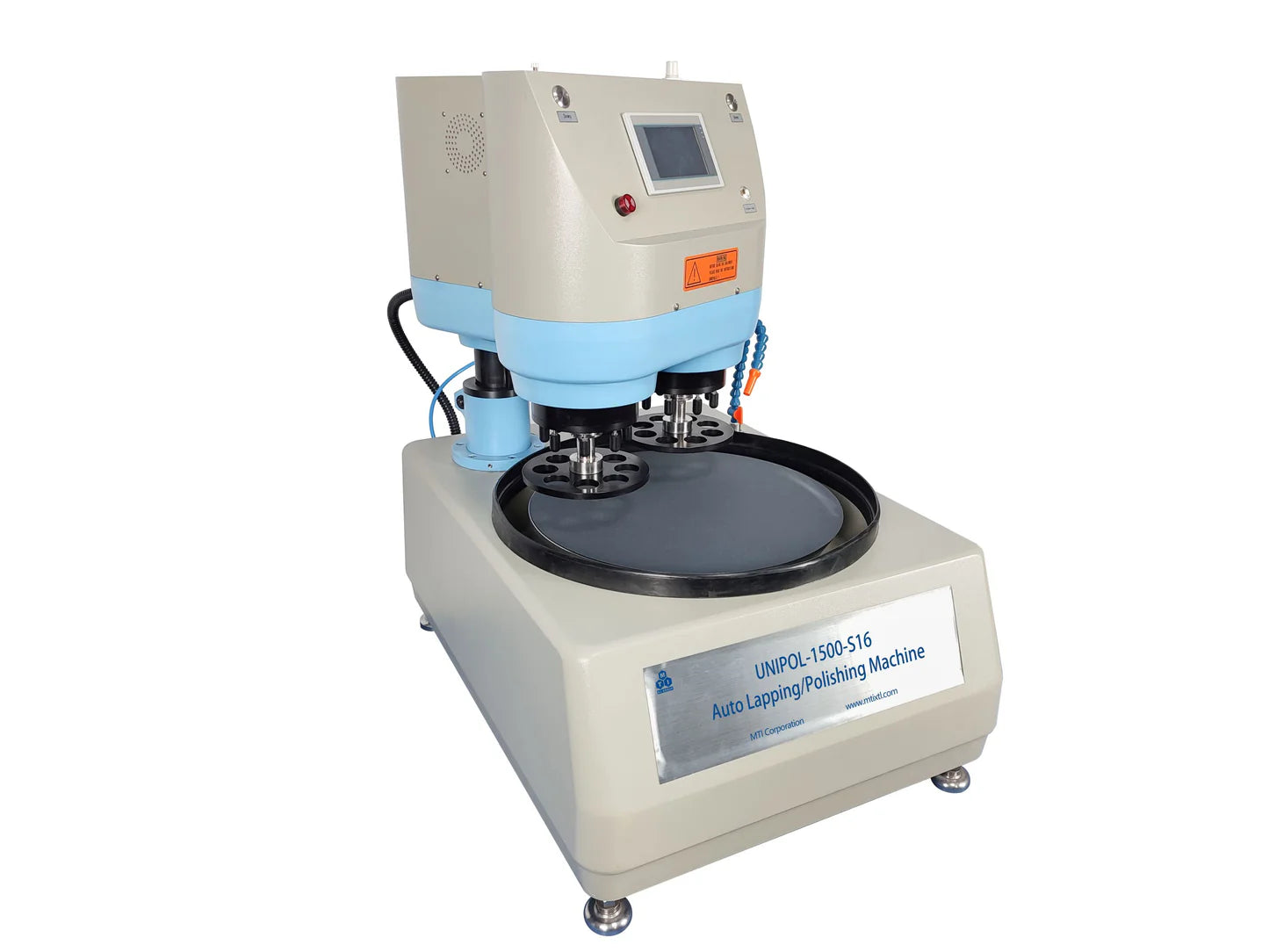

 Unipol-1500-S is a 15" automatic pressure-controlled lapping and polishing machine with two sample holders which can polish 16 samples (1" diameter Max.) at one batch. It is an excellent tool for the high-throughput research of alloy metallography. It can be used for lapping or polishing various material samples, such as metal, crystal, glass, ceramic, refractory , rocks, and polymers. The user can adjust the pressing force between the top-loading plate and the bottom mater lapping plate and set the polishing timer to achieve automatic alloy polishing. SPECIFICATIONS Features One 15" Dia. mater lapping plate (bottom) and two sample plates (top), which can hold 16 pcs sample (<25 mm Dia.) at one batch Color touch screen controller for polishing parameter settings Adjustable the pressing force (0.5 - 20 kg force) for different polishing conditions and materials Adjustable the speed for both sample loading plate and polishing plates Adjustable the time for polishing Automatic slurry feeding with controlled speed is available with an optional slurry feeder Power 208 - 240 VAC, 50 / 60 Hz Power Consumption 1500W Max. Sample Loading Plate (Top) Size: 150 mm Dia. x 2 ( 8 sample holders for each plate ) Speed: 10 - 80 rpm adjustable (10 - 50 rpm recommended) Standard sample holder size 1“ diameter Total 16 samples Polishing Plate (Bottom) Size: 380 mm Dia. Speed: 20 - 240 rpm adjustable (10 rpm increment) Pressing Force 0.5 - 20 kgf (0.5 - 15 kgf recommended) 0.5 kgf increment Control Panel Start menu (Pic #1), auto mode menu (Pic #2), manual mode menu (Pic #3) 1 2 3 Optional 4 channel automatic suspension slurry feeder is recommended Automatic mounting press for metallographic sample preparation (Click Pic #2 for details) Consumables for lapping/polishing, such as sandpaper discs (Pic #4), polishing pads (Pic #5), magnetic & buffer steel plates (Pic #6) and diamond polishing paste (Pic #7), can be ordered at MTI Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6 Pic 7 Compliance CE Certified NRTL certification is NOT available temporarily.

Features
  • One 15" Dia. mater lapping plate (bottom) and two sample plates (top), which can hold 16 pcs sample (<25 mm Dia.) at one batch
  • Color touch screen controller for polishing parameter settings
    • Adjustable the pressing force (0.5 - 20 kg force) for different polishing conditions and materials
    • Adjustable the speed for both sample loading plate and polishing plates
    • Adjustable the time for polishing
  • Automatic slurry feeding with controlled speed is available with an optional slurry feeder
Power
  • 208 - 240 VAC, 50 / 60 Hz
Power Consumption
  • 1500W Max.
Sample Loading Plate (Top)
  • Size: 150 mm Dia. x 2 ( 8 sample holders for each plate )
  • Speed: 10 - 80 rpm adjustable (10 - 50 rpm recommended)
  • Standard sample holder size 1“ diameter
  • Total 16 samples
Polishing Plate (Bottom)
  • Size: 380 mm Dia.
  • Speed: 20 - 240 rpm adjustable (10 rpm increment)
Pressing Force
  • 0.5 - 20 kgf (0.5 - 15 kgf recommended)
  • 0.5 kgf increment
Control Panel
  • Start menu (Pic #1), auto mode menu (Pic #2), manual mode menu (Pic #3)
    1 2 3
Optional
  • 4 channel automatic suspension slurry feeder is recommended
  • Automatic mounting press for metallographic sample preparation (Click Pic #2 for details)
  • Consumables for lapping/polishing, such as sandpaper discs (Pic #4), polishing pads (Pic #5), magnetic & buffer steel plates (Pic #6) and diamond polishing paste (Pic #7), can be ordered at MTI
Pic 4 Pic 5 Pic 6 Pic 7
Compliance
  • CE Certified
  • NRTL certification is NOT available temporarily.
,
1 2 3
,
Pic 4 Pic 5 Pic 6 Pic 7
