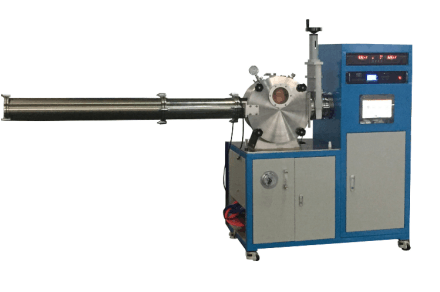

High Vacuum Melt Wire Spinning System - VTC-W100

High Vacuum Melt Wire Spinning System - VTC-W100

SKU: vtc-w100

Price: RFQ

Description

 VTC-W100 is a lab-scale high vacuum wire melt spinning system to prepare amorphous metallic wire < 20-micron diameter via induction heating and rapid quenching on a specially designed spinning copper drum. SPECIFICATIONS: Features The system consists of the vacuum chamber with turbopump, induction heating with vacuum casting device, and spinning wheel with max. 70 meter /sec. spinning speed Can melt metallic sample around 10 - 100 g per batch.up to 2000oC Power Requirements Input Voltage: 208 - 240V AC, Three Phases Input Power: 20 KW ( 70A breaker required) Vacuum Chamber & Vacuum pump Vacuum chamber: 400 mm diameter x 350 mm L Hinged type door with quartz glass observation window Built-in a mechanical pump and turbopump Can achieve 5 x10 E-5 torrs within 30 minutes Limited. vacuum level 10E-7 torr (with baking) Induction Heater Dual Station 35KW Induction Heater Crucible: 15×50mm Max. sample load: around 10 - 50g ( Fe) Spinning wheel Flying wheel made of Oxygen Free Copper with dimension φ220×30mm 0 - 70 meter / second adjustable Wire ( silk) diameter Wire (silk) diameter is dependable on material For Fe base alloy usually can achieve < 100-micron diameter FeSiBNbCu alloy amorphous wire in about 50-micron diameter Optional Facility Water chiller > 58 L/min Footprint Mian Unit: 2600X900mm Control Unit: 700X700mm Compliance CE Certified NRTL certification is available upon request at extra cost

Features
  • The system consists of the vacuum chamber with turbopump, induction heating with vacuum casting device, and spinning wheel with max. 70 meter /sec. spinning speed
  • Can melt metallic sample around 10 - 100 g per batch.up to 2000oC
Power Requirements
  • Input Voltage: 208 - 240V AC, Three Phases
  • Input Power: 20 KW ( 70A breaker required)
Vacuum Chamber
&
Vacuum pump
  • Vacuum chamber: 400 mm diameter x 350 mm L
  • Hinged type door with quartz glass observation window
  • Built-in a mechanical pump and turbopump
  • Can achieve 5 x10 E-5 torrs within 30 minutes
  • Limited. vacuum level 10E-7 torr (with baking)
Induction Heater
  • Dual Station 35KW Induction Heater
  • Crucible: 15×50mm
  • Max. sample load: around 10 - 50g ( Fe)
Spinning wheel
  • Flying wheel made of Oxygen Free Copper with dimension φ220×30mm
  • 0 - 70 meter / second adjustable
  •
Wire ( silk) diameter
  • Wire (silk) diameter is dependable on material
  • For Fe base alloy usually can achieve < 100-micron diameter
  •  FeSiBNbCu alloy amorphous wire in about 50-micron diameter
Optional Facility
  • Water chiller > 58 L/min
Footprint
  • Mian Unit: 2600X900mm
  • Control Unit: 700X700mm
Compliance
  • CE Certified
  • NRTL certification is available upon request at extra cost
