1700C Bottom Loading Box Furnace (12x13x16", 40L) - VTF-1700X-B40
  • 1700C Bottom Loading Box Furnace (12x13x16", 40L) - VTF-1700X-B40
1700C Bottom Loading Box Furnace (12x13x16", 40L) - VTF-1700X-B40

1700C Bottom Loading Box Furnace (12x13x16", 40L) - VTF-1700X-B40

SKU: vtf-1700x-b40

Price: RFQ

Specifications

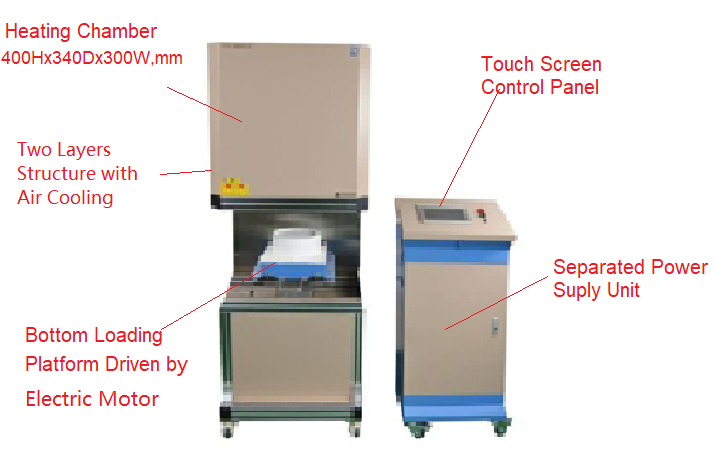

 VTF-1700X-B is a bottom loading box furnace for rapid thermal process and fast cooling procedure, which uses Kathal 1800C grade MoSi2 heating element for working at 1700ºC continuously. The sample loading platform is driven by an electric motor for easy operation. SPECIFICATIONS Furnace Features Two-layer casing with air colling gap. The outside case can be made of stainless steel at an option. Electric bottom loading for Rapid thermal heating and cooling process. High purity thermal insulation material for better energy saving Separated control union with touch screen panel for easy and safe operation. Working Temperature 1700 °C, continuously 1750 °C, < 1 hr Heating Chamber Cylindrical, 400W x 340 D x 300 (H), mm ( 16"Hx13"Dx 12"H) Nominal Capacity: ~ 40 L Power 220 VAC, 50/60 Hz single phase Max. Power: ~ 15 kW Heating Element Kathal 1800oC grade MoSi2 heating element 10 pcs ( click picture below for details ) Max. Heating Rate ≤ 10 °C/min (Recommended) Thermocouple Type B x 2 Temperature Control Touchscreen display unit for easy control. Eurotherm 3504 series Temperature Controller with10 programs (500 segments) ± 0.1 ºC temperature accuracy Overheat alarm, Deviation alarm, broken thermocouple alarm RS 485 communication port for remote control. PC software and interface are included Overheat alarm, electric leakage protection One extra temperature controller with the thermal couple is installed for monitoring temperature and cut-off power if over-temperature happens. Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. Application Notes In order to obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.

Furnace Features
  • Two-layer casing with air colling gap.
  • The outside case can be made of stainless steel at an option.
  • Electric bottom loading for Rapid thermal heating and cooling process.
  • High purity thermal insulation material for better energy saving
  • Separated control union with touch screen panel for easy and safe operation.
Working Temperature
  • 1700 °C, continuously
  • 1750 °C, < 1 hr

Heating Chamber
  • Cylindrical, 400W x 340 D x 300 (H), mm ( 16"Hx13"Dx 12"H)
  • Nominal Capacity: ~ 40 L

Power
  • 220 VAC, 50/60 Hz single phase
  • Max. Power: ~ 15 kW

Heating Element
  • Kathal 1800oC grade MoSi2 heating element
  • 10 pcs ( click picture below for details )

Max. Heating Rate
  • ≤ 10 °C/min (Recommended)

Thermocouple
  • Type B x 2

Temperature Control
  • Touchscreen display unit for easy control.
  • Eurotherm 3504 series Temperature Controller with10 programs (500 segments)
  • ± 0.1 ºC temperature accuracy
  • Overheat alarm, Deviation alarm, broken thermocouple alarm
  • RS 485 communication port for remote control.
  • PC software and interface are included
  • Overheat alarm, electric leakage protection
  • One extra temperature controller with the thermal couple is installed for monitoring temperature and cut-off power if over-temperature happens.

Compliance


  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
