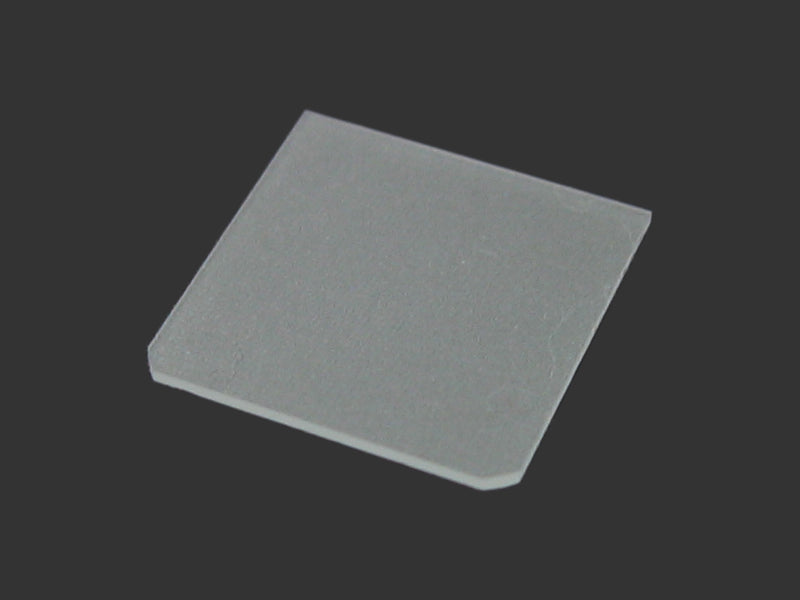

YAlO3 (101) 5x5x0.5mm, 1 side polished
  • YAlO3 (101) 5x5x0.5mm, 1 side polished
  • YAlO3 (101) 5x5x0.5mm, 1 side polished
YAlO3 (101) 5x5x0.5mm, 1 side polished

YAlO3 (101) 5x5x0.5mm, 1 side polished

SKU: yalo3-101-5x5x0-5mm-1-side-polished

Price: RFQ

Description

 Single crystal:           YAlO3 Substrate Size:        5mm x 5mm x 0.5mm Orientation: (101) +/-0.5 o ( Please pay attention order of lattice constant as the table below ) Polished:                   one side polished Surface Roughness:  < 5A Packing:                     1000 class clean room and bag YAlO3 is excellent substrate for HTS film and II-V nitride , as well as many oxide films due to its chemcial stability and lattice matching. Structure Lattice (A) Melting Point Density g/cc Dielectric Constant Thermo-Expans x10 -6 /K Max. Xtl  Size Orthor. a=5.3286(4) b=7.3706(5) c=5.1796(3) 1870 0 C 4.88 16-20 2-10 30d x 50mm

Structure

Lattice (A)

Melting Point

Density g/cc

Dielectric Constant

Thermo-Expans x10-6/K

Max. Xtl  Size

Orthor.

a=5.3286(4) b=7.3706(5)

c=5.1796(3)

1870 0C

4.88

16-20

2-10

30d x 50mm
