MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696
  • MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696
  • MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696
  • MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696
MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696

MET Certified Precision Temperature Controller with 30 segments programmable - YD518X3-9696

SKU: yd518x3-9696

Price: RFQ

Specifications

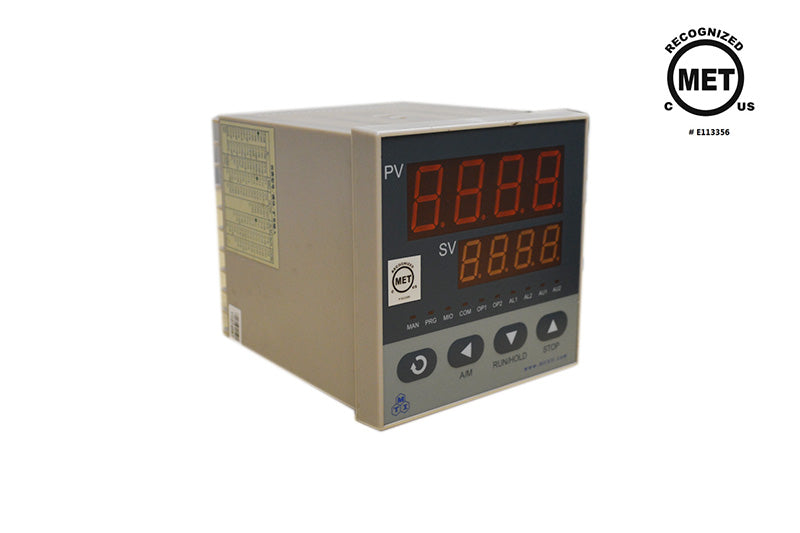

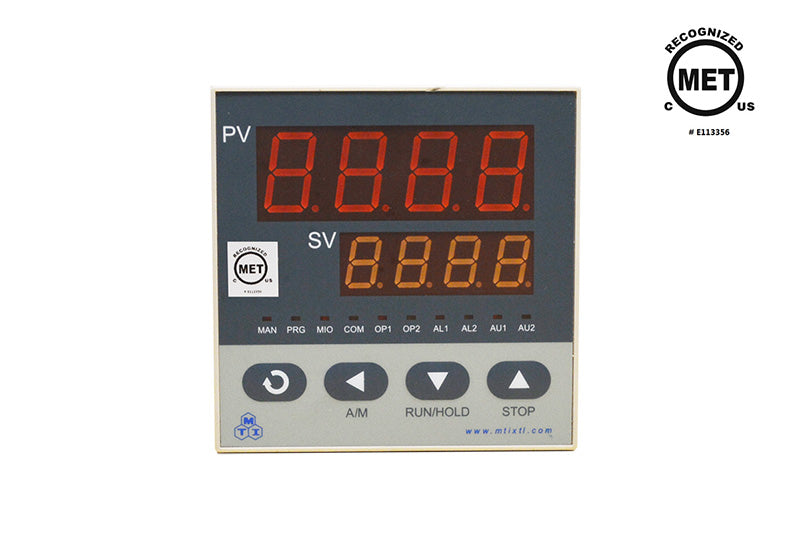

 FA-YD518P-X3 Precision temperature controller is MET certified. It adopts PID parameter control method which precisely controls temperature with +/-1C accuracy. It has built-in function modules can work with SCR or Power controller to optimize the furnace performance according to different models of furnaces. Please click the link to know how to use this Precision temperature controller PID automatic control K, J, S, B thermocouple 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Over temperature protection and alarm allows for operation without attendant(s). +/- 1 ºC temperature accuracy. X3 in model name standing for OUTPUT unit inside the controller, X3 unit has 1- 5VDC,4-20mA or 0- 20mA output selectable. Using at the High-temperature furnace of MTI like GSL-1700X , KSL-1700X . RS485 Communication Port. Software is included Met certified Click here to understand MET certification . MET vs. UL The controller may be operated by PC by installing a control module and software included If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer laptop (please select the "computerized tool" in the options bar) from us to avoid software installation problems. For more information please click here .
