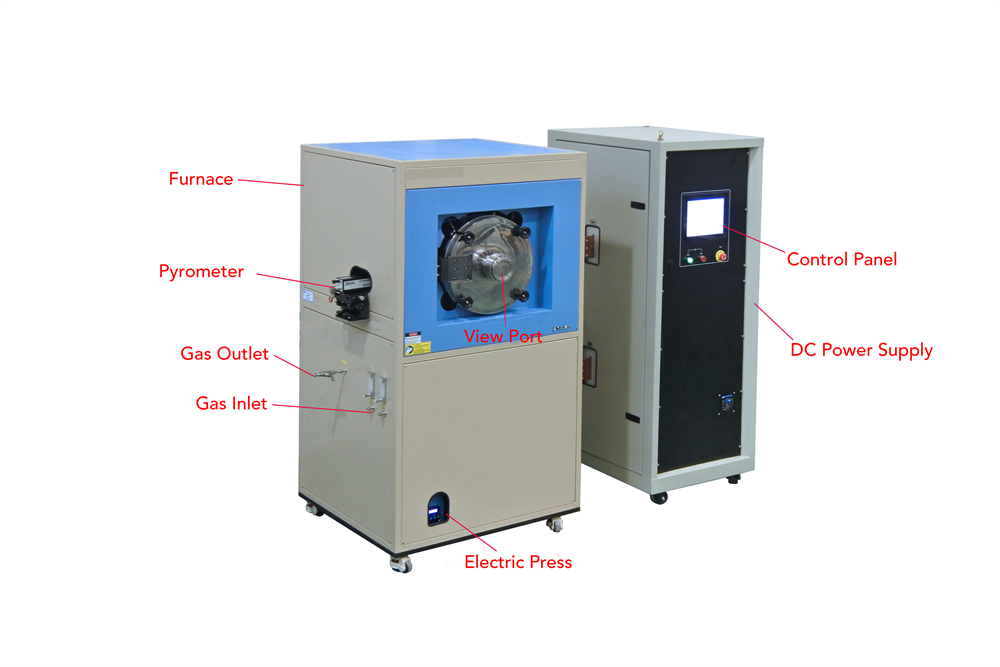

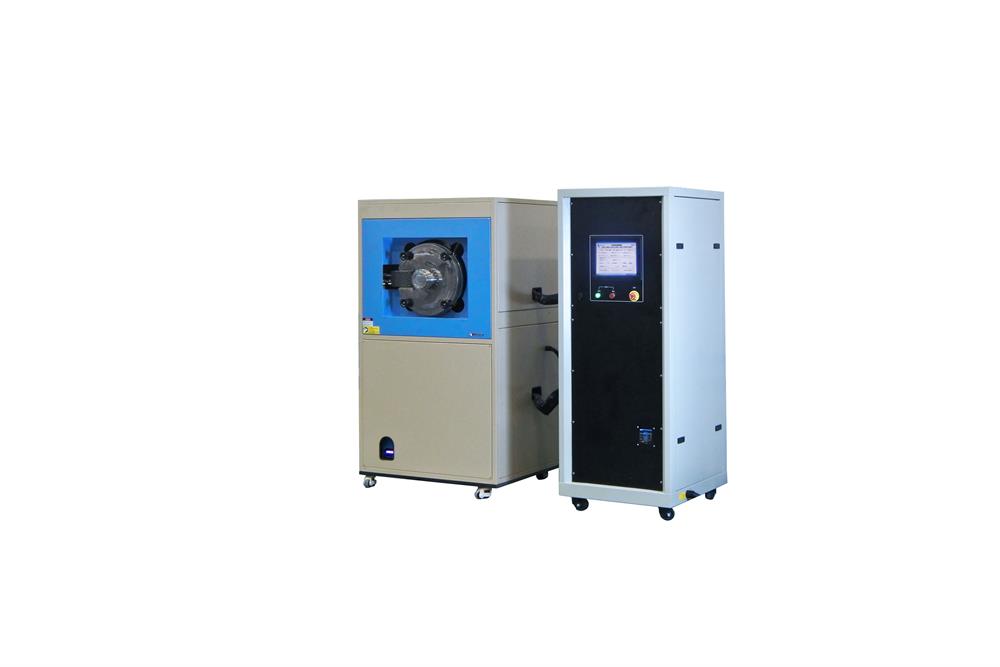

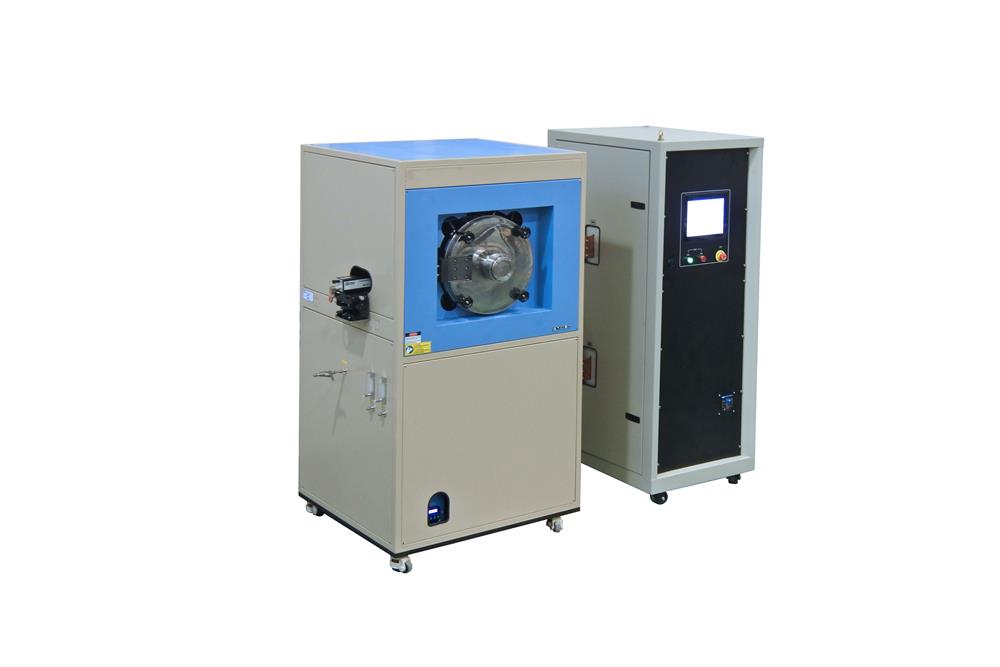

YLJ-SPS-5T is a Spark Plasma Sintering System (SPS) designed for a wide range of material research up to 2000ºC. It can be used for sintering, bonding, surface treatment, and synthesis. The sample material can be metals, ceramics, nanostructured material, and amorphous material. This system perfectly fits solid electrolyte and electric thermal material research.
SPECIFICATION
| Configuration |
- Stainless Steel Chamber - Suitable for Controlled Inert Gas or Vacuum Condition
- 5T max electric sintering press unit with graphite die (100 MPa Max.)
- Sintering DC power supply
- Vacuum system
- Precision temperature control
- Touchscreen control panel
|
| Power |
- 460-480VAC, 3 phase, 50/60Hz, 30 kW
- Optional working voltage, 208-240V, 380V, 400V, 415V, 3p, is available upon request.
|
| Output Current |
- DC 0 - 3000 A (Manual or PID Control)
|
| Output Voltage |
- DC 0 - 10 V (Manual, or PID Control)
|
Working Temperature
and thermocouple |
- 200ºC - 2200ºC with C-type thermocouple
- 900ºC - 2000ºC with infrared pyrometer
|
Temperature controller
|
- Precision Eurotherm temperature controller is built-in
- Temperature resolution 0.1ºC
- Temperature accuracy ±10°C
|
Electric Mechanical Press
|
- Electric mechanical press
- Max pressure: 5T
- Digital Pressure control and monitoring.
|
Sintering Die Set Dimension
|
- OD. 85- 100 mm
- ID: 12.75 mm (1/2")
- Up to 100 MPa
- Other graphite die with 10 mm, 25.4 mm diameter is available upon request.
|
| Vacuum Chamber |
- 304 stainless steel vacuum chamber.
- Chamber size: 350 mm Dia x 350 mm L
-
Vacuum Level：
- 7.5E-2 torr with a mechanical pump （ not included ）
- 10e-5 torr with optional turbopump (click picture below right to order)
|
| Pressure Control System |
- PLC with 11" touchscreen panel
|
| Pressure Accuracy |
|
| Max Heating Rate |
|
Water Cooling
|
- 56L/minute recirculating water chiller is not included.
-
Please click the picture left to order
|
| Compliance |
- CE certified
- NRTL certification is NOT available temporarily.
|
