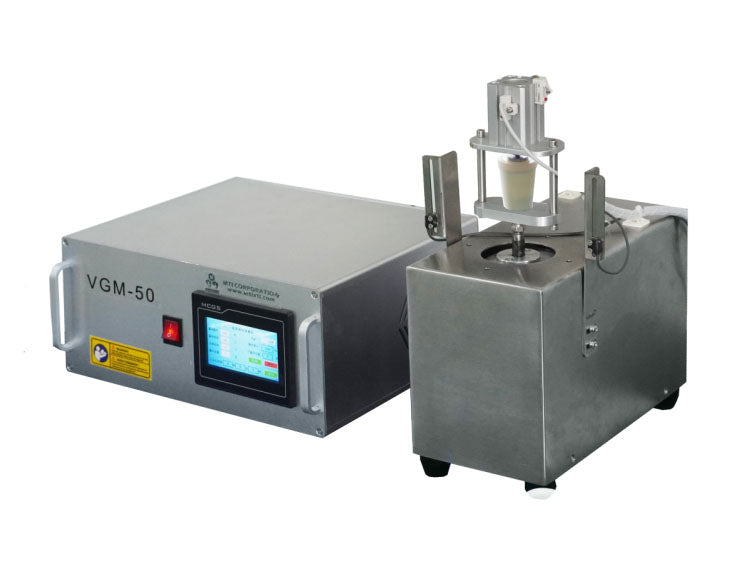

Programmable & Automatic High-Energy Impact Grinder and Mill - VGM-50-AM

VGM-50-AM is a programmable and automatic vertical impact grinder and mill for crushing, grinding, and milling sintered ceramic samples up to 0.1 microns. It can adapt various grinding jars from 1.5 ml to 90 ml and provides a high-energy impact force with an amplitude of 16 mm at a frequency of 1600 times/ minute. Milling time, rest cooling time, and speed are programmable via a separate touchscreen box. This device can be used inside an argon gas glovebox and can achieve automatic ball milling via a robotic arm.

Specifications:

Working Voltage	110 - 240V AC, 50/60 Hz, single phase for universal use. 400W Max. 24VDC motor Compatible with Ar gas glovebox
Vibration	Frequency: 300 - 1600 per minute Amplitude： 16 mm. Time: 1 sec to 6553 sec. Milling time, rest cooling time and speed are programmable via a separate touchscreen control box Acceleration gravity: ~ 80 G
Material Feed Size	This machine can be used for both crusher, grinding, and fine particle ball mill For crushing, please use 5- 15 mm dia balls, which can crush rough samples about < 12 mm in diameter  For grinding, please use 5- 8 mm diameter balls for < rough sample < 5 mm For the fine particle mill ( < 5 microns), please use 2- 5 mm diameter milling balls
Material Output Size	~0.1 - 5 μm May differ depending on the sample material and processing parameters, such as speed, ball size, and quantity

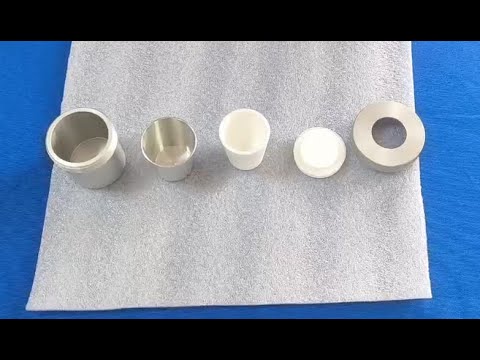

Milling Jars/Balls ( Click the picture to order a spare )	One 90 ml air-tight Zuriconia jar is included with several 5 pcs 5 mm balls and 2 pcs of & 10 mm balls Please click the picture below to see how to install the YSZ jar into an aluminum case   YSZ jar size For air-sensitive materials, you can load before milling and unload a sample after milling in the glovebox 15 - 90 ml SS, Peek, Si3N4, and zirconia jar are available upon request ( Click the underlined to choose)

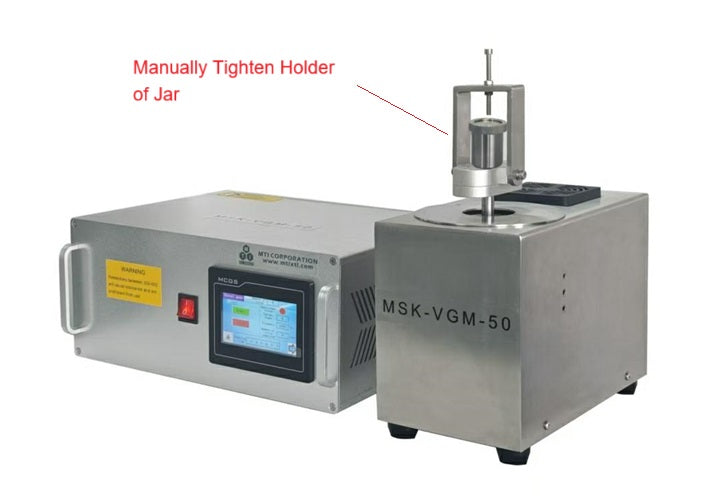

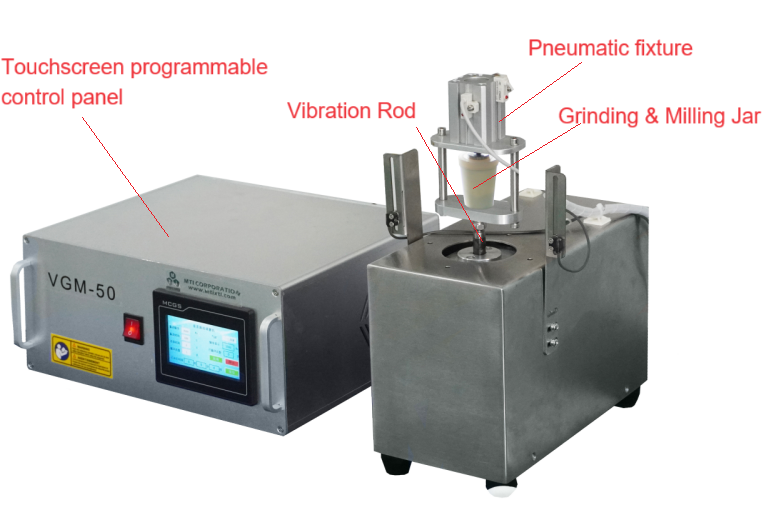

Jar Holders	Two types of Jar holders are included One is a Manual tighten holder ( Pic. 1 & 2 ) below ) for easy operation One is a pneumatic holder to tighten the lid of the jar automatically by touching a button or PC operation (Pic. 3) 0.4 Mpa ( 40 bar ) gas pressure is required to drive the pneumatic fixture  If using the outside glovebox, you may order a gas compressor at Pic.4 Pic. 1Pic. 2 Pic. 3  Pic. 4
Control Box	The control box with the touch-screen is in a separate unit. You can choose the mode of manual operation or automatic operation In automation mode, you can program running time, speed, and rest time based on your application

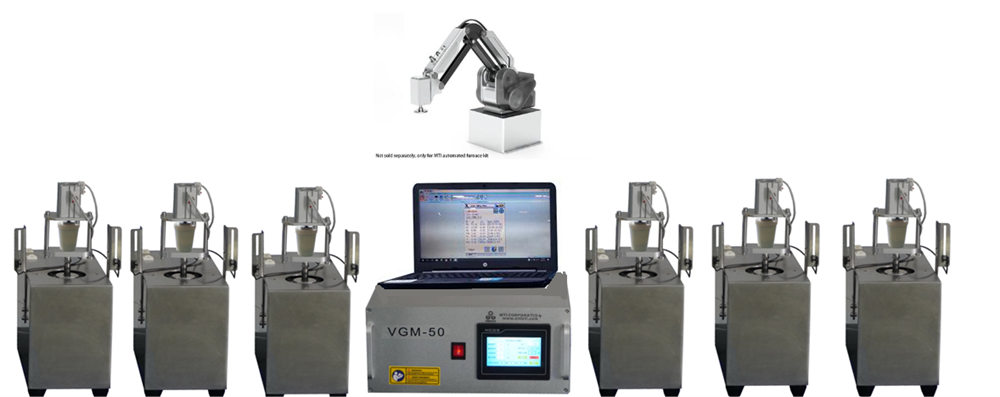

Optional	RS485 PC port and software are available for running multi-device up to 8 units Robotic arm and software are available to load and unload mill jars jar automatically
Compliance	CE Certified NRTL certification is available at an extra cost
Application Notes	To reduce the milling jar and ball's contamination to sample, please fill at least 30% volume sample before milling, then start milling the powder sample at low speed, and let the sample coat on the surface of the jar and ball, then run at the high speed
