15T Hydraulic Press with 0.5" Heatable Die (250C Max) for Cold Sintering Process (CSP) - YLJ-CSP-15

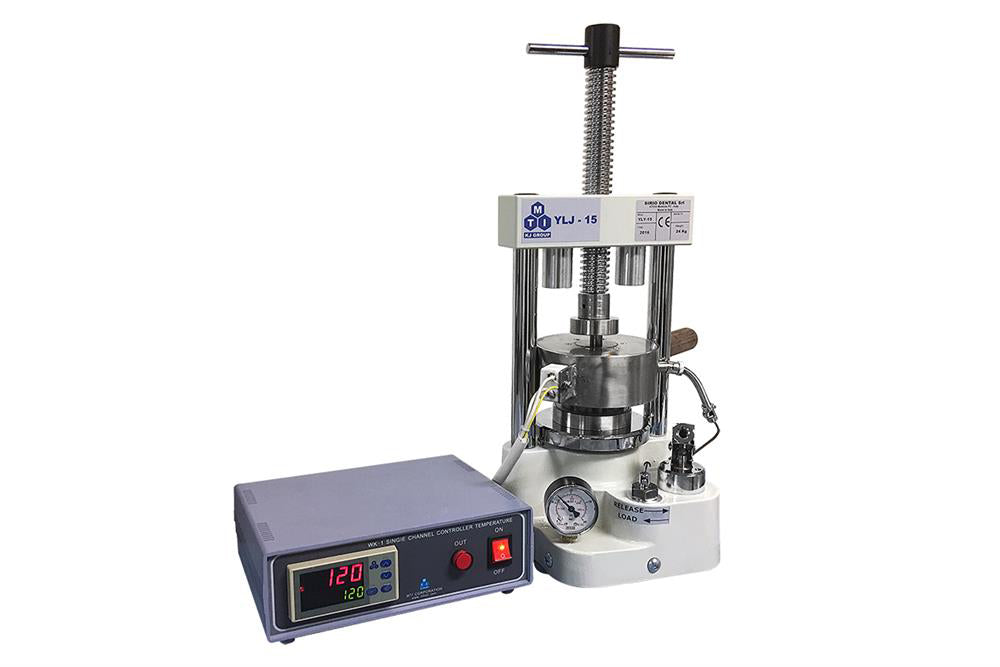

YLJ-CSP-15 is a 15 T max. manual hydraulic press with heatable uniaxial die (0.5" ID) up to 250 ºC max. It is designed for the cold sintering process (CSP) of ceramic, polymer, or ceramic-polymer composite materials for applications such as microwave dielectric materials, solid-state electrolyte, and semiconductor. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment. Reference: Application Note: Preparation of LAGP Sheets by Cold Sintering Process (CSP) Cold Sintering: A Paradigm Shift for Processing and Integration of Ceramics Cold Sintering Process of Composites: Bridging the Processing Temperature Gap of Ceramic and Polymer Materials

SPECIFICATIONS:

Working Pressure	0~15 Metric Tons
Gauge Pressure Value to Force Conversion	Gauge Displayed Pressure Value (Bar) 50 100 150 200 250 300 350 400 Actual Force Applied on the Hydraulic Cylinder (Ton) 1.9 3.8 5.8 7.7 9.6 11.5 13.3 15.4 Actual Pressure Applied on 0.5" ID Die (MPa) 147 294 441 588 735 882 1029 1176 Notes:  Gauge displays force in both PSI and Bar units for versatility (click picture on the left to enlarge) Please follow the Force Conversion table above to obtain the equivalent force applied on the Hydraulic Cylinder according to the pressure gauge Notice: Please close the Release Lever before transporting the press into the glovebox via the air-lock chamber. It will cause oil leakage if transported with the lever open. Displayed Pressure Value to Actual Applied Force Conversion: 26 bar = 1 Ton The actual force applied to the Hydraulic Cylinder (Ton) equal to the force applied on your working piece For calculating the actual pressure applied to your working piece, please follow the equation below: F=P_(Gauge Displayed Pressure Value (GDPV)) ×S_(Cross-section area of the inside piston) Since 1 Bar = 1.0197 kg/cm^2, Diameter of the piston is 7cm Assume Gauge Displayed Pressure Value is 100 F=101.97 ×π×(D/2)^2=3922.78 kg Force≈3.9 Ton force Therefore, From pressure gauge value to actual force is 26.31 Assume Diameter of your Die is 4 cm, and Gauge Displayed Pressure Value is also 100 Bar Then, the actual pressure on your working piece is: P_(actual on working piece )= F/S_(Cross-section area of the working piece ) P_(actual on working piece )= (3.9 Ton)/(12.56 cm^2 )=310 Bar In general: P_(actual on the working piece )=(P_( GDPV)/26.31) / (π*r_(Crosection area of the working piece)^2 )
Pressure Stability	<1 MPa /10 min
Heatable Dies	0.5" ID heatable dies with high strength tool steel of hardness >RC60 Optional Die with electric insulating BN liner is available at extra cost for researching the sample's conductivity vs pressure ( See Pic 1 below). BN liner is consumable, which only can be used one time ( order spare BN by click Pic 3) If use BN liner, the special die with 10.75 mm ID die must be ordered together ( click pic 2 below) For larger heatable dies such as 1.5" ID, please choose the 40T electric hydraulic CSP press YLJ-CSP-40A Pic 1 (Pic 2)  Pic 3
Working Temperature Range	50 - 250 ºC
Temperature Control	30 segments programmable digital temperature controller with overheating protection PID auto-tune function with +/- 1 ºC stability Standard: 208  VAC (single phase) Optional: Please order a 1000W 110V-220V transformer for using under 110 V
Bottom Cylinder Travel Distance	0 - 13 mm
Top Support Screw Adjustable Height	215 mm

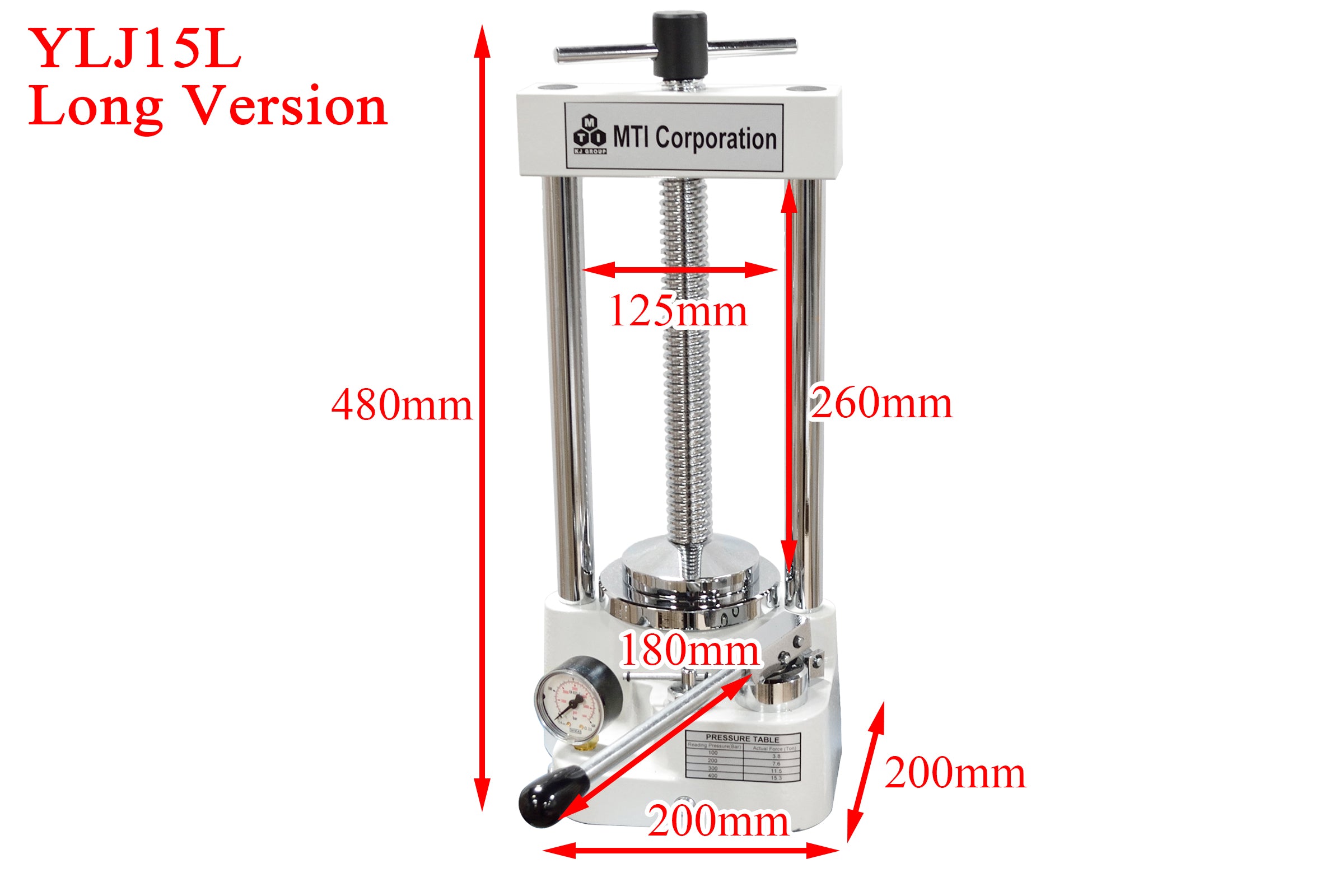

The dimension of Working Space Under Frame	D1: 120 mm D2: 70 mm D3: 124 mm H1: 180 mm H2: 155 mm
Heatable Die Dimension
Compliance	CE Certified NRTL certification is available at extra cost
Application Notes	Preparation of LAGP Sheets by Cold Sintering Process (CSP) Thoroughly clean the die pieces immediately after the use to avoid corrosion from the cold sintering process! To avoid pressing die cracking, assemble all the pressing die pieces without the sample before the CSP experiment and pre-heat them without applying pressure. The pressing die cannot be used for pressing powder with a particle size < 30 microns. Small particles may slip into the gap between pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns power to the pressing die to avoid the damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment. Warning: Customers must always wear protection goggles during operation !!! Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (13 mm) This compact press can be placed inside various glove boxes for cold sintering process of air sensitive materials under inert gas

STANDARD PACKAGE:

No.	Descriptions	Qty.	Image
1	YLJ-15 compact hydraulic pellet press	1 unit
2	EQ-HC-D heatable pressing die with temperature controller	1 unit
3	Operation manual CD	1 pc
