SKU: ylj-hp300e

Price: RFQ

Specifications

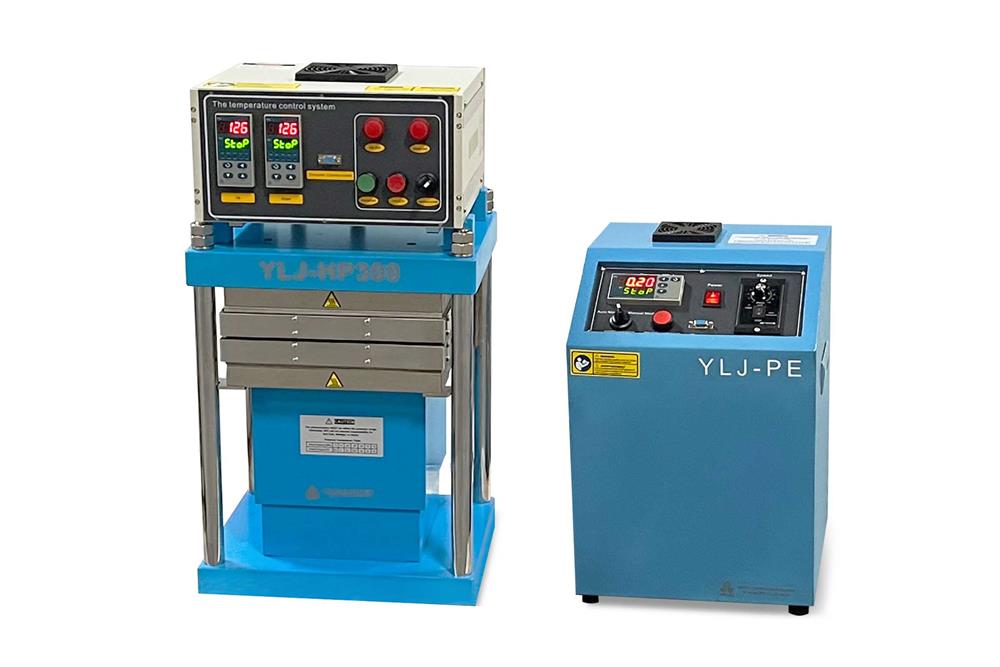

 YLJ-HP300E is a 200°C Max. 40T lamination hot press with an electric hydraulic pump. The temperatures of the heated platens are controlled by two digital temperature controllers separately up to 200°C. The platens (300 x 300 mm area) are made of hardened Cr12MoV alloy with a flat surface. Water cooling jackets are installed on the heating platens that allow the heated platens to get faster cooling. It is an excellent tool for preparing polymer and ceramic samples. SPECIFICATIONS: Electric Hydraulic Pump Power: 208-240VAC, 50/60Hz 180 W AC motor. Programmable and automatic pressure control up to 70 MPa Accuracy: +/- 0.5MPa in high pumping speed, +/-0.1 MPa in low pumping speed Built-in digital 30-segment programmable pressure controller to set up multi-step pressurization and dwell time The PC software is included for setting up the pressure program and data logging. Max. Working Pressure Gauge Displayed Pressure Value (MPa) 5 10 20 25 30 41 55 Actual Force Applied on the Hydraulic Cylinder (Ton) 5.5 8 15 18.5 22 30 40 The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece For calculating the actual pressure applied to the working piece, please follow the equations below: P = T/(πr^2) x g x 10 P: Pressure (MPa) applied to your working piece T: Force (Ton) applied to the Hydraulic Cylinder g: Standard gravity. g ≈ 9.8 m/s 2 π: ~3.14 r: Radius (cm) of the working piece *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm 2 Laminating Hot Press Power: 208 - 240 VAC, 50/60Hz, single phase 4.5 kW max. 20A circuit breaker is required for 220V, 5' length power cable included, but no plug Platen Area: 300 mm x 300 mm (12"x12") Material: Harden Cr12MoV alloy Surface: Flattening with CNC grinding The parallelism between two plates: < 0.1 mm within 10"x10" area at 200°C Plate surface roughness: < 2 microns Max. Travel Distance 80 mm Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm) Pressing Plate Max. Opening Height 79 mm Max. Working Temperature 500 °C Max. < 60 minute 400 °C continuous with water cooling Heating Rate & Cooling Rate ≤ 2°C/min Water Cooling Jacket Two water cooling jackets are built on the back of the top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you to cool the sample as soon as the hot pressing process is completed. One recirculating water chiller is required but not included in the standard package. Both the KJ5000 water chiller and the KJ5300 water chiller would be suitable for the operation. Temperature Control Two digital controllers are installed in one box with 30 segments programmable and auto-tune function Temperature accuracy ±2°C The PC software is included for setting up the temperature profile and data logging. Note: The PC software for setting up the temperature and the pressure are two different software, but both controllers can be connected to a single PC and both software can be run at the same time. Compliance CE Certified for the whole system NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply Application Note The Hot Press can be placed inside of a glovebox and a temperature controller and the pump will be put outside of the glovebox Pic. 1 The hot press can be used for measuring the thermo-electric generator module ( top hot and bottom cool) Pic. 2 Pic. 1 Pic. 2

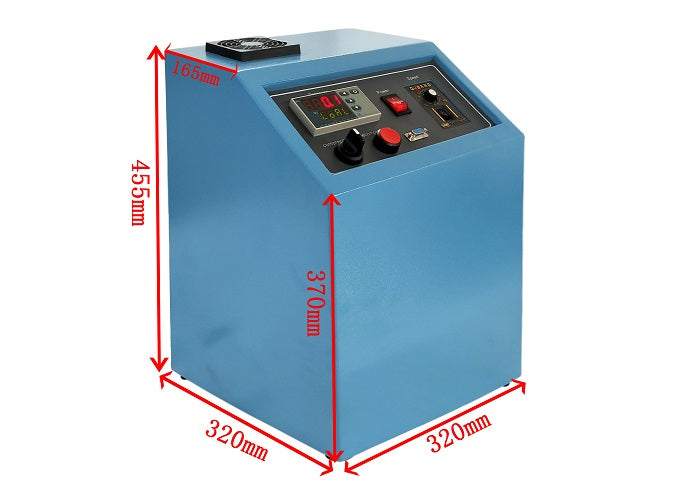

Electric Hydraulic Pump
  • Power: 208-240VAC, 50/60Hz
  • 180 W AC motor.
  • Programmable and automatic pressure control up to 70 MPa
  • Accuracy: +/- 0.5MPa in high pumping speed, +/-0.1 MPa in low pumping speed
  • Built-in digital 30-segment programmable pressure controller to set up multi-step pressurization and dwell time
  • The PC software is included for setting up the pressure program and data logging.
Max. Working Pressure
Gauge Displayed Pressure Value (MPa)  5  10   20 25   30  41 55
Actual Force Applied on the Hydraulic Cylinder (Ton)  5.5 8 15 18.5 22 30  40
  • The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece
  • For calculating the actual pressure applied to the working piece, please follow the equations below:
  • P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

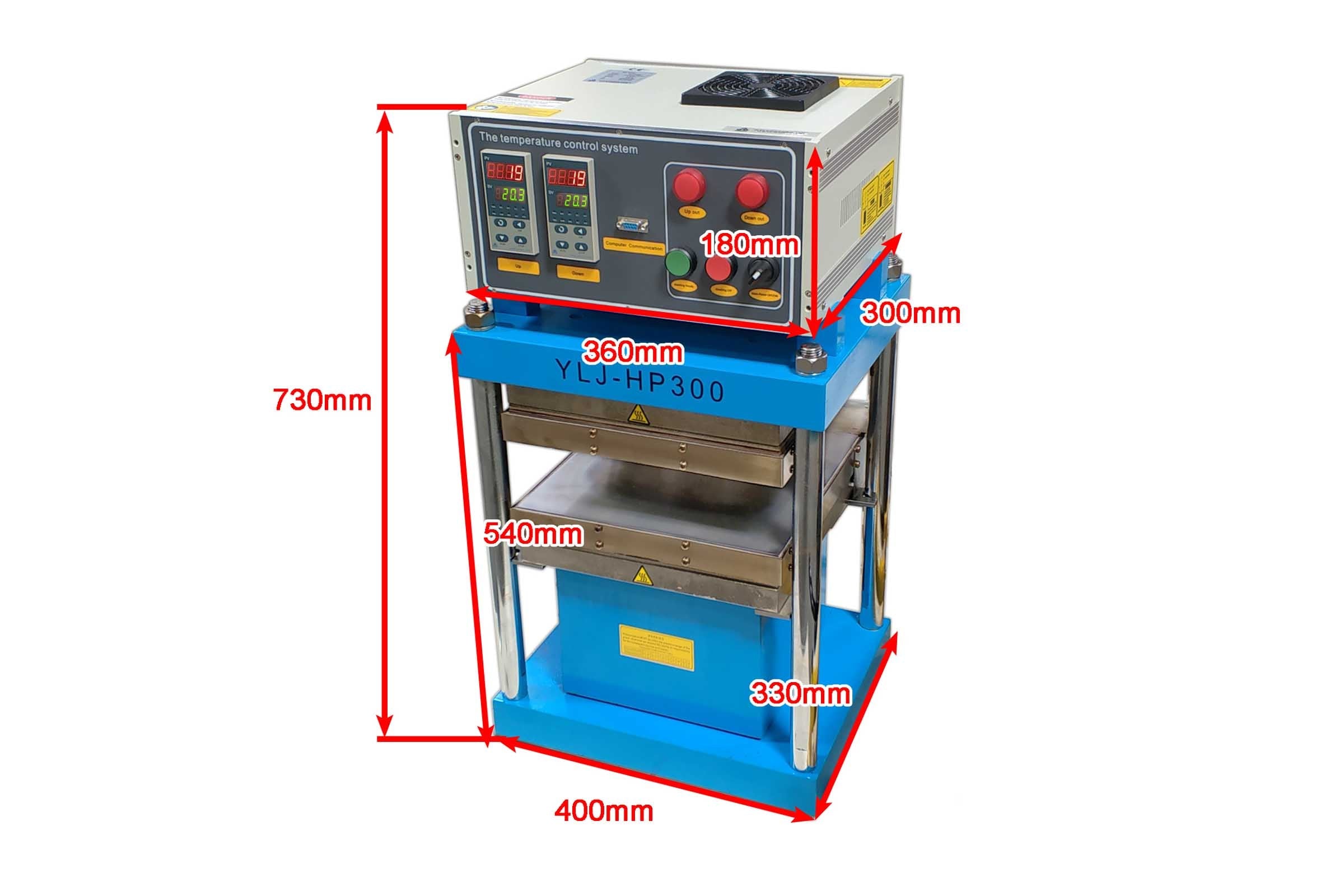

Laminating Hot Press
  • Power: 208 - 240 VAC, 50/60Hz, single phase
  • 4.5 kW max.
  • 20A circuit breaker is required for 220V, 5' length power cable included, but no plug
  • Platen Area: 300 mm x 300 mm (12"x12")
  • Material: Harden Cr12MoV alloy
  • Surface: Flattening with CNC grinding
  • The parallelism between two plates: < 0.1 mm within 10"x10" area at 200°C
  • Plate surface roughness: < 2 microns
Max. Travel Distance
  • 80 mm
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm)
Pressing Plate Max. Opening Height
  • 79 mm
Max. Working Temperature
  • 500°C Max. < 60 minute
  • 400°C continuous with water cooling
Heating Rate & Cooling Rate
  • ≤ 2°C/min
Water Cooling Jacket
  • Two water cooling jackets are built on the back of the top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you to cool the sample as soon as the hot pressing process is completed.
  • One recirculating water chiller is required but not included in the standard package.

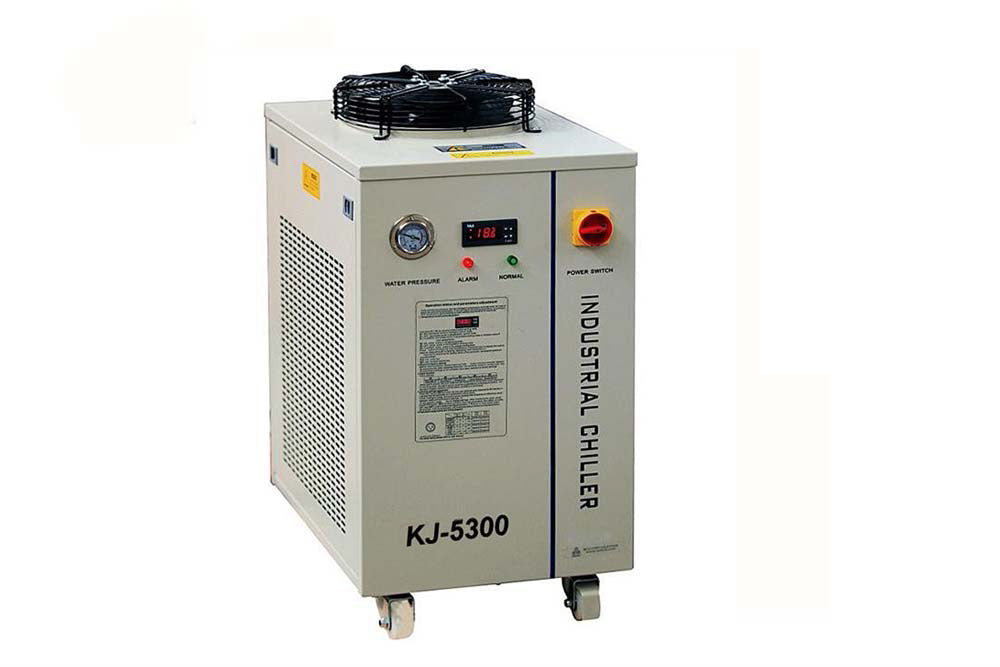

    Both the KJ5000 water chiller and the KJ5300 water chiller would be suitable for the operation.
  •
Temperature Control
  • Two digital controllers are installed in one box with 30 segments programmable and auto-tune function
  • Temperature accuracy ±2°C
  • The PC software is included for setting up the temperature profile and data logging.
  • Note: The PC software for setting up the temperature and the pressure are two different software, but both controllers can be connected to a single PC and both software can be run at the same time.
Compliance
  • CE Certified for the whole system
  • NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply
Application Note
  • The Hot Press can be placed inside of a glovebox and a temperature controller and the pump will be put outside of the glovebox Pic. 1
  • The hot press can be used for measuring the thermo-electric generator module ( top hot and bottom cool) Pic. 2
  •  Pic. 1  Pic. 2
,
Gauge Displayed Pressure Value (MPa)  5  10   20 25   30  41 55
Actual Force Applied on the Hydraulic Cylinder (Ton)  5.5 8 15 18.5 22 30  40
