Description

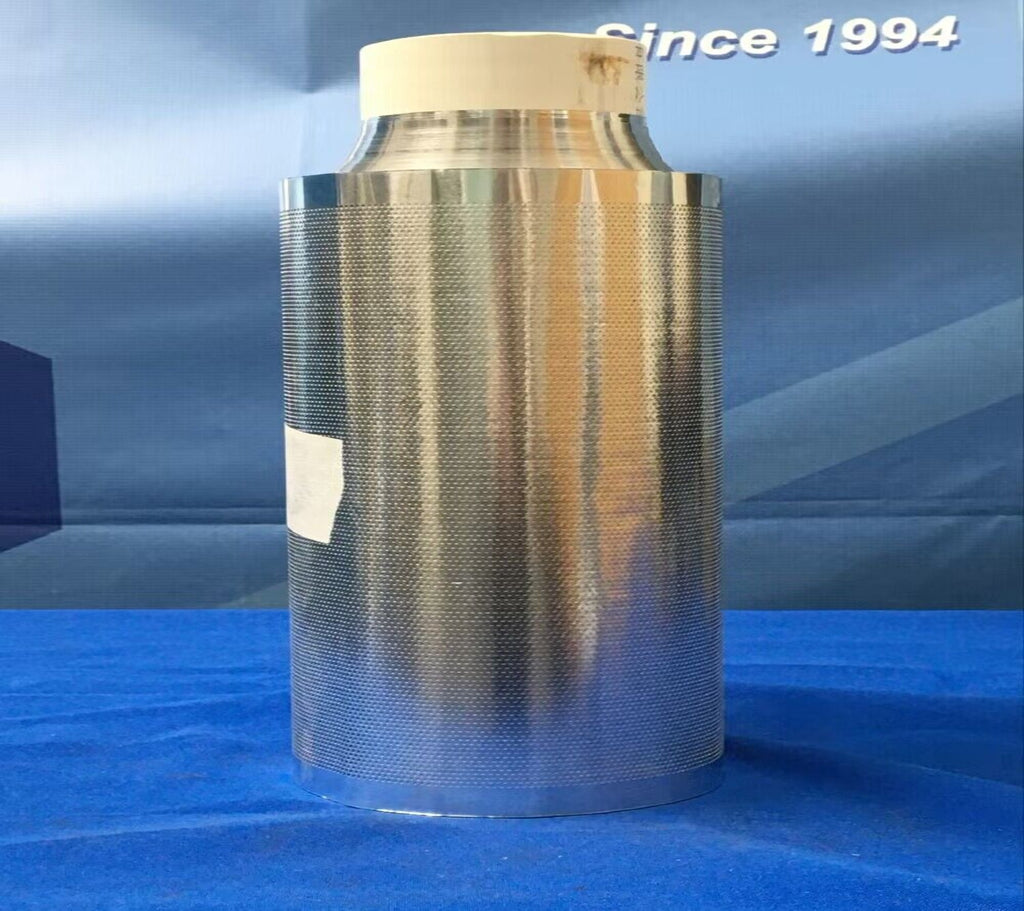

 This aluminum mesh foil (20um thick) is used as substrate for coating cathode materials in Li-Ion rechargeable battery research. Mesh aluminum foil is 40% less weight than solid foil and can accept more electrode materials. Please select the length of foil in option bar.

Item Number EQ-bcanf-20u-12
Net Weight of Foil (kg) about 1.2 kg
Length of Foil (Meter)
(Estimated by weight : 0.85 g  each 100 mm Length ) 		 ~130 m
Material Aluminum, Purity> 99.99%

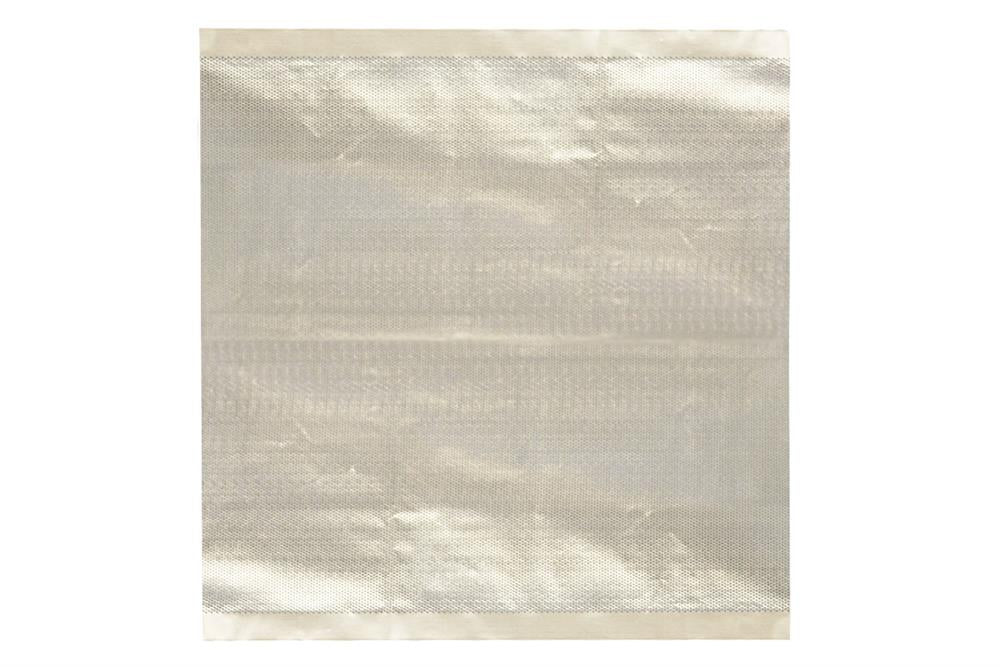

Width 265mm  ( 237mm mesh pattern area and 14mm flat margin on each side, click the image in below for details)
Thickness 20 um
Pore Size Φ1.5 mm
Open area ~45% for meshed area
Package
  • Sold in roll only
  • Shipped in vacuum bag


Application Video 		Click the video below to see the battery anode coated by MTI's Film coater MSK-AFA-II-VC



Warning
  • Consumable items are not returnable, except for defective as receiving.
  • Storage conditions:
    • Environment temperature < 28°C
    • Humidity < 60%
    • Air-free
