Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
  • Automated 16-channel Powder Dispensing System- AM-PD16
Automated 16-channel Powder Dispensing System- AM-PD16

Automated 16-channel Powder Dispensing System- AM-PD16

SKU: am-pd16

Price: RFQ

Specifications

 AM-PD16 is an automated powder-dispensing system for high-throughput and autonomous experiments in the condensed phase. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder quickly and accurately up to 100 g ± 1 mg. The modular design can be used solely for 16 samples per batch with different composition,  It can fit an automated MTI materials preparation system for autonomous experiments for AI driven material science. The free software advances instrumental communication, data acquisition, and logging into a database. SPECIFICATIONS Power 208~240VAC, 50/60Hz, 3 kW Material Feeding System Sixteen (16) 500 ml raw material containers with mechanical stirring Sixteen (16) glass material feeders Feeding Capacity > 10 mg < 100 g Feeding Resolution 0.1 mg Feeding Accuracy 1 mg Note: accuracy may vary upon particle sizes, powder aggregation, Sample Holder Plastic tray with six (16) 30 ml plastic containers Process Program compositions for each sample. Place the sample tray with 16 empty plastic containers The robot arm will pick up a container and put it on the precision balnce Rotary holder with 16-element glass feeder will dispense powder into the container as programma Once finished per composition , the robot arm will take the container put on the tray. Compliance and Warranty CE certified NRTL or CSA certification is available upon request at an extra cost 1-year warranty with lifetime support Optional A 6-16 channel automatic solid powder dosing system is available upon request.

Power
  • 208~240VAC, 50/60Hz, 3 kW
Material Feeding System
  • Sixteen (16) 500 ml raw material containers with mechanical stirring
  • Sixteen (16) glass material feeders
Feeding Capacity
  • > 10 mg
  • < 100 g
Feeding Resolution
  • 0.1 mg
Feeding Accuracy
  • 1 mg
  • Note: accuracy may vary upon particle sizes, powder aggregation,
Sample Holder
  • Plastic tray with six (16) 30 ml plastic containers

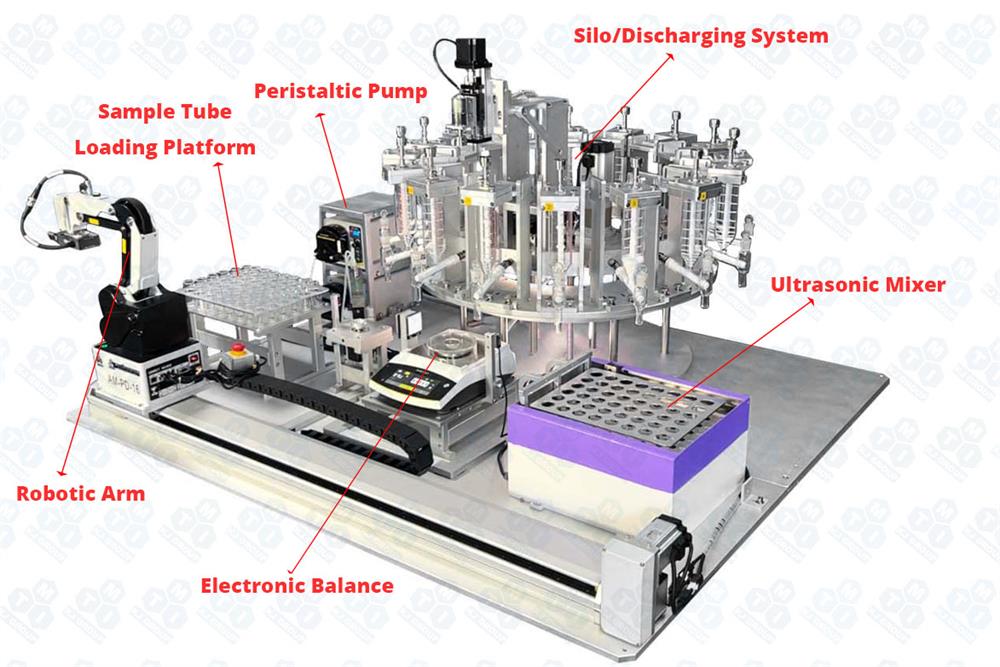

Process
  • Program compositions for each sample.
  • Place the sample tray with 16 empty plastic containers
  • The robot arm will pick up a container and put it on the precision balnce
  • Rotary holder with 16-element glass feeder will dispense powder into the container as programma
  • Once finished per composition , the robot arm will take the container put on the tray.
Compliance and Warranty
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost
  • 1-year warranty with lifetime support
Optional

  • A 6-16 channel automatic solid powder dosing system is available upon request.
