High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
  • High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36
High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36

High Throughput 6-Channel Powder Dispenser w/ Bar-code Scanner up to 36 Composition - Bal-APD6-S36

SKU: bal-apd6-s36

Price: RFQ

Specifications

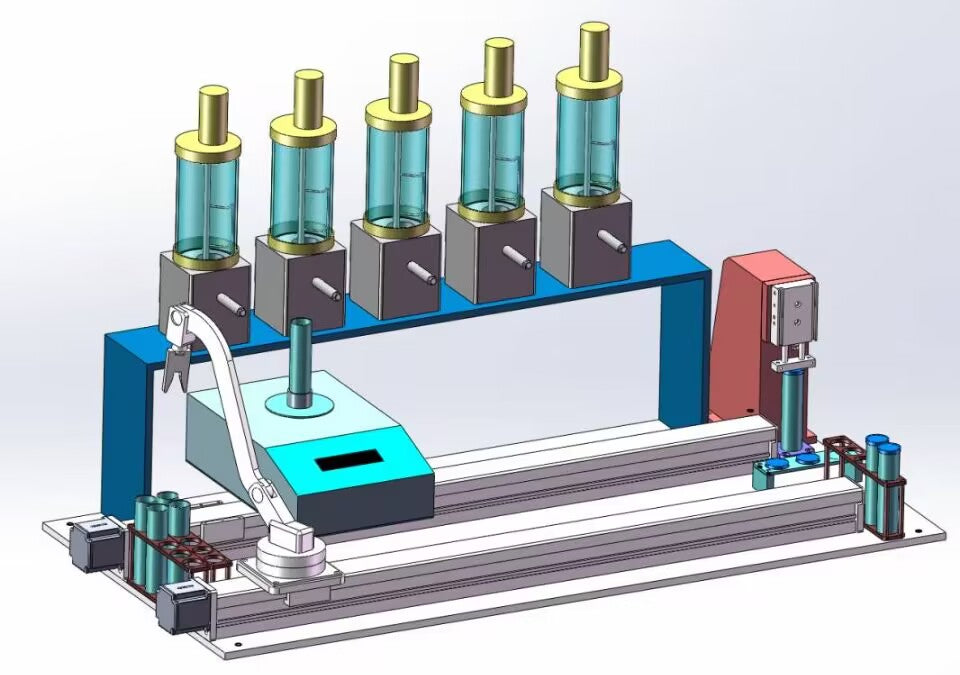

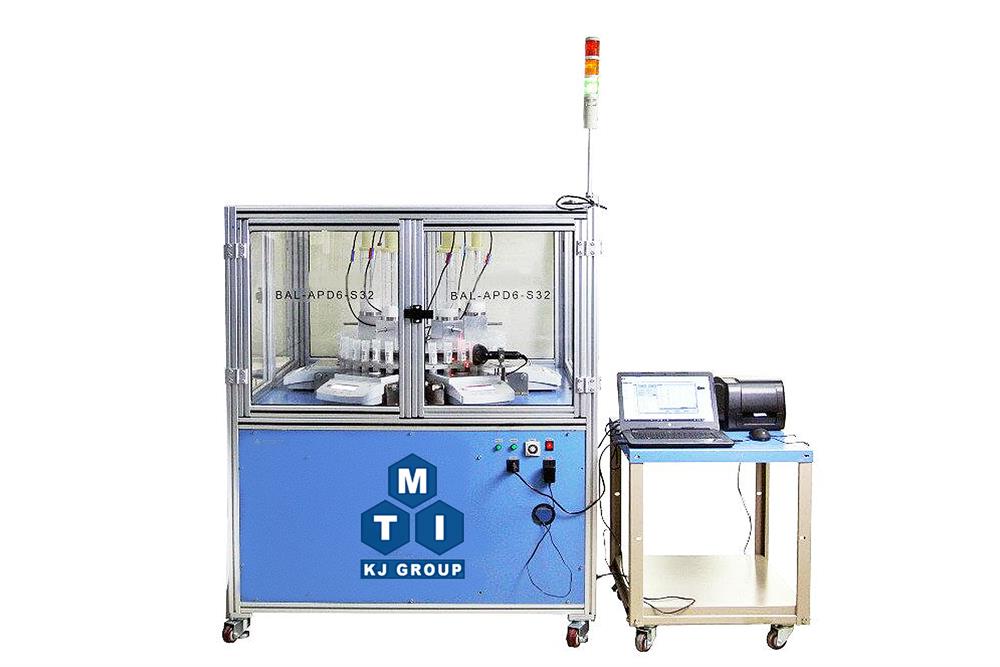

 EQ-Bal-APD6-S36 is a high throughput automatic dispenser with 6 dispensing heads and analytical balances for solid powder distribution up to 36 samples. The application interface allows the user to make dedicate programming steps for preparing samples of various weights and composition ratios with 10 mg resolution. The integrated carousel, barcode scanner, and printer provide fully automatic, unattended, reproducible and accurate data logging over the entire dispensing process. It is an ideal tool for powder sample preparation in high throughput alloy and ceramic research (such as solid electrolyte development in Lithium-ion battery). SPECIFICATIONS Features Automated dispensing with accurate and reproducible results. This eliminates human variation and user fatigue which can be the major causes of experimental variations Capable of preparing 36 samples of various composition (up to 6 sources) in one speedy, accurate and efficient dispensing workflow User-friendly interface, barcode scanner, and printer enable hassle-free programming, data logging, and sample identification Optional: the equipment may be put into glovebox for processing air-sensitive material Power 208~240VAC, 1KW Accuracy 1.0 mg resolution/accuracy/reproducibility. Please note that the actual accuracy depneds on the particle sizes, moisture content, and particle aggregation. The actual weight distribution may vary from 1 mg to 10 mg. Dispensing Capability Up to 500ml equal volume of automatic dry powder dispensing Balance Capacity 150 g maximum Powder Dispensing and Speed Automatic, fast, accurate solid powder dispensing Suitable power type: Free-flowing, fluffy, granular, electrostatically charged Dispensing speed is strongly dependent on the number of elements and sample weight For example 6 elements, 50 ml each sample, one hour may dispense 36 samples Dispensing Head 6 dispensing heads with 500ml source container Sample Jars 36 channel tube rack can hold 36 jars with 50 ml capacity each Customized jar size is available upon request Compliance CE certified NRTL or CSA certification is available upon request at an extra cost

Features

  • Automated dispensing with accurate and reproducible results. This eliminates human variation and user fatigue which can be the major causes of experimental variations
  • Capable of preparing 36 samples of various composition (up to 6 sources) in one speedy, accurate and efficient dispensing workflow
  • User-friendly interface, barcode scanner, and printer enable hassle-free programming, data logging, and sample identification

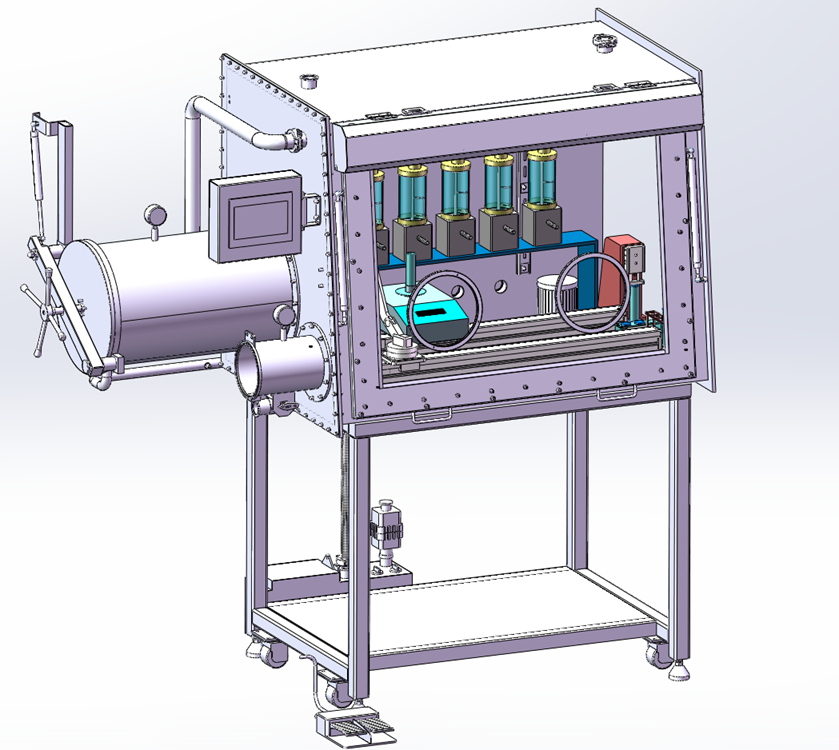

  • Optional: the equipment may be put into glovebox for processing air-sensitive material
Power
  • 208~240VAC, 1KW
Accuracy
  • 1.0 mg resolution/accuracy/reproducibility.
  • Please note that the actual accuracy depneds on the particle sizes, moisture content, and particle aggregation. The actual weight distribution may vary from 1 mg to 10 mg.
Dispensing Capability
  • Up to 500ml equal volume of automatic dry powder dispensing
Balance Capacity
  • 150 g maximum
Powder Dispensing and Speed
  • Automatic, fast, accurate solid powder dispensing
  • Suitable power type: Free-flowing, fluffy, granular, electrostatically charged
  • Dispensing speed is strongly dependent on the number of elements and sample weight
    • For example 6 elements, 50 ml each sample, one hour may dispense 36 samples
Dispensing Head
  • 6 dispensing heads with 500ml source container
Sample Jars
  • 36 channel tube rack can hold 36 jars with 50 ml capacity each
  • Customized jar size is available upon request
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost
