SKU: bc-af-241ncm-ss911

Price: RFQ

Description

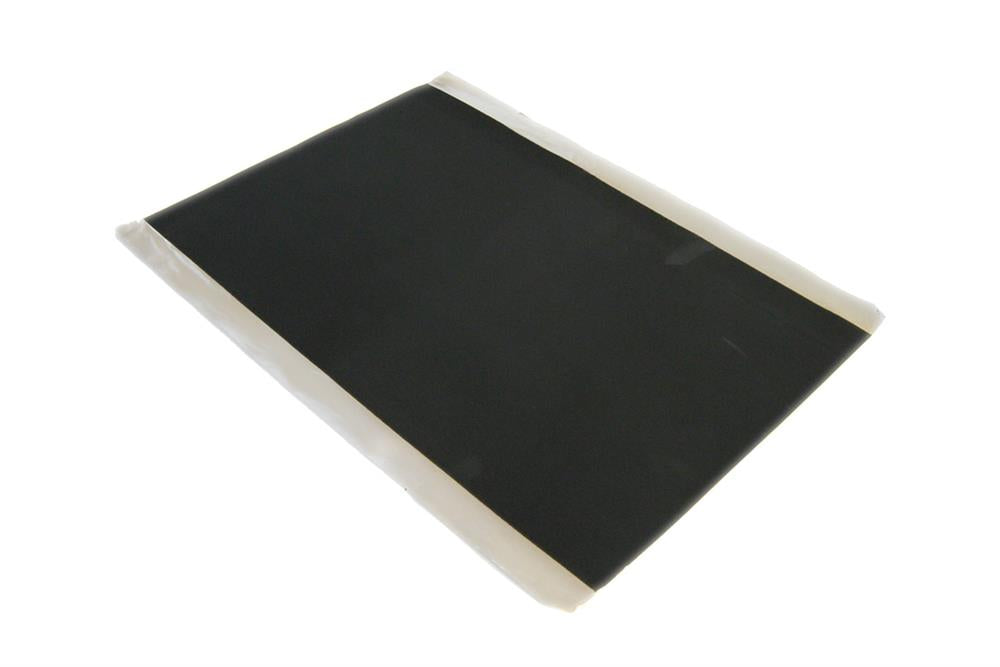

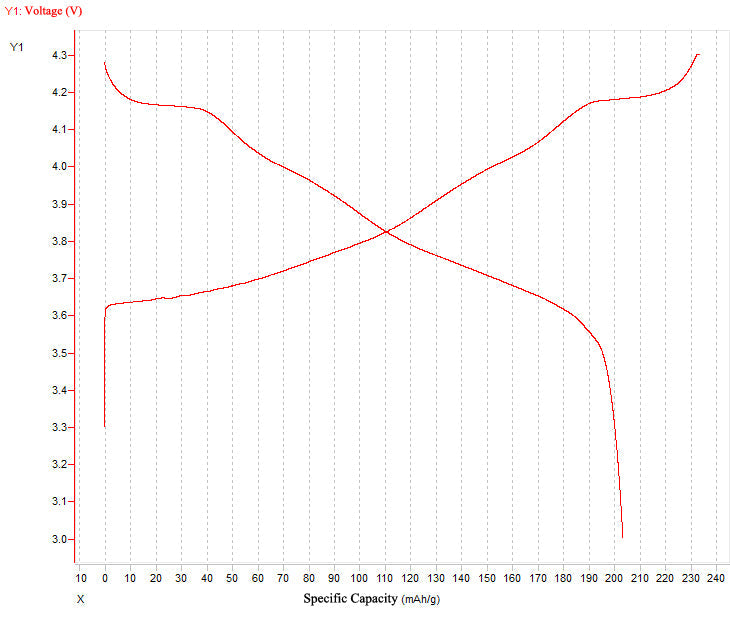

 This electrode sheet is based on Aluminum foil coated by Lithium Nickel Manganese Cobalt Oxide (Ni:Co:Mn = 9 :0.5:0.5, NCM911) on a single side and can be used as the cathode of Li-Ion battery -- 5 sheets /bag SPECIFICATIONS Material:  LiNiCoMnO2  （9:0.5:0.5) Current collector (substrate): Aluminum foil (16 microns, area density of 4.22mg/cm2) Coated Area: 241mm L x 175mm W. The edge width of blank area is 12.5 mm for each side . Single sides area density: 10.5 ± 0.20 mg/cm2 Compaction density: 3.0 ± 0.1 g/cm3 Coating Thickness: ~35 um Total Thickness: ~51 um Active Material Proportion in Powder: 95% (PVDF and Super P is 2% and 3%, respectively) Specific Capacity: 202 mAh/g [0.1C, 3.0-4.3 V vs Li/Li+, Half Cell] [ Electrolyte:1.0M LiPF6 in EC:DMC:EMC=1:1:1 Vol% with 1.0%VC ] Note:  The electrode sheet shall be stored in a vacuum box, a vacuum oven or a glove box to avoid degradation for NCM for Aluminum
