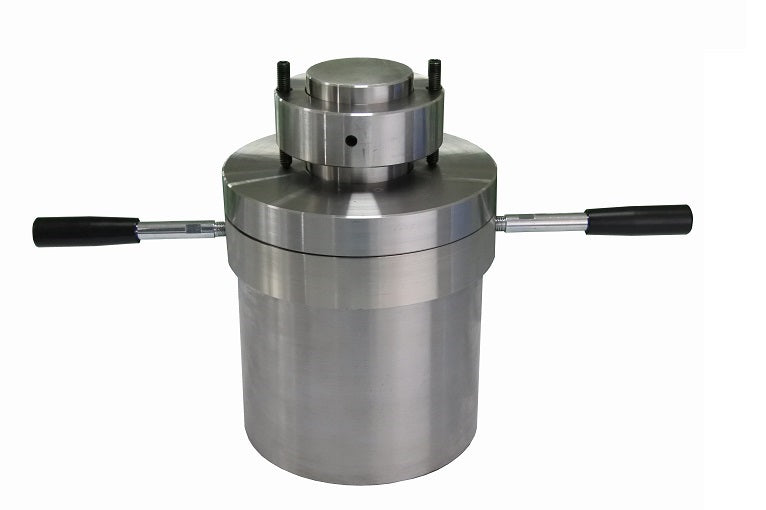

Complete CIP Die Set (150 mm ID, Max. 120 MPa Vessel) for Cold Isostatic Press - CIP150-die

Complete CIP Die Set (150 mm ID, Max. 120 MPa Vessel) for Cold Isostatic Press - CIP150-die

SKU: cip150-die

Price: RFQ

Specifications

 CIP150-Die is a Complete CIP Die Set (Max. 350 Mpa Vessel) for Cold Isostatic Press, which has a chamber of 150 mm ID x 80 mm effective depth a. It is an excellent tool for preparing Max. 5" dia. x 3" H sample with a much high density.

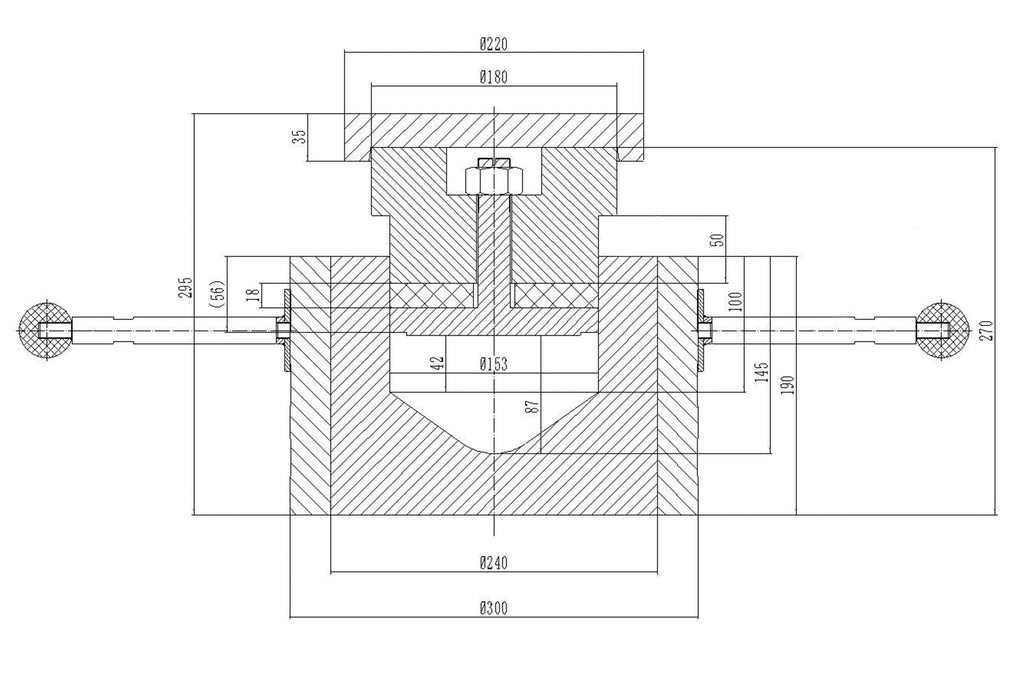

Effective CIP Vessel size
  • 150 mm I.D. x 210 mm Deep.
  • Effective sample Deep: 80 mm Max.
Vessel Pressure
  • Material: 2Cr13 alloy
  • Pressure Range: 0 - 120 Mpa
  • Pressure Speed: Mpa / min
  • Pressure force required: 200T ( Max)
  • O-ring is consumable
  • 10 pcs O-rings are included
Note
  • Never let the press hold the target pressure be longer than 8 minutes
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve have been tightened before pressing
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)



Pic. 1  Pic. 2 Pic. 3


,

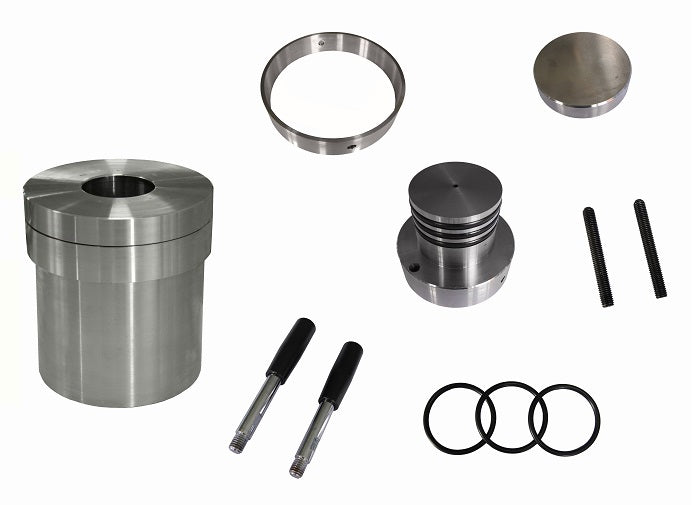

Name Qty
1 CIP pressing die 1 set
2 Black Rubber Rings O.D 110 mm  10 pc
3 Holding bar (for carrying the CIP pressing die) 2 pc
4 Pressing oil 1 bottle
5 Hex-socket wrench (for the top pressing die and degassing) 1 pc
