Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D

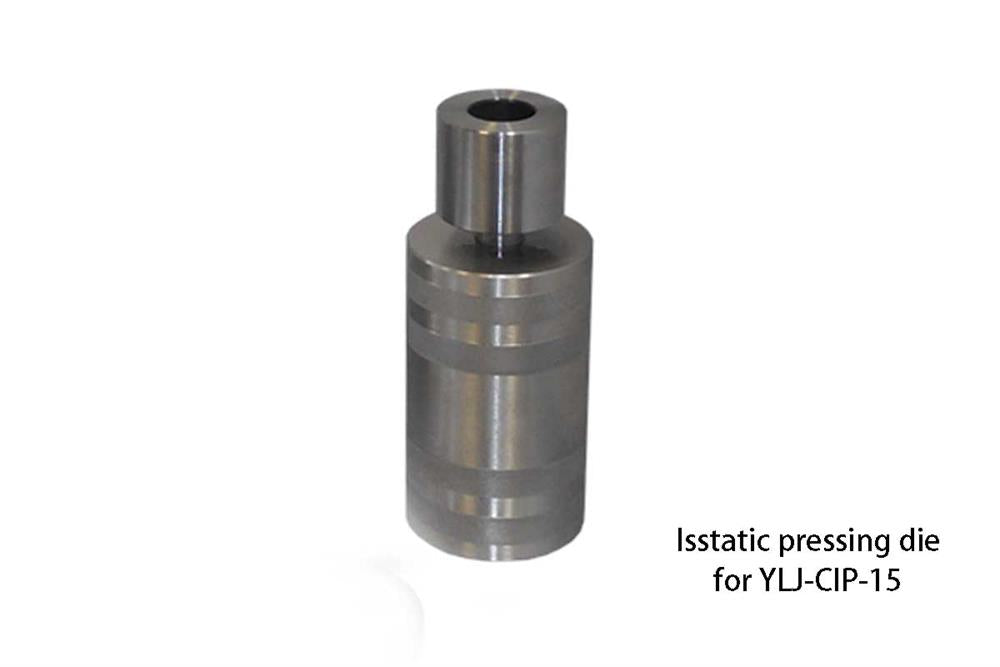

  • Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D
  • Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D
  • Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D
  • Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D
Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D

Complete CIP Die Set (22 mm ID Max.400 MPa Vessel) - CIP20D

SKU: cip20d

Price: RFQ

Specifications

 CIP20D (updated from CIP15-DIE) is a complete CIP Die Set for Cold Isostatic Press. It has a 22mm ID hydraulic chamber made by ultra-strength alloy, which can provide isostatic pressure up to 400 MPa via a hydraulic press. It is an excellent tool to prepare high-density compound pellets and a small diameter rod.

Structure
  •

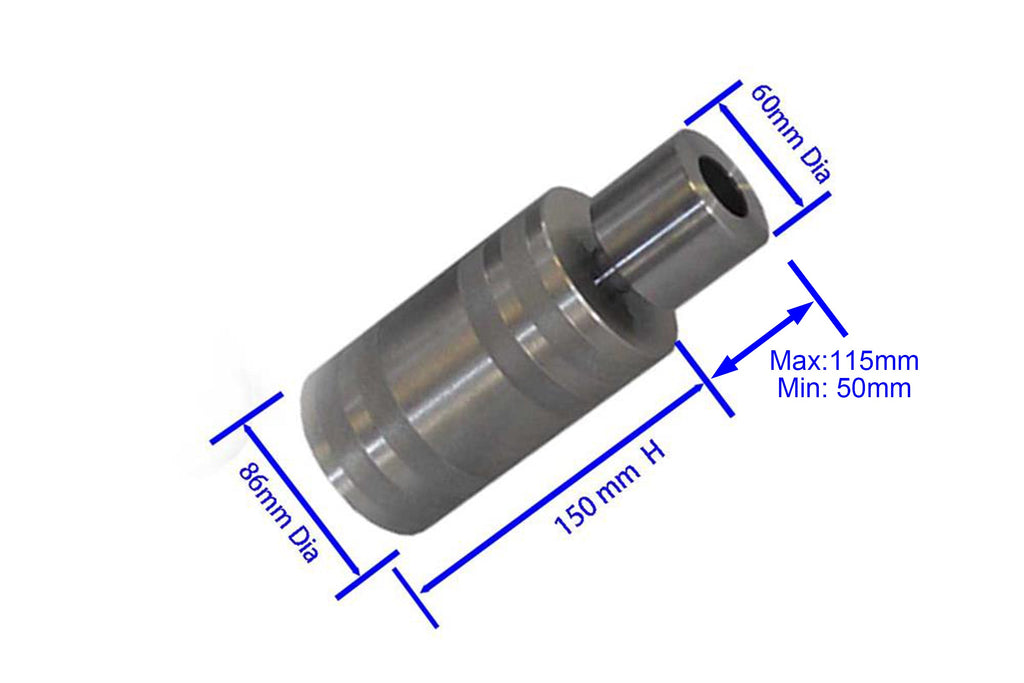

Pressure Vessel
  • 22mm ID. x 120mm Height
  • max available sample height 70mm
  • Made of high-strength alloy with a stainless steel protective jacket
Max. Hydraulic Pressure in Chamber 350 Mpa ( hold for continuous )-- ( Press setting at 13.3 T )
380 MPa ( Hold less than 5 minutes) --{ Press setting at 15T )
400 Mpa Max. Hold less than 30 seconds ( Press setting 15.5T)

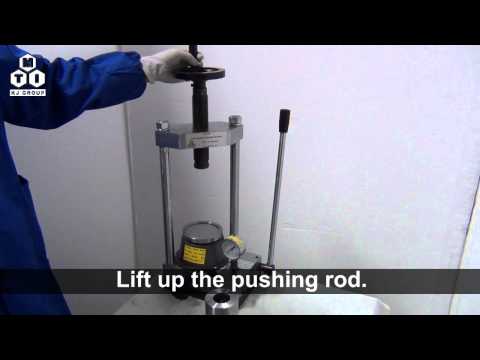

Hydraulic Machine (optional) 15 T - 24T Please click the picture below to choose a hydraulic press
Operation Temperature 10 - 40°C
Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes,
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period.
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing
  • If you order the die only and using your own press machine, , MTI is not responsible for the safety
,
Name Qty
1 Cold isostatic pressing dies (locating plate, top and bottom pressing die) 1 set
2 Black Rubber Rings O.D 7/8 " 1 pcs
3 Hydraulic pressing oil 1 bottle
4 Screw Driver 1 pc
