CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
  • CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
  • CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
  • CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
  • CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE

CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE

SKU: cip80-die

Price: RFQ

Specifications

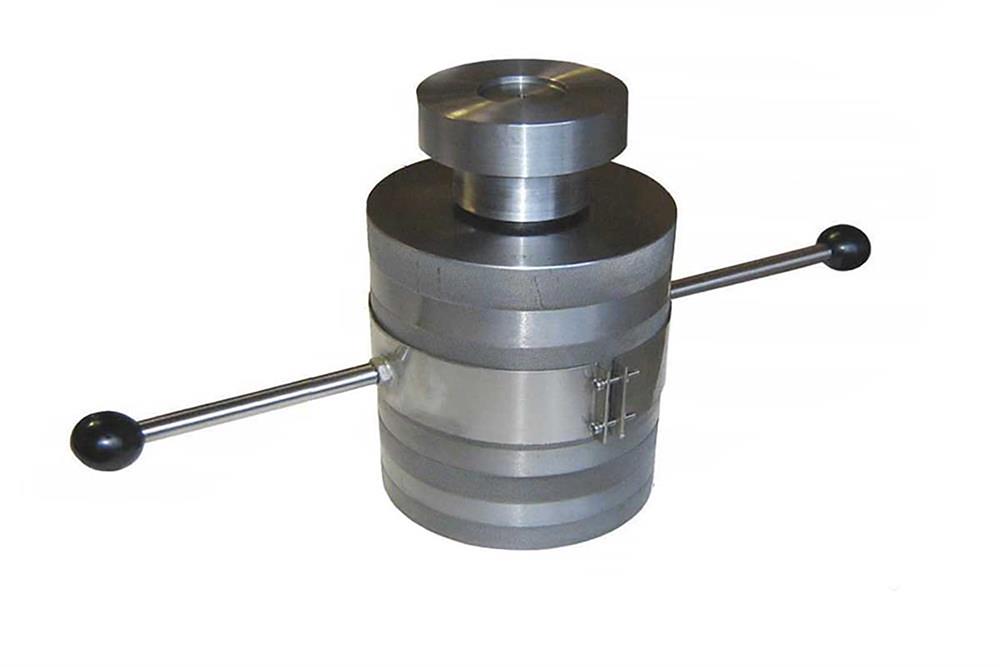

 EQ-CIP80-DIE is a Complete CIP Die Set (Max. 300 MPa Vessel) for Cold Isostatic Press, which has an 80mm ID x 180mm depth chamber. It is an excellent tool for preparing a 2" - 3“ sample with a much higher density.

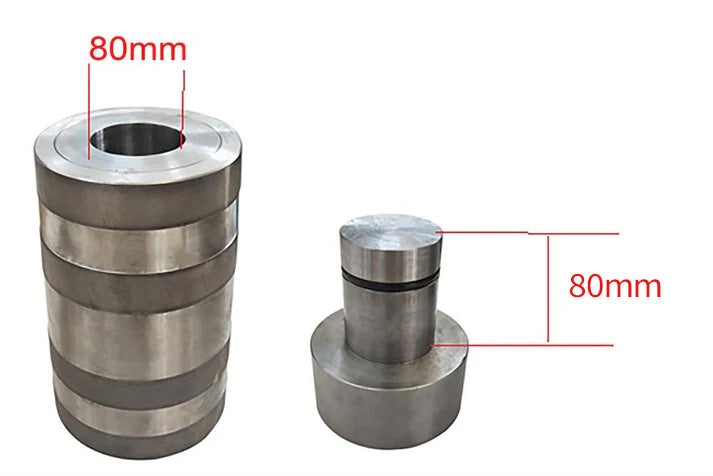

CIP Vessel size 80 I.D. x 135 Deep. mm
Vessel Pressure
  • 0 - 300 MPa
  • 1 MPa / 5 min
Actual Force Applied on the Hydraulic Cylinder (Ton)  100 150
CIP Die Pressure (MPa)   200 300




Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing
,
Actual Force Applied on the Hydraulic Cylinder (Ton)  100 150
CIP Die Pressure (MPa)   200 300
,

Die Sleeve, Upper Die Core
and two handles
 Die Cavity (80mm I.D)
filled with hydraulic oil
100-200 T Electric Hydraulic Press
,
Name Qty
1 CIP pressing die 1 set
2 Black Rubber Rings O.D 80 mm  10 pc
3 Holding bar (for carrying the CIP pressing die) 2 pc
4 Pressing oil 1 bottle
5 Hex-socket wrench (for top pressing die and degassing) 1 pc
