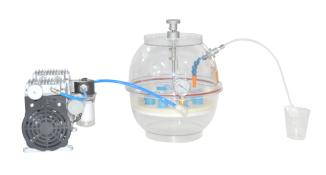

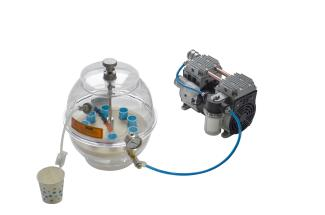

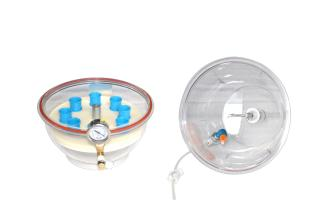

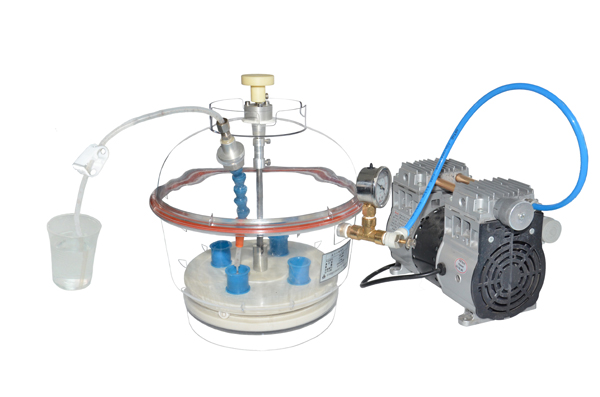

Cold Vacuum Mounting Machine - CXQ-2500

Cold Vacuum Mounting Machine - CXQ-2500

SKU: cold-vacuum-mounting-machine-cxq-2500

Price: RFQ

Specifications

 EQ-MP-300 cold vacuum mounting machine is mainly used for cold mounting of variaous samples, especially for materials that are not suitable for hot mounting, such as circuit boards, materials with micro pores, loose geological samples, etc. The working mechanism of CXQ-2500 vacuum cold mounting machine is simple, the equipment is compact, and it does not need to occupy a large area of the workbench. It can mount multiple samples at one time. The size and shape of the mounted samples can be adjusted through different mounting molds. In industry, it can also be used in combination with dyes to inspect various defects in workpieces. The mechanism of this machine is to extract the air out of the pores of the sample by vacuuming, then utilize the effect of atmospheric pressure to press the mounting material or dyeing agent into the microscopic pores, after a certain amount of time solidify into a certain shape after being cured by the curing agent. It's easy to operate and maintain. SPECIFICATIONS: Working Enviornment This device should be working under <1000m altitude, temp 25±15, humidity 55%Rh±10%Rh enviornment. Water: N/A Electricity: 110-220 VAC Gas: Vacuum Pump (0~0.1MPa) Workbench size:  400mm*400mm*700mm Ventilation deviceneeded Main Parameter Vacuum Degree: -0.08MPa Rotating Disk: Ø205mm Size: Ø280mm×330mm Packing List: 1 Rotate Disk 1 2 Liquid Inlet tube 10 3 Oil-free pump 1 4 Mosaic mold 6 5 Cup 5 6 Stirring Stick 5 N/A

Working Enviornment

  1. This device should be working under <1000m altitude, temp 25±15, humidity 55%Rh±10%Rh enviornment.
  2. Water: N/A
  3. Electricity: 110-220 VAC
  4. Gas: Vacuum Pump (0~0.1MPa)
  5. Workbench size:  400mm*400mm*700mm
  6. Ventilation deviceneeded
Main Parameter


 Vacuum Degree: -0.08MPa
Rotating Disk: Ø205mm

Size: Ø280mm×330mm

Size
,
1 Rotate Disk 1 disk
2 Liquid Inlet tube 10 tube
3 Oil-free pump 1 pump
4 Mosaic mold 6 cups
5 Cup 5 cup
6 Stirring Stick 5 N/A
