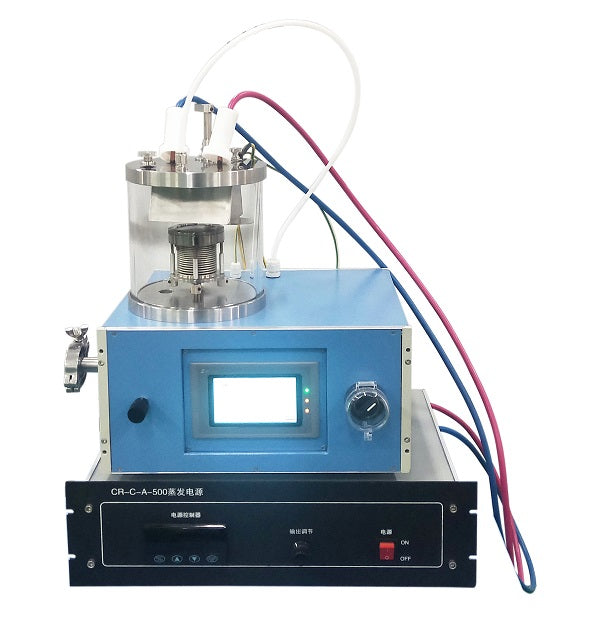

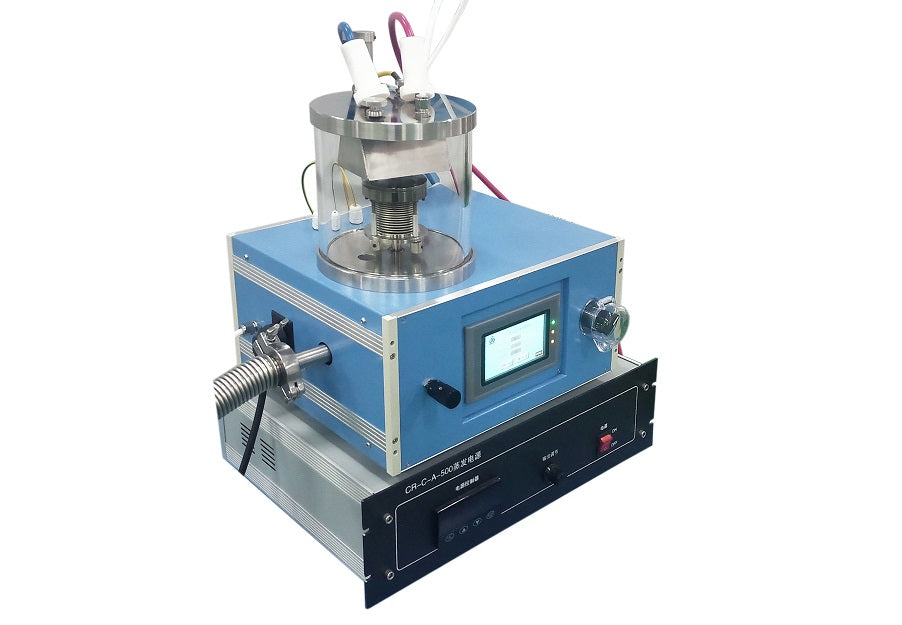

Compact Vacuum Carbon & Metal Evaporating Coater With Touch Screen Control - SPC-1

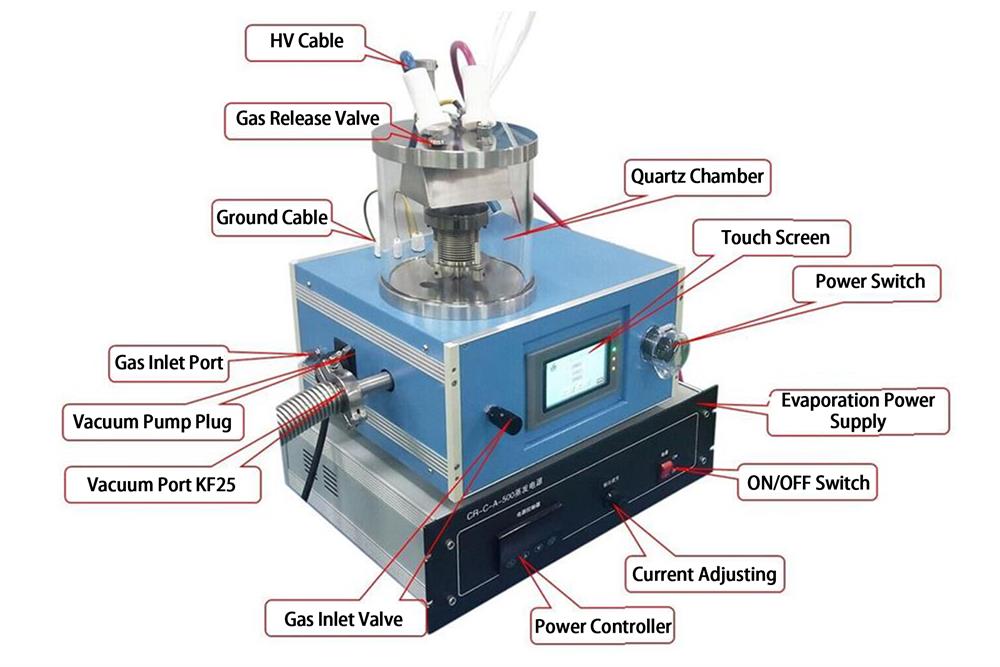

• A separate evaporation power unit is located at the bottom of the machine for easy maintenance
• Input Voltage:            AC 208 - 240V 50/60 Hz    (AC 110 - 120V is available via a transformer ) )
• Output Power:           10VAC and 50A Max.

• Power consumption:   700W
• Touch screen panel to control vacuum, evaporating current, and time

• Quartz vacuum chamber:  size  6" OD x 10” H
• The sample stage is located at the bottom: 50 mm Dia,
• The rotation function of the sample stage is optional at an extra cost. ( Rotating speed:  5 rpm )
• The height of the sample stage is adjustable
• Vacuum pump port KF25
• The valves of the gas inlet and outlet are built in.
• Touch screen panel to control vacuum, evaporating current, and time

• The tungsten heater is at the top of the flange with a manual shutter
• 3 pcs tungsten heating coils, a carbon fiber string (2 ft long) for use as the source of carbon evaporation,
• Extra spare tungsten heater is available at extra cost ( $10/ea )
• If you need other evaporation materials, please contact us, we may supply or recommend a source for you

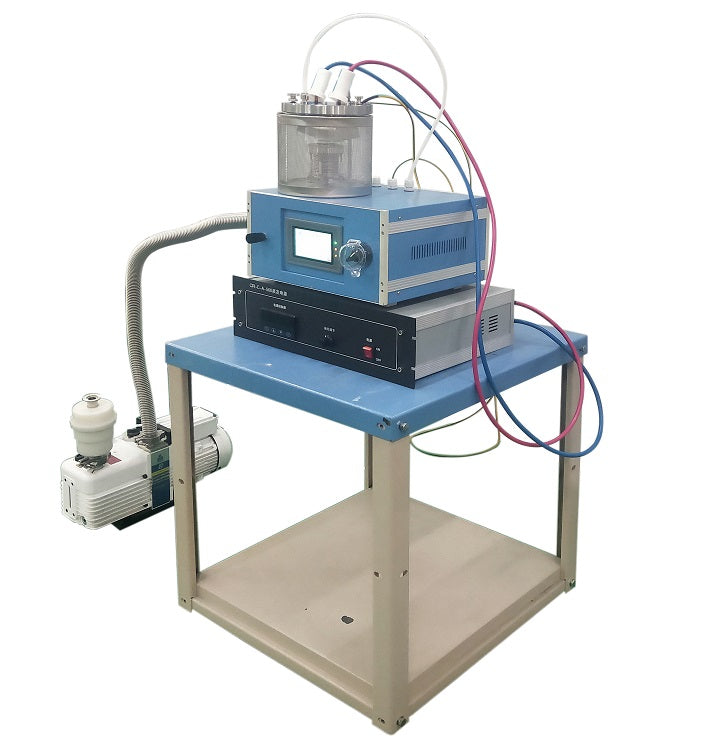

• Vacuum level10-2 Torr by Double Step Rotary Vane Vacuum Pump, and 10-5 torr by a turbo pump,
• The vacuum pump is not included, please click the link below to choose a pump
•

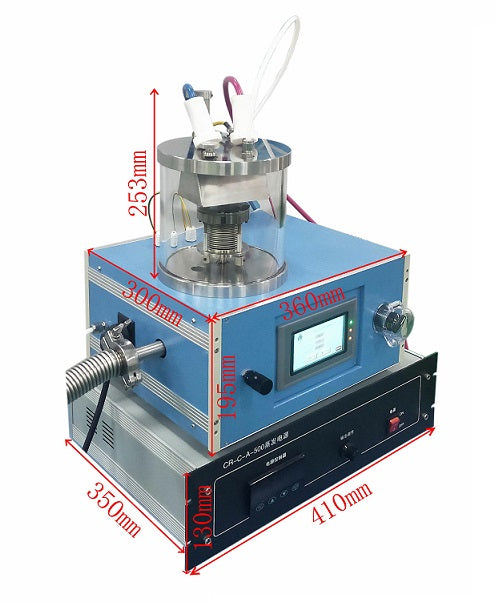

L360mm x W300mm x H380mm

• For long-term usage, the working current should be kept below 40A
• For evaporating materials with a low vapor rate, a 30A working current is good enough
• In order to get a better vacuum and less oxygen, suggest using 5%H2+ 95% N2 to the purging chamber 2-3 times before coating.
• Please view "Nat_Nano_Interconnected hollow carbon nanospheres" published by Nature, on July 27, 2014, in which the carbon evaporator was referred to for making the thin carbon nanosphere layers in Cu substrate.

• One year limited with lifetime support
• CE certified
