Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net
  • Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net
  • Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net
Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net

Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net

SKU: copper-mesh-foil-for-battery-anode-substrate-240mm-width-x-45um-thickness-x-20-meter-length-mf-cu45-net

Price: RFQ

Description

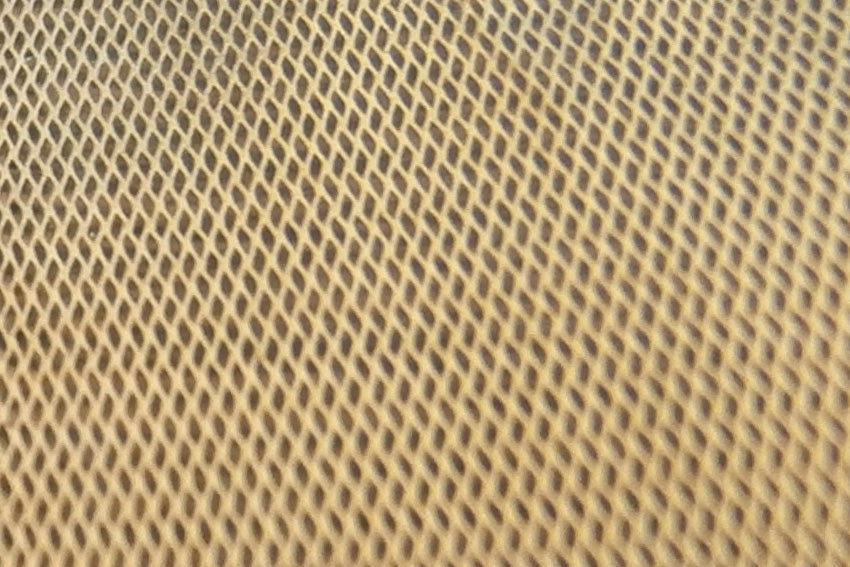

 This copper net foil (45 um)  is used as a substrate for coating anode materials in Li-Ion battery research .

Specifications

  • Material: Copper, Purity> 99.99%
  • Sold in roll only
    Shipped in the vacuum bag
    • Length:  20 meter
    • Width: 240mm
    • Thickness: 45 um
    • Density: 8.94 g·cm−3
    • Surface Density: 180±15g/m²
    • Pore Size: 0.4*1.5mm
    • Open area: ~55%
    • Net weight:  1.5 kg per roll
   Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC
