Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200
  • Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200
  • Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200
  • Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200
  • Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200
Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200

Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200

SKU: corona-air-plasma-surface-treatment-system-20-or-30-cm-width-for-substrate-cleaning-by-roll-to-roll-msk-ec-200

Price: RFQ

Specifications

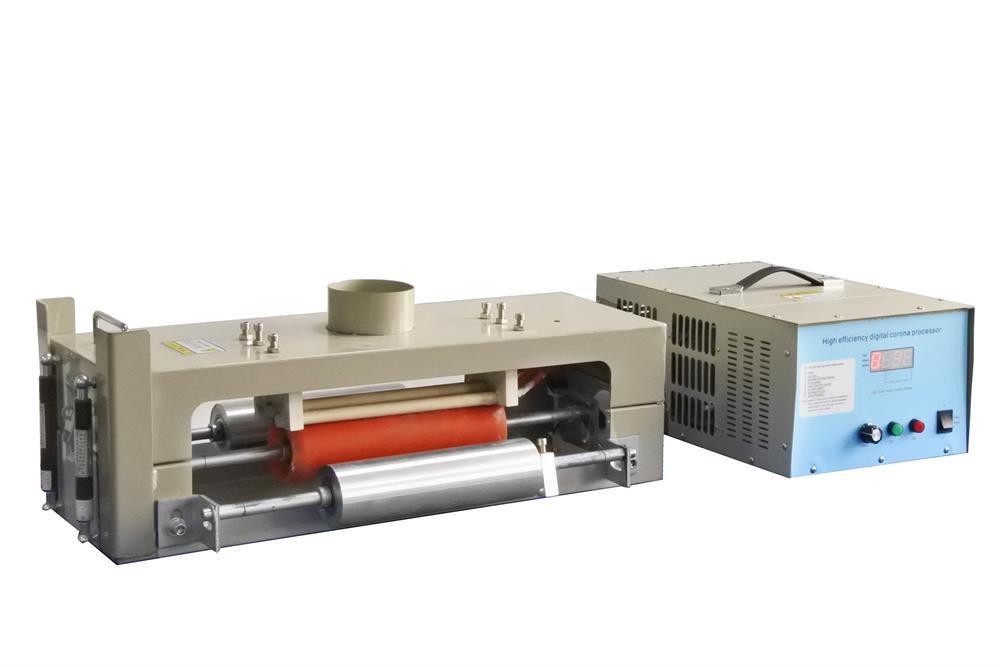

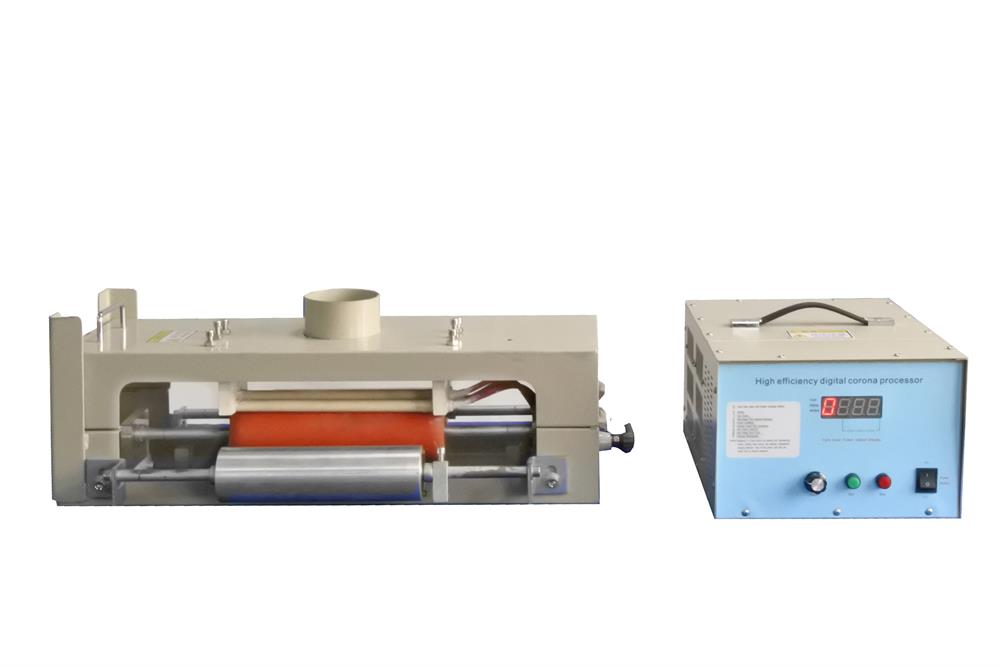

 MSK-EC-200 is a corona (also called Air plasma) treatment machine that is mainly used for the pre-processing of various cast film substrates. This device adopts a ceramic roller for discharging electrodes, it is capable of processing conductive materials such as copper foil, aluminum foil, and others. This device uses high-frequency and high-voltage electric power to generate corona discharge between the electrodes and produce low-temperature plasma, thereby modifying the polarization of the surface of the conductive foil. Such a technique can improve the adhesion of the substrate as well as the coating quality. It is widely used for materials modification, grafting, casting coating, ink printing and etc.. SPECIFICATIONS: Feature Used for the pre-processing of various substrates. for better coating Uses high-frequency and high-voltage (3kV) electric power to generate corona discharge between the electrodes and produce a low-temperature plasma Improves the adhesion of the substrate as well as the coating quality Working Voltage 220 VAC ± 10%, single phase 50/60Hz 110V version will be available with 3000W transformer at the extra cost Working Frequency 8KHz - 21KHz Max. Power Consumption 2 KW Max. Treating Width 200 or 300mm width selectable Safety Measures Built-in overload limits for the input voltage, short circuit or open circuit on output, ground, etc. Security alarm in case of accident/error occurs. Equipped with a 100 mm diameter vent port, it can be connected to the pipeline and eliminate any generated ozone gas during operation. Gas Pressure Requirement A 0.4 - 0.6 Mpa of air force is required to raise the gap of the cleaner. Air compressors and fittings are not included . Please click here to order or order from your local hardware store. Gas/Air tube size is 6. Dimension Controller Box: 300mm L x 500mm W x 240mm H Roller Unit: 600mm L x 320mm W x 370mm H Application Notes The optional roll-to-roll system and coating system can improve the adhesion of the substrate's surface and improve the coating quality. Please contact us for more details. Warning This equipment must be placed on a flat and stable working platform. Store in a dry environment, avoid moisture and rain. This equipment must be grounded during operation. Ozone will be generated while the equipment is running, be sure to evacuate the ozone gas. Insolation gloves must be worn during the operation.

Feature
  • Used for the pre-processing of various substrates. for better coating
  • Uses high-frequency and high-voltage (3kV) electric power to generate corona discharge between the electrodes and produce a low-temperature plasma
  • Improves the adhesion of the substrate as well as the coating quality

Working Voltage

 220 VAC ± 10%, single phase 50/60Hz
110V version will be available with 3000W transformer at the extra cost

Working Frequency

 8KHz - 21KHz

Max. Power Consumption

2 KW

Max. Treating Width

200 or 300mm width selectable

Safety Measures
  • Built-in overload limits for the input voltage, short circuit or open circuit on output, ground, etc.
  • Security alarm in case of accident/error occurs.
  • Equipped with a 100 mm diameter vent port, it can be connected to the pipeline and eliminate any generated ozone gas during operation.

Gas Pressure Requirement
  • A 0.4 - 0.6 Mpa of air force is required to raise the gap of the cleaner.
  • Air compressors and fittings are not included. Please click here to order or order from your local hardware store. Gas/Air tube size is 6.

Dimension
  • Controller Box: 300mm L x 500mm W x 240mm H
  • Roller Unit: 600mm L x 320mm W x 370mm H

Application Notes
  • The optional roll-to-roll system and coating system can improve the adhesion of the substrate's surface and improve the coating quality. Please contact us for more details.
Warning
  • This equipment must be placed on a flat and stable working platform.
  • Store in a dry environment, avoid moisture and rain.
  • This equipment must be grounded during operation.
  • Ozone will be generated while the equipment is running, be sure to evacuate the ozone gas.
  • Insolation gloves must be worn during the operation.
