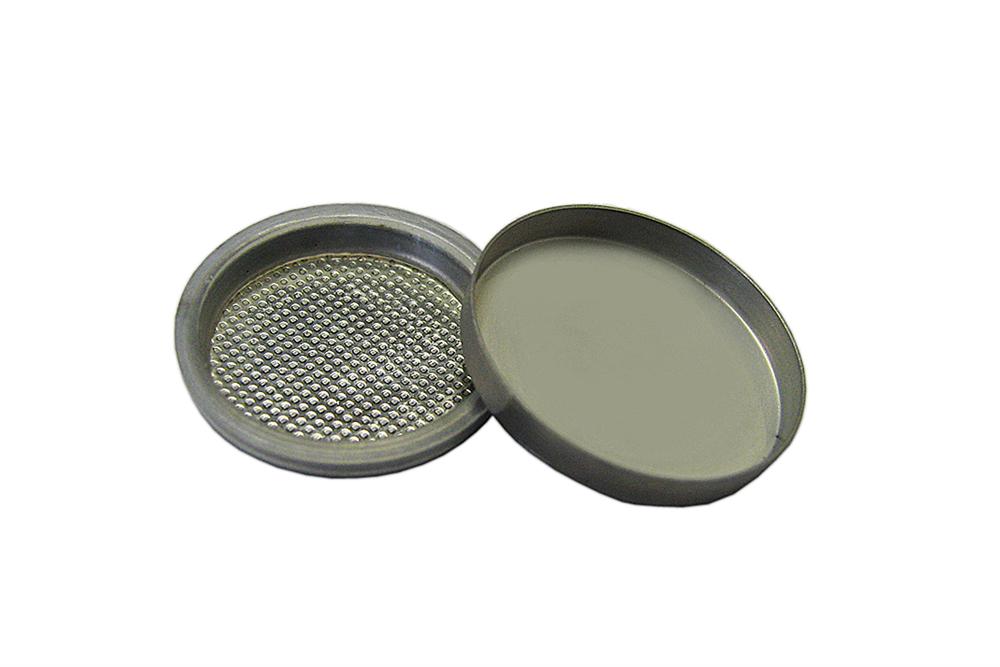

Ti-Coated CR2032 Coin Cell Case (20d x 3.2mm) for Li-ion Battery - 10 sets/pack - CR2032-CASE-Ti

This is a special CR2032 coin cell case with pure titanium coated on the inside and outside of the positive can (10 sets/pack). It can tolerate polarization of higher voltages due to the passivation by electrolyte component (especially LiPF6 based electrolyte system).

Specifications
Material	Stainless Steel 304 with pure titanium coating: Titanium coatings on both inside and outside of the POSITIVE case (bottom part, larger, connects to the Cathode with Al current collector), to prevent electrolyte from reacting with steel during high voltage charging/discharging Negative case (the top part with insulating O-ring, smaller, connects to Anode with Cu current collector): made of SS304, you may need to put Spring/Spacer in between this case and anode. Sealing Gasket: PP Max. working temperature: 80oC
Titanium coating thickness	0.8 um with 99.7% purity
Optional	Please click the picture below to order Al spacer and spring

,

,
