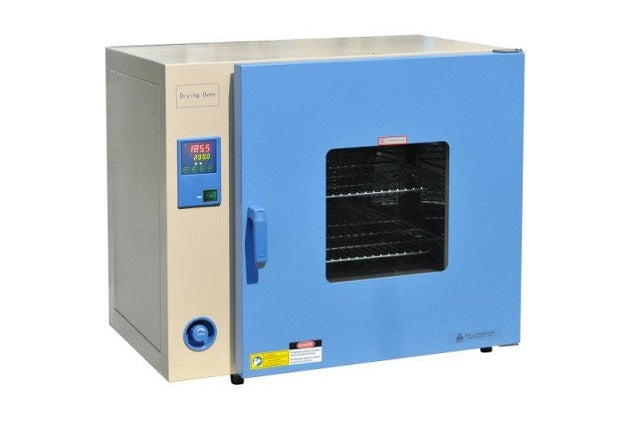

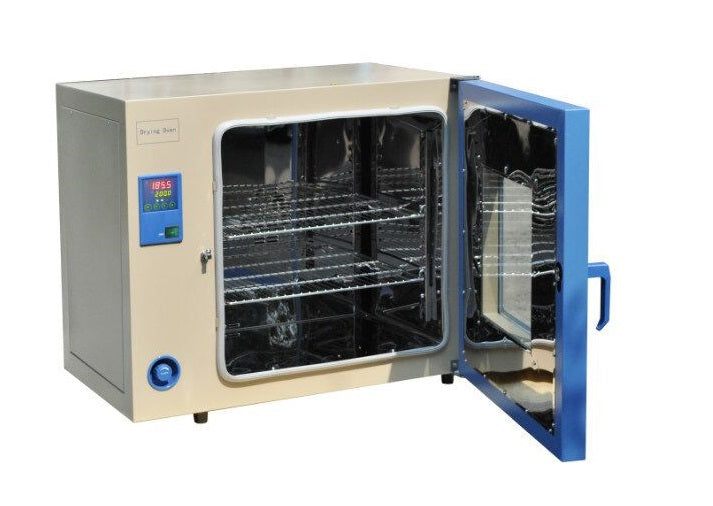

136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A
  • 136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A
  • 136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A
  • 136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A
  • 136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A
136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A

136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A

SKU: dhg9140a

Price: RFQ

Specifications

 DHG-9140A is a Convection Oven with a digital temperature controller. It can achieve dependable, uniform conditions by converting heat to the sample evenly. Such convection ovens can be widely used for drying, storing, wax-melting, and sterilization. It is a piece of ideal heating equipment for material R&D laboratories. (Replace EQ-DHG-9140V220 with larger capacity and temperature controller on the left side since Sep. 20, 2018) SPECIFICATIONS: Working Voltage 208-240VAC, Single Phase, 50/60 Hz (20A Breaker Required) Max. Power Consumption 2300W Max. Operating Temperature 250°C continuous Max. Heating Rate 10°C/min Temperature Stability < ±1.0°C Chamber Interior Material: Stainless Steel Dimensions: 450 L x 550W x 550Hmm ~ 21.6"L x 21.6" H x 17.7 "D Volume: 136 L Temperature Controller Precision digital temperature controller with +/- 1°C accuracy Sensor The overheat protection sensor automatically cuts power if over-heated Shelves 2 removable steel rack shelves, and max loading of 8 Kg per shelf Compliance CE Certified. NRTL / CSA certification is available upon request at an extra cost. Application Notes For accurate temperature recording, you shall calibrate the temperature by Temperature Calibrating Kit by yourselves, and set the temperature offset in the controller Please click here to learn How to Calibrate the oven temperature and set the temperature offset

Working Voltage 208-240VAC, Single Phase, 50/60 Hz (20A Breaker Required)
Max. Power Consumption 2300W
Max. Operating Temperature
  • 250°C continuous
Max. Heating Rate 10°C/min
Temperature Stability < ±1.0°C
Chamber
  • Interior Material: Stainless Steel

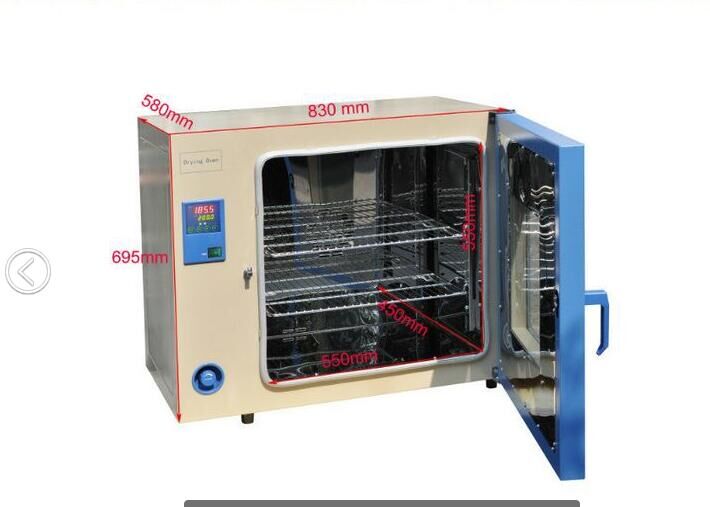

  • Dimensions: 450 L x 550W x 550Hmm ~ 21.6"L x 21.6" H x 17.7 "D
  • Volume: 136 L
Temperature Controller Precision digital temperature controller with +/- 1°C accuracy
Sensor The overheat protection sensor automatically cuts power if over-heated
Shelves 2 removable steel rack shelves, and max loading of 8 Kg per shelf
Compliance
  • CE Certified.
  • NRTL / CSA certification is available upon request at an extra cost.
Application Notes
