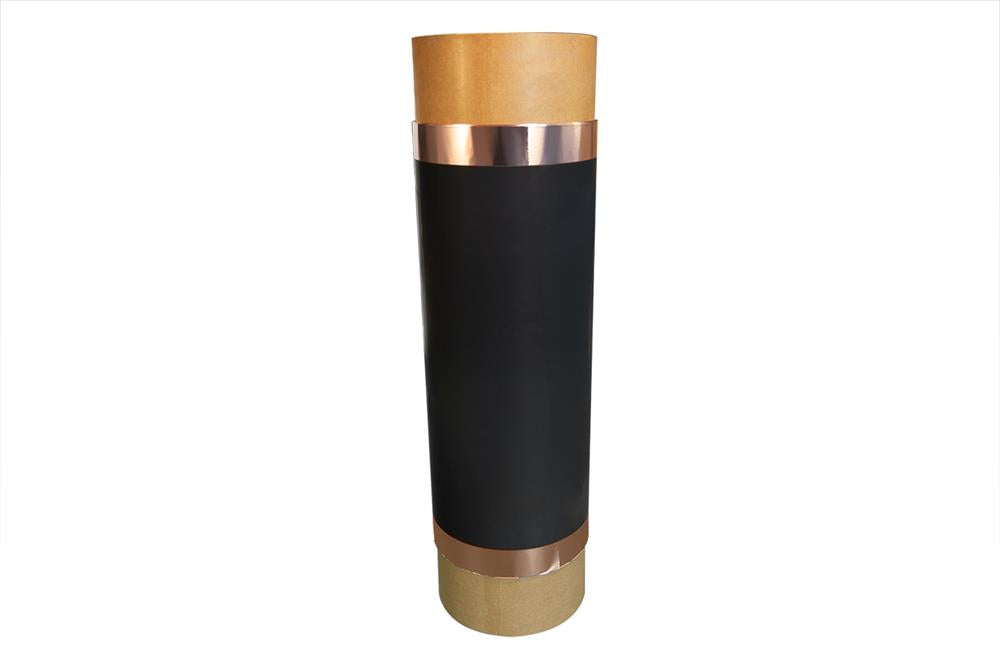

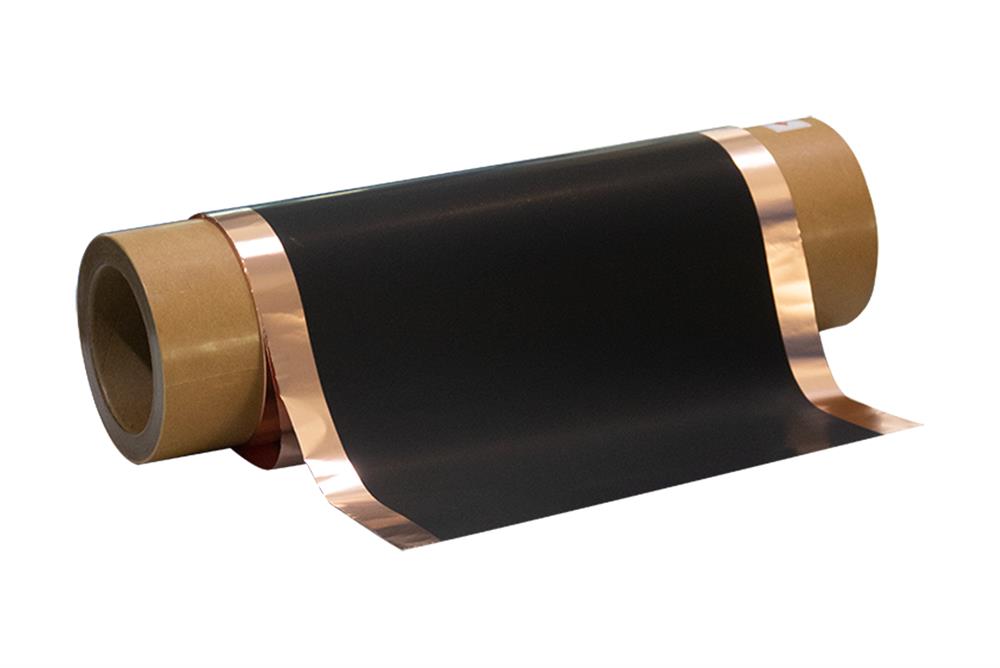

Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20

Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20

180mm
RM0.00 MYR
RM0.00 MYR
Skip to product information
Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20
  • Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20
  • Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20
Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20

Double Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 11 um thick, 1.3 kg/roll) - CCCu-20

SKU: double-side-conductive-carbon-coated-copper-foil-for-battery-anode-substrate-180mm-280mm-width-x-11-um-thick-1-3-kg-roll-cccu-20

Price: RFQ

Description

 Conductive carbon-coated copper foil can replace conventional Al foil as a better anode substrate with improved properties. Better electrical conductivity and less internal resistivity Better mechanical strength and toughness to avoid short circuit caused by dendrite growth Better coating strength with electrode material Therefore, it will provide larger discharging capability and longer service life for Li-Ion batteries SPECIFICATIONS Conductive carbon coating Double side coating with 1-micron thickness each side Density: 0.54 g/m2 Surface resistivity: < 30 ohms per 25um^2 Substrate of Copper Purity > 99.9% Thickness: 9 micron Width: 180 mm or 280 mm Carbon Coating Thickness ~1 um on each side Carbon Coating Width ~ 150 mm (180 mm, empty space at each side is 15 mm) ~ 240 mm (280 mm, empty space at each side is 20 mm) Safety Data Sheet SDS for Cu. SDS for Conductive Carbon. Package for sales 1.3 (+/-0.2) kg for roll Length 40 meter The cylinder I,D 7.5 cm Shipping In vacuum bag Note & Warning Please store moisture-sensitive consumables in the vacuum storage box, which will help prevent damages and prolong the integrity of the material. Click here for equipment selection Please always heating the sample under a vacuum oven up to 100-120 °C to remove moisture before use for better results. Please click picture right to order other battery accessories Carbon Coated Al Other Chemical Powders, Please click the video to see how MTI's slitting machine preparing electrode of cylinder batteries

Conductive carbon coating
  • Double side coating with 1-micron thickness each side
  • Density: 0.54 g/m2
  • Surface resistivity: < 30 ohms per 25um^2
Substrate of Copper
  • Purity > 99.9%
  • Thickness: 9 micron
  • Width: 180 mm or 280 mm
Carbon Coating Thickness

~1 um on each side
Carbon Coating Width

~ 150 mm (180 mm, empty space at each side is 15 mm)

~ 240 mm (280 mm, empty space at each side is 20 mm)
Safety Data Sheet SDS for Cu. SDS for Conductive Carbon.
Package for sales 1.3 (+/-0.2) kg for roll
Length 40 meter
The cylinder I,D 7.5 cm
Shipping In vacuum bag
Note & Warning
  • Please store moisture-sensitive consumables in the vacuum storage box, which will help prevent damages and prolong the integrity of the material. Click here for equipment selection
  • Please always heating the sample under a vacuum oven up to 100-120 °C to remove moisture before use for better results.
