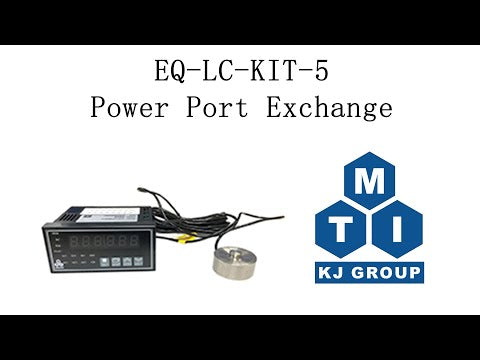

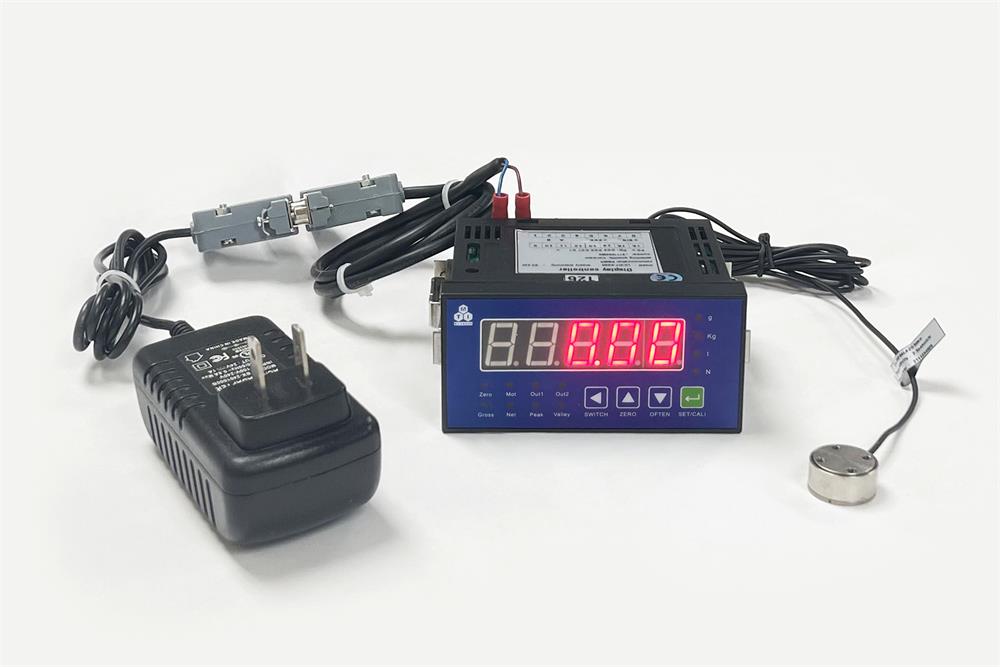

0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100
  • 0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100
  • 0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100
  • 0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100
0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100

0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100

SKU: eq-lc-kit-kg100

Price: RFQ

Specifications

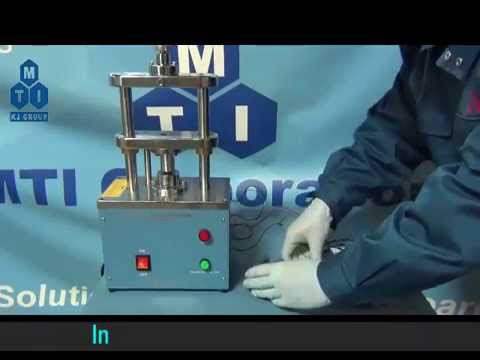

 EQ-LC-KIT-KG100 is designed to measure low pressure up to 100 kg for a small jig and pressing machine. The Digital Panel Meter is capable of being an indicator or controller of the load cell with 4-digit standard LED display. The scaling capability of the meter also allows for displaying all engineering units. The wide DC current input ranges cover typical strain applications. The front panel includes several buttons to program, zero, and record the measurement. Load Cell SPECIFICATIONS: Power Input 100 - 240VAC power adapter is pre-installed. Output 2 mV/V nominal Max Loading 100 Kg (1000N) Repeatability ±0.10% - 0.30 FSO Operating Temp Range -20 to 80 °C (-65 to 250°F) Ultimate Overload 200% of Capacity Construction Stainless Steel Dimension

Power Input
  • 100 - 240VAC power adapter is pre-installed.
Output
  • 2 mV/V nominal
Max Loading
  • 100 Kg (1000N)
Repeatability
  • ±0.10% - 0.30 FSO
Operating Temp Range
  • -20 to 80 °C (-65 to 250°F)
Ultimate Overload
  • 200% of Capacity
Construction
  • Stainless Steel
Dimension
