Hot Mounting Press for Metallographic Samples - MP300
  • Hot Mounting Press for Metallographic Samples - MP300
  • Hot Mounting Press for Metallographic Samples - MP300
  • Hot Mounting Press for Metallographic Samples - MP300
  • Hot Mounting Press for Metallographic Samples - MP300
Hot Mounting Press for Metallographic Samples - MP300

Hot Mounting Press for Metallographic Samples - MP300

SKU: eq-mp-300

Price: RFQ

Specifications

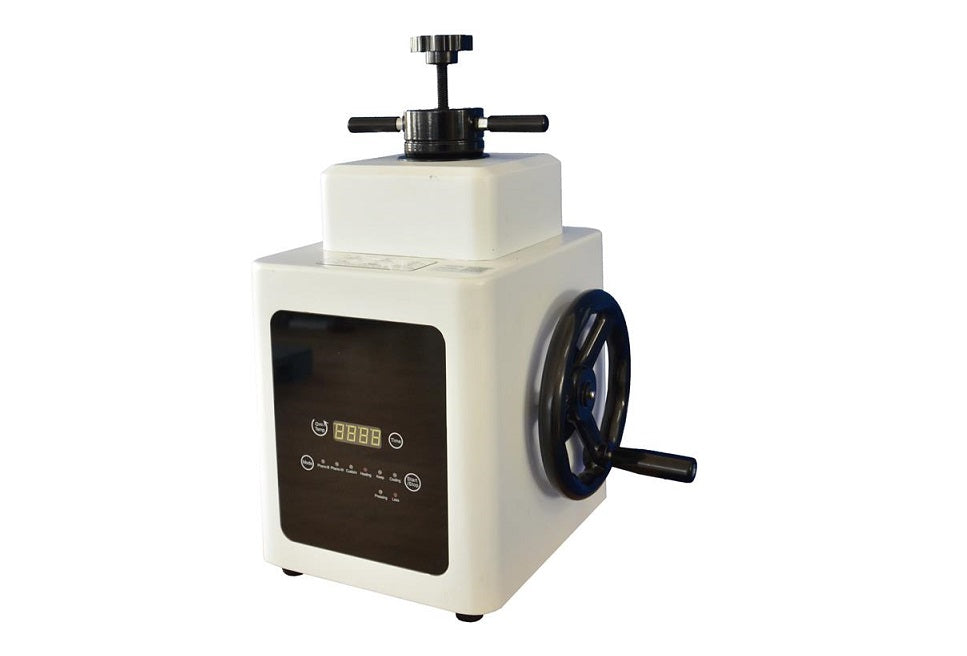

 MP300 is a hot mounting press to encapsulate samples for metallographic preparation. It produces cylindrical sample molds at Ø22 mm with optional Ø25, 30, and 45 mm. View our Small-scale Metallographic Laboratory setup SPECIFICATIONS: Power AC 208-240V 50/60Hz, 650W please get a 1500W voltage transformer to use at 110 VAC Temperature  Range 50 - 180°C Time control Range 1 - 900 second Pressure control Pressure up to 100 kg A built-in load cell for pressure control Compression Mold Standard: Ø20 mm, effective sample height < 40 mm Optional: Ø25, 30, and 45 mm Dimensions 340 x 270 x 400 mm Net weight 65 lb Shipping Weight & Dimensions 120 lbs 40" x 30" x 28" Optional Compression Mounting Powder (5 Lb) - EQ-HM-Powder5L for Phenolic B mode

Power
Temperature  Range
  • 50 - 180°C
Time control Range
  • 1 - 900 second

Pressure control
  • Pressure up to 100 kg
  • A built-in load cell for pressure control

Compression Mold
  • Standard: Ø20 mm, effective sample height < 40 mm
  • Optional: Ø25, 30, and 45 mm

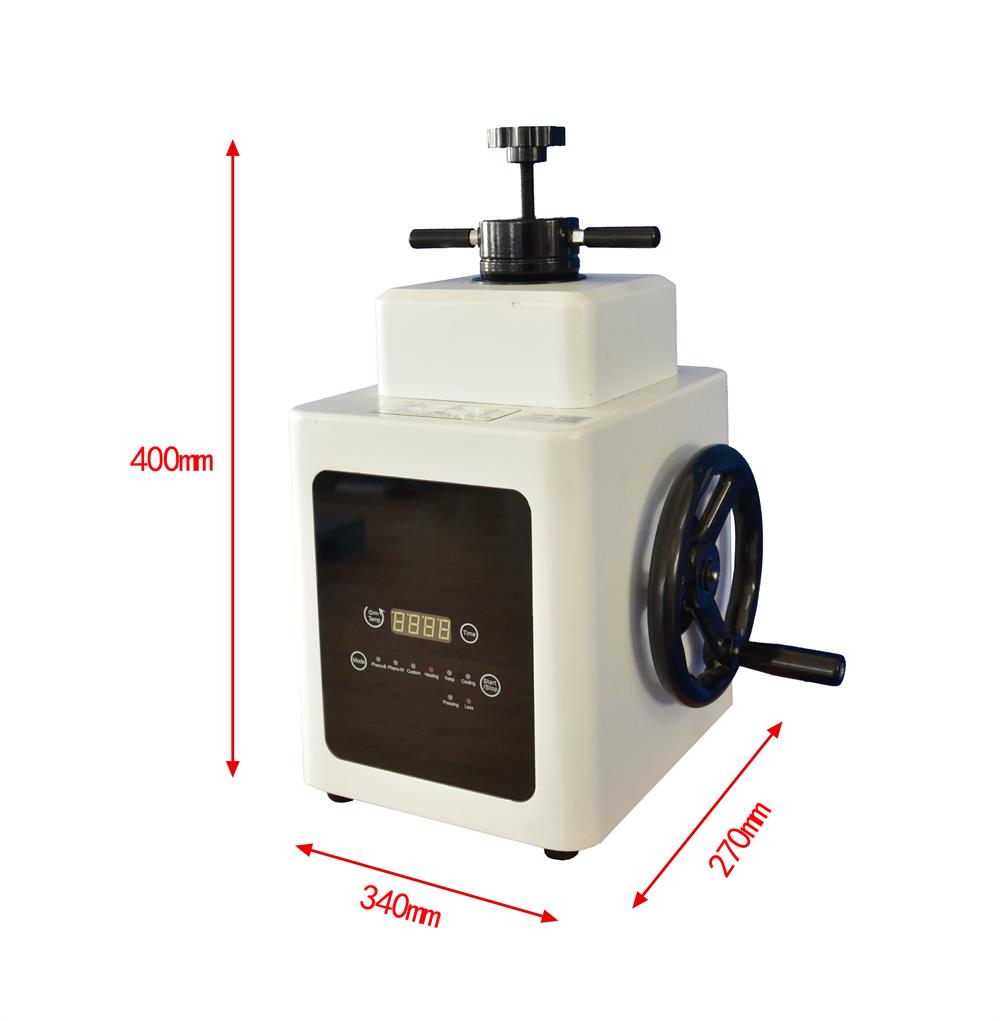

Dimensions
  • 340 x 270 x 400 mm

Net weight
  • 65 lb

Shipping Weight & Dimensions
  • 120 lbs
  • 40" x 30" x 28"




Optional
